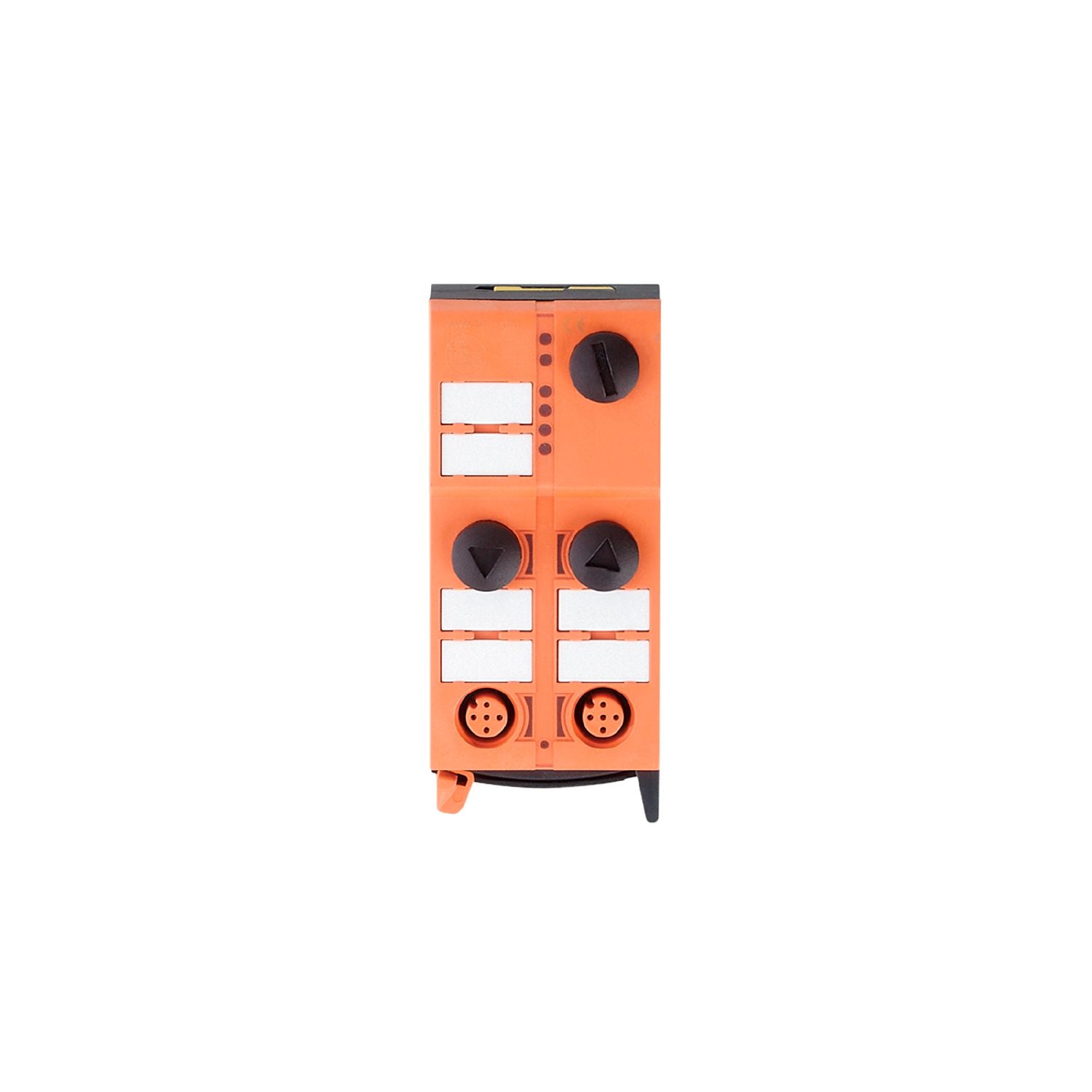

Easy toolless installation and wiring thanks to quick mounting technology. Three freely selectable directions of the flat cable. Clearly visible powerful LEDs for displaying operation, switching status and error. High protection rating for the requirements of harsh industrial environments. Robust M12 connectors for connecting sensors and actuators
Number of inputs and outputs
Number of analogue outputs: 2
Application
field installation
Operating voltage [V]
18...31.6 DC
Max. current consumption from AS-i [mA]
50
Reverse polarity protection
yes
Additional voltage supply [V]
16...30 DC;(AUX)
Inputs / outputs
Number of inputs and outputs
Number of analogue outputs: 2
Outputs
Number of analogue outputs
2;(connection of 2-wire, 3-wire and 4-wire actuators)
Analogue current output [mA]
4...20
Max. voltage drop across load for nominal current [V]
10
Resolution of analogue output
12 bit
Accuracy / deviations
Measuring error [% of the final value]
0,5
Operating conditions
Ambient temperature [°C]
-25...70
Storage temperature [°C]
-25...70
Max. relative air humidity [%]
90;(non condensing)
Max. height above sea level [m]
2000
Protection
IP 67
Pollution degree
2
Tests / approvals
EMC
EN 50295
EN 61000-6-2
EN 61000-6-3
MTTF [years]
125
UL approval
power supply
Class 2
AS-i classification
AS-i version
2.11; 3.0
Extended addressing mode
no
AS-i master profile
M3; M4
AS-i profile
S-7.3.5
AS-i I/O configuration [hex]
7
AS-i ID code [hex]
3.5
AS-i certificate
124001
Weight [g]
183
Materials
PA; piercing contacts: CuSn6 nickel-plated and tin-plated
Displays / operating elements
Display
analogue signal
LED, yellow channels AO1...AO2
operation
LED, green AS-i, AUX
errors
LED, red
Electrical connection
Module connection
Flat cables
Accessories
Items supplied
lower part
Accessories (optional)
Protective cap: M12, E73004
Remarks
There is an electrical separation between AS-i and AUX and between AS-i and the analogue outputs.
The actuator supply on pins 1 and 3 can be used to supply the actuators.
3-wire connection possible via external link.
Pack quantity
1 pcs.
Electrical connection
quick mounting technology for AS-i flat cable: ; three orientations possible
Connector:M12; coding: A
