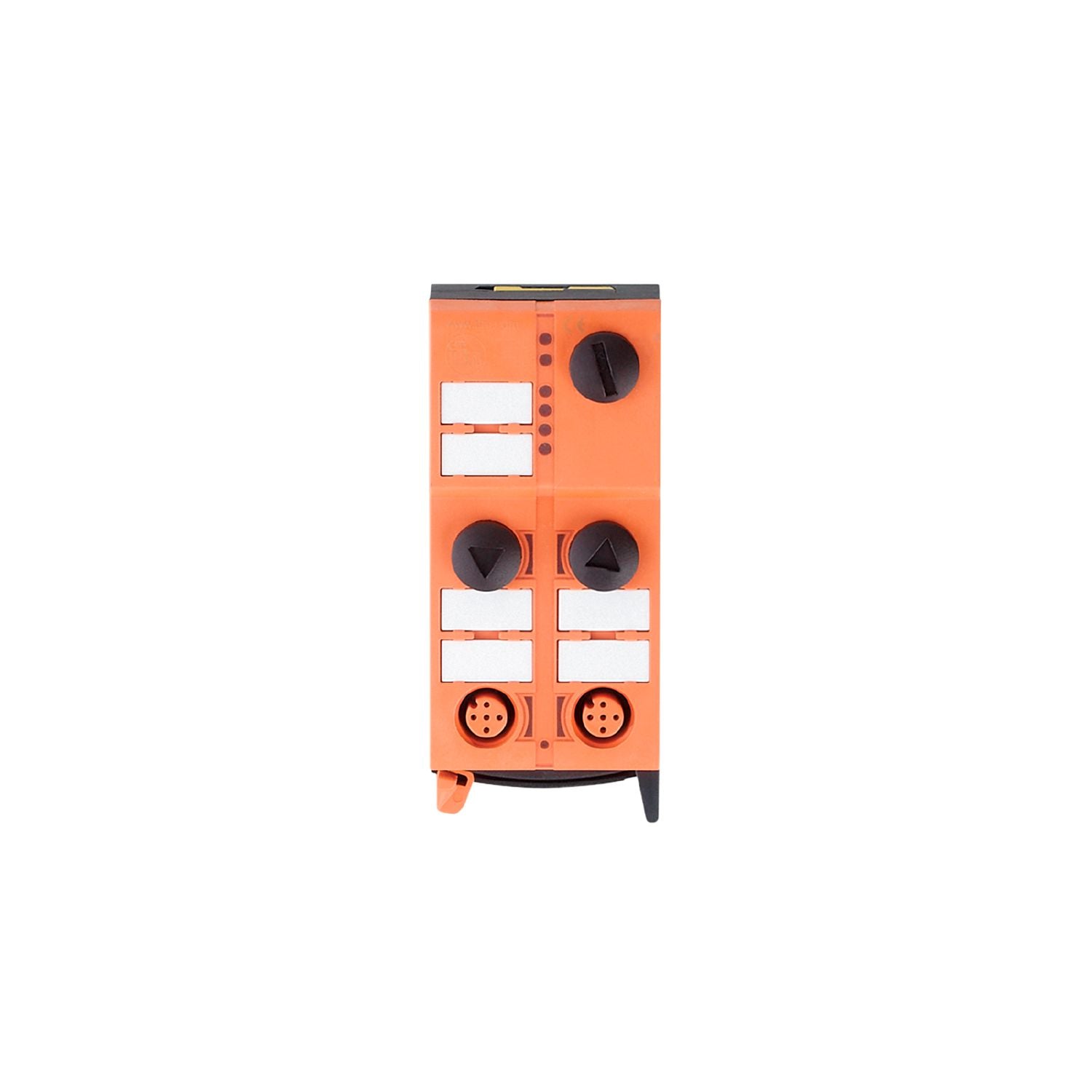

Easy toolless installation and wiring thanks to quick mounting technology. Three freely selectable directions of the flat cable. Clearly visible powerful LEDs for displaying operation, switching status and error. High protection rating for the requirements of harsh industrial environments. Robust M12 connectors for connecting sensors and actuators
Number of inputs and outputs
Number of analogue inputs: 2
Application
field installation
Operating voltage [V]
26.5...31.6 DC
Max. current consumption from AS-i [mA]
250
Reverse polarity protection
yes
Inputs / outputs
Number of inputs and outputs
Number of analogue inputs: 2
Inputs
Sensor supply of the inputs
AS-i
Number of analogue inputs
2;(connection of 2- and 3-wire sensors)
Analogue input (current) [mA]
4...20
Max. voltage drop across load for nominal voltage [V]
10
Analogue inputs protected against short circuits
yes
Resolution of analogue input
12 bit
Accuracy / deviations
Accuracy
0.5;(% of the final value of the measuring range; tolerance under the influence of electromagnetic interference: < ± 1 % of the final value of the measuring range)
Operating conditions
Ambient temperature [°C]
-25...70
Storage temperature [°C]
-25...70
Max. relative air humidity [%]
90;(non condensing)
Max. height above sea level [m]
2000
Protection
IP 67
Tests / approvals
EMC
EN 50295
MTTF [years]
174
UL approval
power supply
Class 2
AS-i classification
AS-i version
2.11; 3.0
AS-i addressing
addressing socket
Extended addressing mode
no
AS-i master profile
M3; M4
AS-i profile
S-7.3.D
AS-i I/O configuration [hex]
7
AS-i ID code [hex]
3.D
Weight [g]
176
Materials
PA; piercing contacts: CuSn6 nickel-plated and tin-plated
Displays / operating elements
Display
analogue signal
LED, yellow channels AI1...AI2
operation
LED, green AS-i
errors
LED, red
Electrical connection
Module connection
Flat cables
Accessories
Items supplied
lower part
Accessories (optional)
Protective cap: M12, E73004
Remarks
When the actuators are supplied from AS-i the load must not exceed a maximum of 200 mA.
There is an electrical connection between the sensor and AS-i.
The module is exclusively supplied via the yellow AS-i cable.
Pack quantity
1 pcs.
Electrical connection
quick mounting technology for AS-i flat cable: ; three orientations possible
Connector:M12; coding: A
