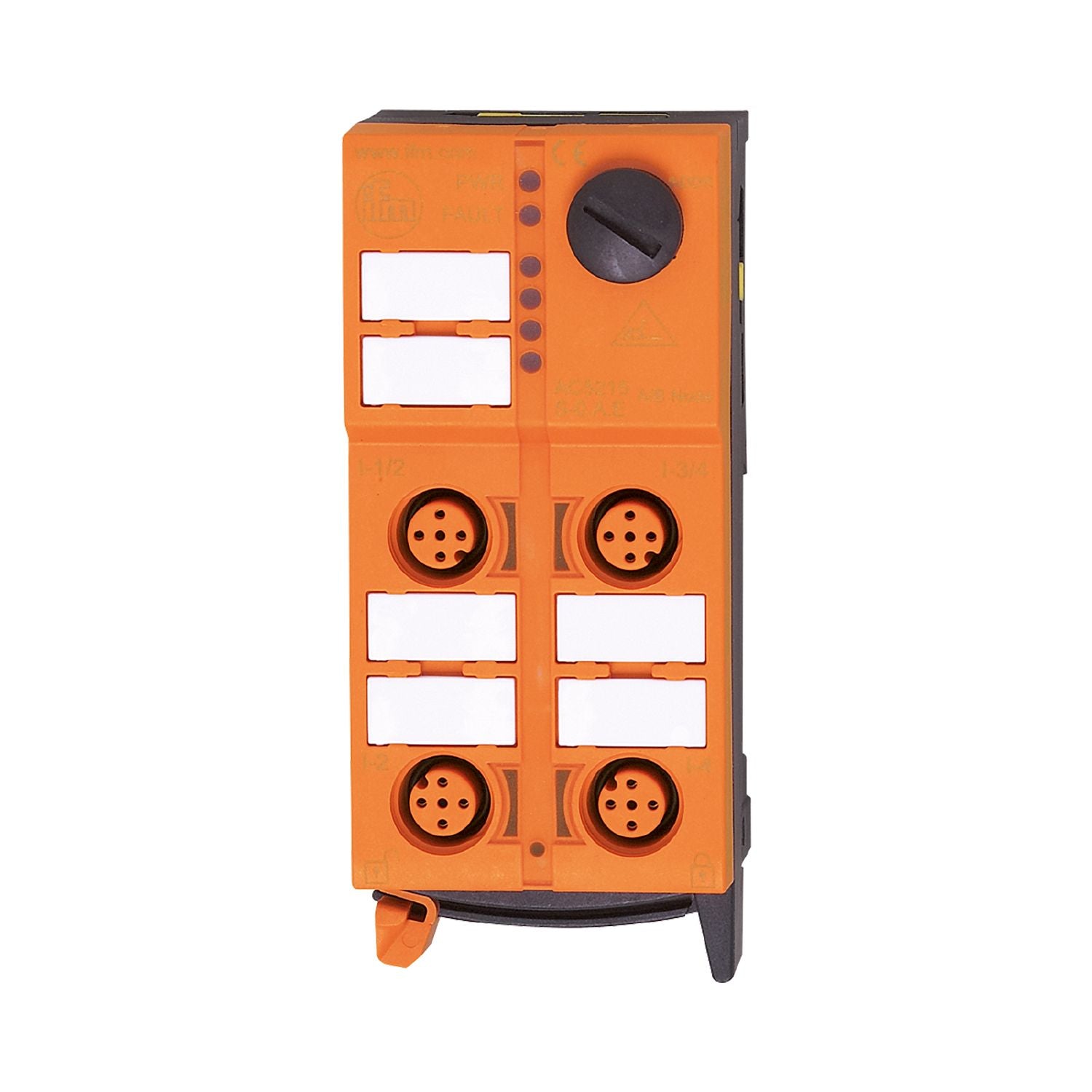

IFM AC5224 - AS-Interface ClassicLine module with quick mounting technology ClassicL 2DO-Y 2DI-Y IP67

Easy toolless installation and wiring thanks to quick mounting technology.
Three freely selectable directions of the flat cable.
Clearly visible powerful LEDs for displaying operation, status and function.
High protection rating for the requirements of harsh industrial environments.
Robust M12 connectors for connecting sensors and actuators

Application	field installation

Operating voltage [V]	26.5...31.6 DC;("supply class 2" to cULus)
Max. current consumption from AS-i [mA]	250
Max. current load total [A]	0.2
Integrated watchdog	yes

Inputs / outputs

Number of inputs and outputs	Number of digital inputs: 2; Number of digital outputs: 2

Inputs

Number of digital inputs	2
Input circuit of digital inputs	PNP
Sensor supply of the inputs	AS-i
Power supply [V]	18...30
Max. total current rating of inputs [mA]	200;(current load for all inputs and outputs: 200 mA)
Input current High [mA]	6...10
Input current Low [mA]	0...2
Switching level high [V]	> 11
Digital inputs protected against short circuits	yes

Outputs

Number of digital outputs	2
Circuit	PNP
Voltage range DC [V]	18...30
Max. current load per output [mA]	200;(current load for all inputs and outputs: 200 mA)
Short-circuit proof	yes
Electrically separated	no
Actuator supply outputs	AS-i

Operating conditions

Ambient temperature [°C]	-25...70
Protection	IP 67

Tests / approvals

EMC	EN 50295 IEC 61000-6-2
MTTF [years]	318

AS-i classification

AS-i version	2.11; 3.0
AS-i addressing	addressing socket
Extended addressing mode	yes
AS-i master profile	M2; M3; M4
AS-i profile	S-B.A.E
AS-i I/O configuration [hex]	B
AS-i ID code [hex]	A.E
Assignment of the data bits	data bit D0 D1 D2 D3 input - - 3 4 socket - - I-3/4 I-3/4 I-4 pin - - 4 2 4 Output 1 2 - - socket O-1/2 O-1/2 / O-2 - - pin 4 2 4 - -

Weight [g]	155.95
Materials	PA; piercing contacts: CuSn6 nickel-plated and tin-plated

Displays / operating elements

Display	operation LED, green errors LED, red function LED, yellow

Electrical connection

Module connection	Flat cables

Accessories

Items supplied	lower part
Accessories (optional)	Protective cap: M12, E73004

Pack quantity	1 pcs.

Electrical connection

	quick mounting technology for AS-i flat cable: ; three orientations possible

Electrical connection - Inputs

Connection	Connector:M12

Electrical connection - Outputs

Connection	Connector:M12

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — AC5224-00 — 24.01.2024 —
