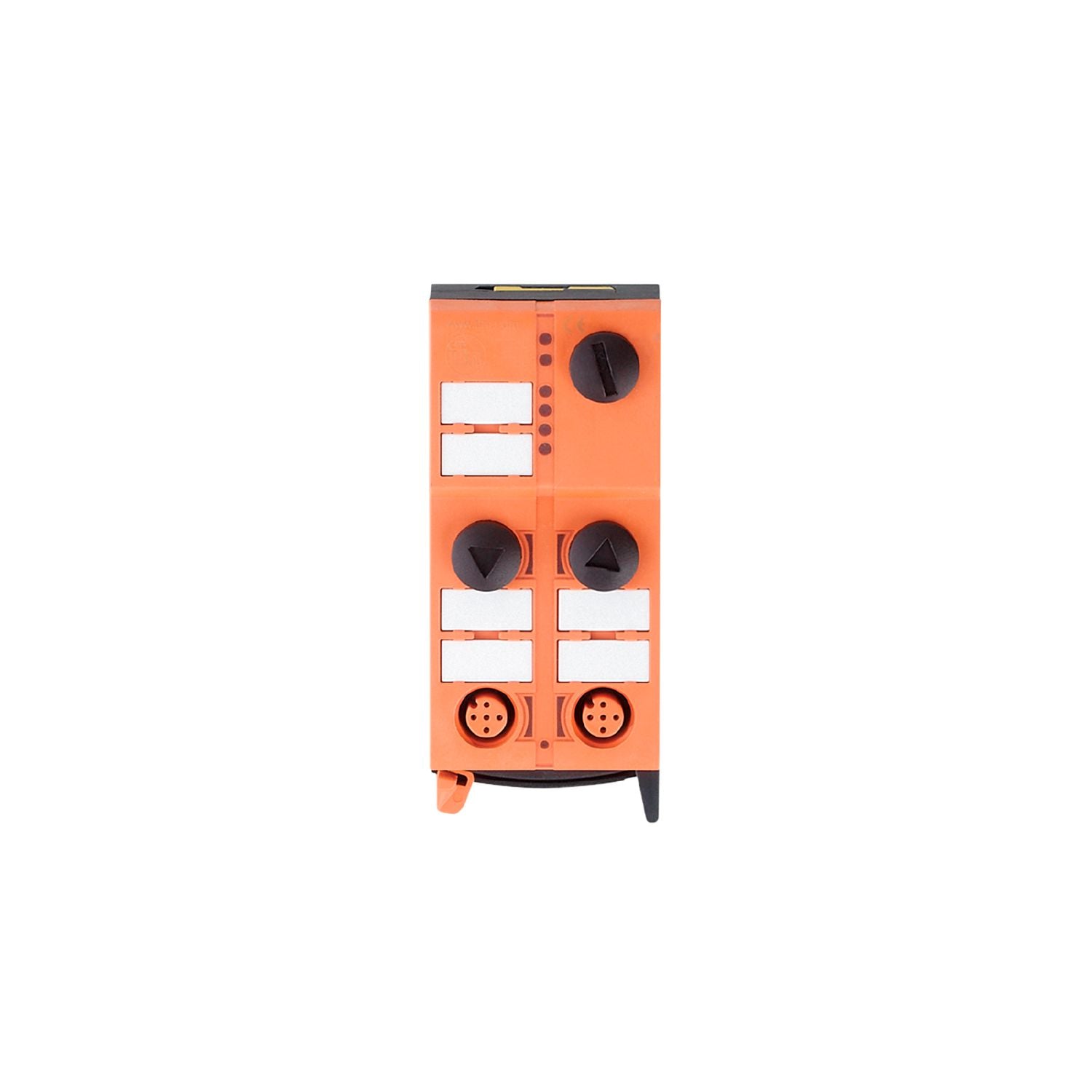

Easy toolless installation and wiring thanks to quick mounting technology. Three freely selectable directions of the flat cable. Clearly visible powerful LEDs for displaying operation, switching status and error. High protection rating for the requirements of harsh industrial environments. Robust M12 connectors for connecting sensors and actuators
Design
only for operation with AS-i masters with the profile M4
Application
field installation
Operating voltage [V]
26.5...31.6 DC
Max. current consumption from AS-i [mA]
300
Reverse polarity protection
yes
Additional voltage supply [V]
20...30 DC
Inputs
Sensor supply of the inputs
AS-i
Digital inputs protected against short circuits
yes
Interfaces
Communication interface
IO-Link; AS-i
IO-Link Device
Min. process cycle time [ms]
2.3
IO-Link Master
Transmission type
COM1 (4,8 kBaud); COM2 (38,4 kBaud)
IO-Link revision
1.0
Number of ports class A
2
Operating conditions
Ambient temperature [°C]
-25...70
Protection
IP 67
Tests / approvals
EMC
EN 50295
MTTF [years]
149
AS-i classification
AS-i version
3.0
AS-i addressing
addressing socket
Extended addressing mode
no
AS-i master profile
M4
AS-i profile
S-7.5.5
AS-i I/O configuration [hex]
7
AS-i ID code [hex]
5.5
Weight [g]
161.35
Materials
PA; piercing contacts: CuSn6 nickel-plated and tin-plated
Displays / operating elements
Display
operation
PWR LED, green Voltage AS-i
errors
LED, red
switching status
LED, yellow DI/DO Port 1, Port 2
communication
LED, green IO-Link Port 1, Port 2
disturbed communication
LED, red Port 1, Port 2
Electrical connection
Module connection
Flat cables
Accessories
Items supplied
lower part
Accessories (optional)
Protective cap: M12, E73004
Remarks
When the sensors and actuators are supplied from AS-i the load must not exceed a maximum of 200 mA.
There is an electrical connection between the sensor and AS-i.
operating voltage "supply class 2" according to cULus
Pack quantity
1 pcs.
Electrical connection
quick mounting technology for AS-i flat cable: ; three orientations possible
Connector:M12; coding: A
