Easy toolless installation and wiring thanks to quick mounting technology. Three freely selectable directions of the flat cable. Clearly visible powerful LEDs for displaying operation, switching status and error. For applications in hazardous areas. Robust M12 connectors for connecting sensors and actuators
Application

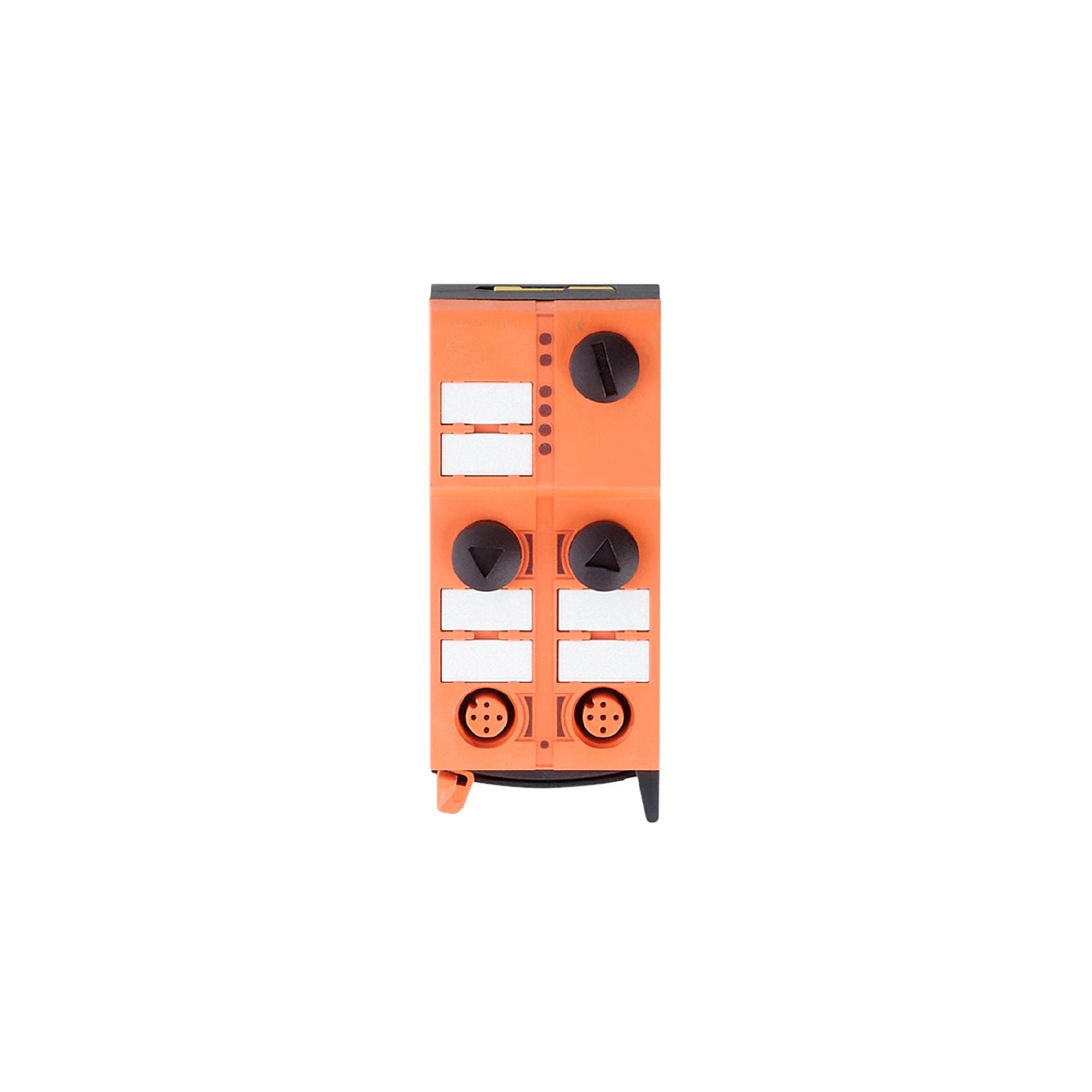

AS-i ATEX module
Operating voltage [V]
26.5...31.6 DC
Max. current consumption from AS-i [mA]
250
Reverse polarity protection
yes
Inputs / outputs
Number of inputs and outputs
Number of analogue inputs: 2
Inputs
Sensor supply of the inputs
AS-i
Number of analogue inputs
2;(Anschluss von 2- und 3-Draht-Sensoren)
Analogue input (current) [mA]
4...20
Analogue inputs protected against short circuits
yes
Resolution of analogue input
12 bit
Operating conditions
Ambient temperature [°C]
-10...50
Protection
IP 50
Tests / approvals
ATEX marking
II 3D Ex tc IIIB T80°C Dc X IP50
EMC
EN 50295
MTTF [years]
174
AS-i classification
AS-i version
2.11; 3.0
AS-i addressing
addressing socket
Extended addressing mode
no
AS-i master profile
M3; M4
AS-i profile
S-7.3.D
AS-i I/O configuration [hex]
7
AS-i ID code [hex]
3.D
AS-i certificate pending
yes
Weight [g]
233
Type of mounting
AS-i flat cables directly connectable
Materials
PA; piercing contacts: CuSn6 nickel-plated and tin-plated
Displays / operating elements
Display
operation
LED, green Voltage AS-i
errors
LED, red
function
LED, yellow channels AI1, AI2
Electrical connection
Module connection
Flat cables
Accessories
Items supplied
lower part
Accessories (optional)
Protective cap: M12, E73004
Impact protection housing:, E7000A
Remarks
Mechanical protection has to be implemented.
Otherwise the unit must be installed together with the impact protection housing (E7000A).
When the actuators are supplied from AS-i the load must not exceed a maximum of 200 mA.
There is an electrical connection between the sensor and AS-i.
Pack quantity
1 pcs.
Electrical connection
quick mounting technology for AS-i flat cable: ; three orientations possible
