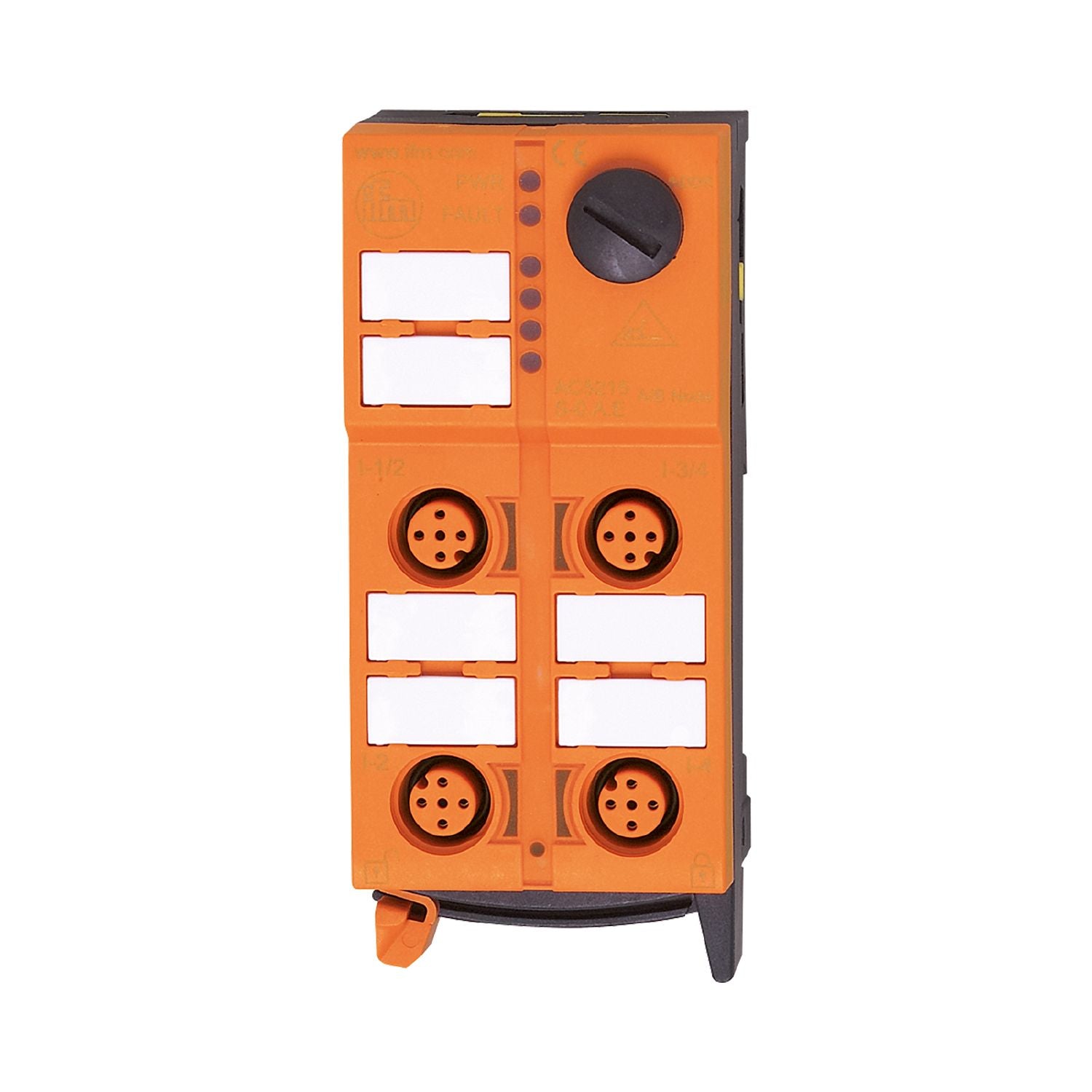

Easy toolless installation and wiring thanks to quick mounting technology. Three freely selectable directions of the flat cable. Clearly visible powerful LEDs for displaying operation, switching status and error. High protection rating for the requirements of harsh industrial environments. Robust M12 connectors for connecting sensors and actuators
Number of inputs and outputs
Number of digital inputs: 2; Number of analogue inputs: 1; Number of analogue outputs: 1
Design
only for operation with AS-i masters with the profile M4
Application
field installation
Operating voltage [V]
26.5...31.6 DC
Max. current consumption from AS-i [mA]
250
Reverse polarity protection
yes
Max. current load total [A]
0.2
Inputs / outputs
Number of inputs and outputs
Number of digital inputs: 2; Number of analogue inputs: 1; Number of analogue outputs: 1
Inputs
Number of digital inputs
2
Input circuit of digital inputs
PNP
Sensor supply of the inputs
AS-i
Power supply [V]
18...30;(DC)
Number of analogue inputs
1;(connection of 2-wire, 3-wire and 4-wire sensors)
Analogue input (current) [mA]
4...20
Max. voltage drop across load for nominal voltage [V]
10
Analogue inputs protected against short circuits
yes
Resolution of analogue input
12 bit
Outputs
Number of analogue outputs
1;(connection of 2-wire, 3-wire and 4-wire actuators)
Analogue current output [mA]
4...20
Max. voltage drop across load for nominal current [V]
10
Resolution of analogue output
12 bit
Actuator supply outputs
AS-i
Accuracy / deviations
Measuring error [% of the final value]
0,5
Operating conditions
Ambient temperature [°C]
-25...70
Storage temperature [°C]
-25...70
Max. relative air humidity [%]
90;(non condensing)
Max. height above sea level [m]
2000
Protection
IP 67
Tests / approvals
EMC
EN 50295
IEC 61000-6-2
MTTF [years]
137
UL approval
power supply
Class 2
AS-i classification
AS-i version
3.0
Extended addressing mode
no
AS-i master profile
M4
AS-i profile
S-7.5.5
AS-i I/O configuration [hex]
7
AS-i ID code [hex]
5.5
Weight [g]
162.6
Materials
PA; piercing contacts: CuSn6 nickel-plated and tin-plated
Displays / operating elements
Display
analogue signal
LED, yellow channels AI1, AO1
switching status
LED, yellow channels I1...I2
operation
LED, green AS-i
errors
LED, red
Electrical connection
Module connection
Flat cables
Accessories
Items supplied
lower part
Accessories (optional)
Protective cap: M12, E73004
Remarks
3-wire connection possible via external link.
The actuator supply on pins 1 and 3 can be used to supply the sensors / actuators.
In this case, an electrical isolation to AS-i is not given.
The analogue inputs and outputs (pins 2 and 4) are electrically separated and have no connection to AS-i.
Do not connect any of the following points to an external potential:
I-1/2, I-2, Pin 1, Pin 3
The connections are electrically connected with the AS-i cable.
Pack quantity
1 pcs.
Electrical connection
; Maximum cable length: 30 m
Electrical connection - analogue
Connector:M12; coding: A; Maximum cable length: 30 m
Electrical connection - digital
Connection
Connector:M12; coding: A; Maximum cable length: 30 m
