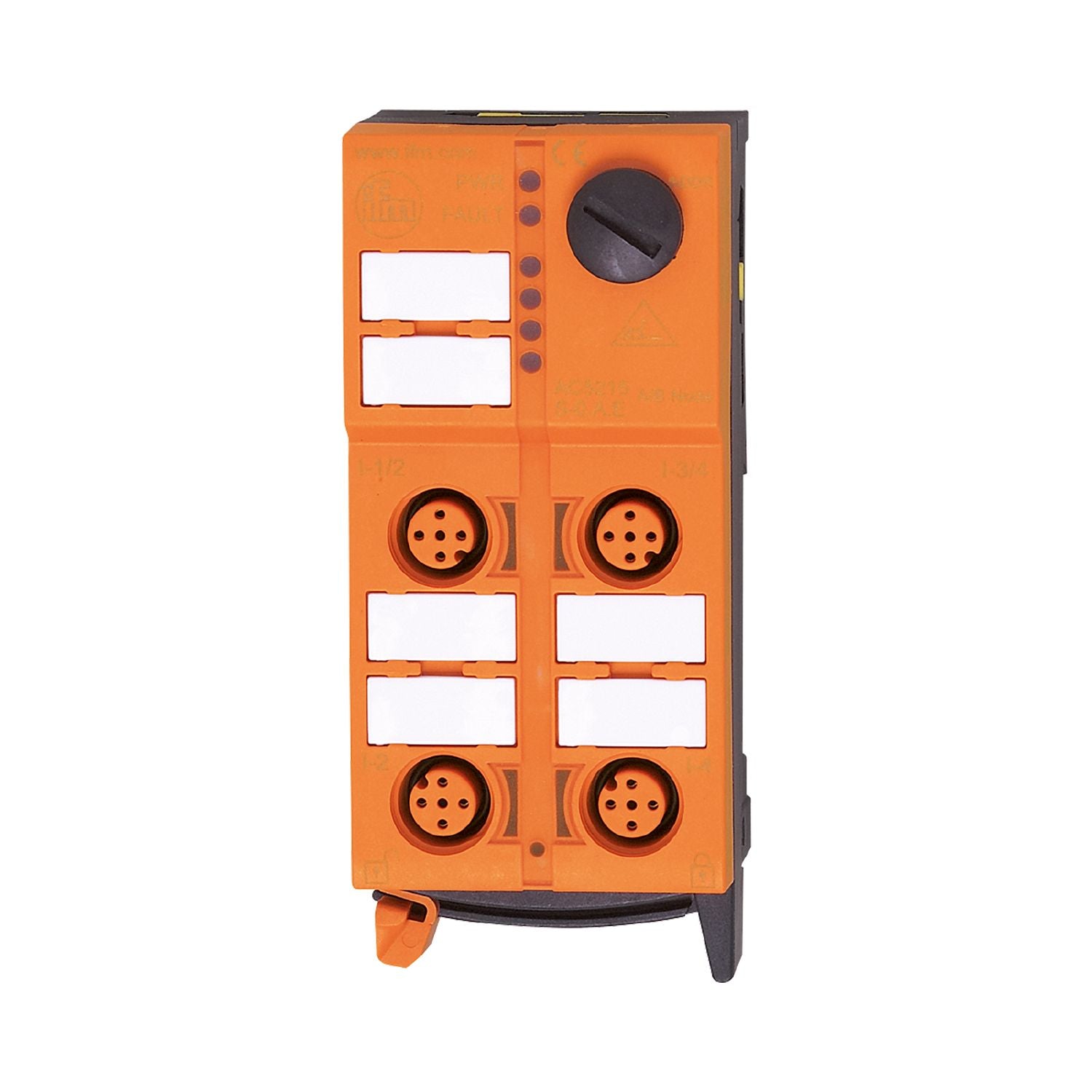

IFM AC5290 - AS-Interface ClassicLine module with quick mounting technology ClassicLine 4DI-Y AUX IP67

Easy toolless installation and wiring thanks to quick mounting technology.
Three freely selectable directions of the flat cable.
Clearly visible powerful LEDs for displaying operation, switching status and error.
High protection rating for the requirements of harsh industrial environments.
Robust M12 connectors for connecting sensors and actuators

Application	field installation

Operating voltage [V]	26.5...31.6 DC;("supply class 2" to cULus)
Max. current consumption from AS-i [mA]	30

Inputs / outputs

Number of inputs and outputs	Number of digital inputs: 4

Inputs

Number of digital inputs	4
Input circuit of digital inputs	PNP
Sensor supply of the inputs	AUX
Power supply [V]	20...30;(via flat cable)
Max. total current rating of inputs [mA]	1000
Input current High [mA]	6...10
Input current Low [mA]	0...2
Switching level high [V]	> 11
Digital inputs protected against short circuits	yes

Operating conditions

Ambient temperature [°C]	-25...70
Protection	IP 67

Tests / approvals

EMC	EN 50295 IEC 61000-6-2
MTTF [years]	225

AS-i classification

AS-i version	2.11; 3.0
AS-i addressing	addressing socket
Extended addressing mode	yes
AS-i master profile	M2; M3; M4
AS-i profile	S-0.A.E
AS-i I/O configuration [hex]	0
AS-i ID code [hex]	A.E
Assignment of the data bits	data bit D0 D1 D2 D3 input 1 2 3 4 socket I-1/2 I-1/2 I-2 I-3/4 I-3/4 I-4 pin 4 2 4 4 2 4
Assignment of the parameter bits	parameter bit Designation P0 not used P1 peripheral fault indication : 1 activated * / 0 deactivated P2 not used P3 not used

Weight [g]	173
Type of mounting	AS-i flat cables directly connectable
Materials	PA; piercing contacts: CuSn6 nickel-plated and tin-plated

Displays / operating elements

Display	operation LED, green Voltage AUX > 7 V errors LED, red AUX 15 V ± 2 V function LED, yellow

Electrical connection

Module connection	Flat cables

Accessories

Items supplied	lower part
Accessories (optional)	Protective cap: M12, E73004

Pack quantity	1 pcs.

Electrical connection

Connection	quick mounting technology for AS-i flat cable: ; three orientations possible
Connection	Connector:M12
