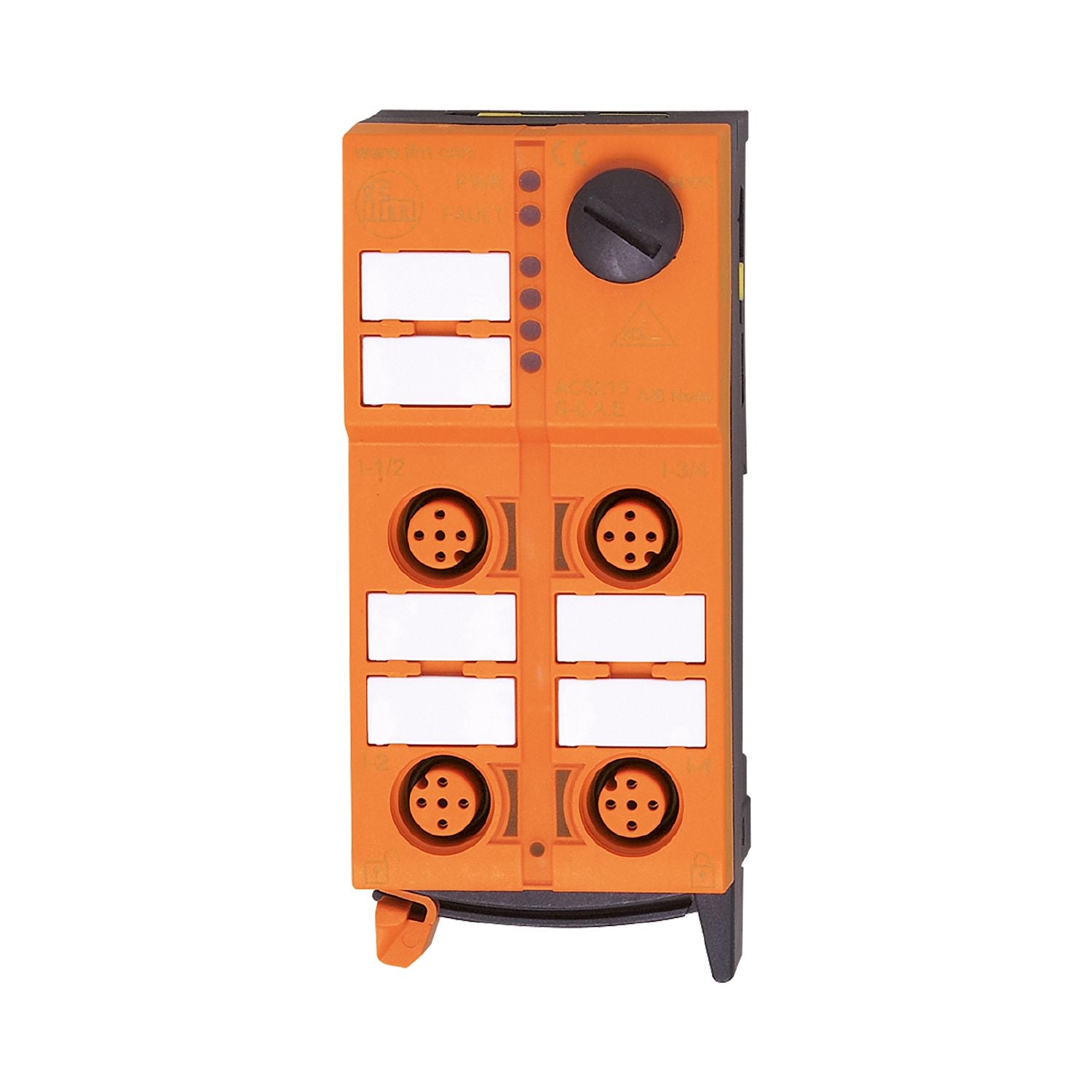

Easy toolless installation and wiring thanks to quick mounting technology. Three freely selectable directions of the flat cable. Clearly visible powerful LEDs for displaying operation, switching status and error. High protection rating for the requirements of harsh industrial environments. Robust M12 connectors for connecting sensors and actuators
Application
field installation
Operating voltage [V]
26.5...31.6 DC;("supply class 2" to cULus)
Max. current consumption from AS-i [mA]
250
Inputs / outputs
Number of inputs and outputs
Number of digital inputs: 4
Inputs
Number of digital inputs
4
Input circuit of digital inputs
PNP
Sensor supply of the inputs
AS-i
Power supply [V]
18...30;(via flat cable)
Max. total current rating of inputs [mA]
200
Input current High [mA]
6...10
Input current Low [mA]
0...2
Switching level high [V]
> 11
Digital inputs protected against short circuits
yes
Operating conditions
Ambient temperature [°C]
-25...70
Protection
IP 67
Tests / approvals
EMC
EN 50295
IEC 61000-6-2
AS-i classification
AS-i version
2.11; 3.0
AS-i addressing
addressing socket
Extended addressing mode
yes
AS-i master profile
M2; M3; M4
AS-i profile
S-0.A.E
AS-i I/O configuration [hex]
0
AS-i ID code [hex]
A.E
Assignment of the data bits
data bit
D0
D1
D2
D3
input
1
2
3
4
socket
I-1
I-2
I-3
I-4
pin
2+4
2+4
2+4
2+4
Weight [g]
155.9
Type of mounting
AS-i flat cables directly connectable
Materials
PA; piercing contacts: CuSn6 nickel-plated and tin-plated
Displays / operating elements
Display
operation
LED, green
errors
LED, red
function
LED, yellow
Electrical connection
Module connection
Flat cables
Accessories
Items supplied
lower part
Accessories (optional)
Addressing cable:, E70213
Protective cap: M12, E73004
Remarks
Do not connect any of the following points to an external potential:
I-, I+, I1, I2, I3, I4
The connections are electrically connected with the AS-i cable.
Pack quantity
1 pcs.
Electrical connection
quick mounting technology for AS-i flat cable: ; three orientations possible
Connector:M12; coding: A
