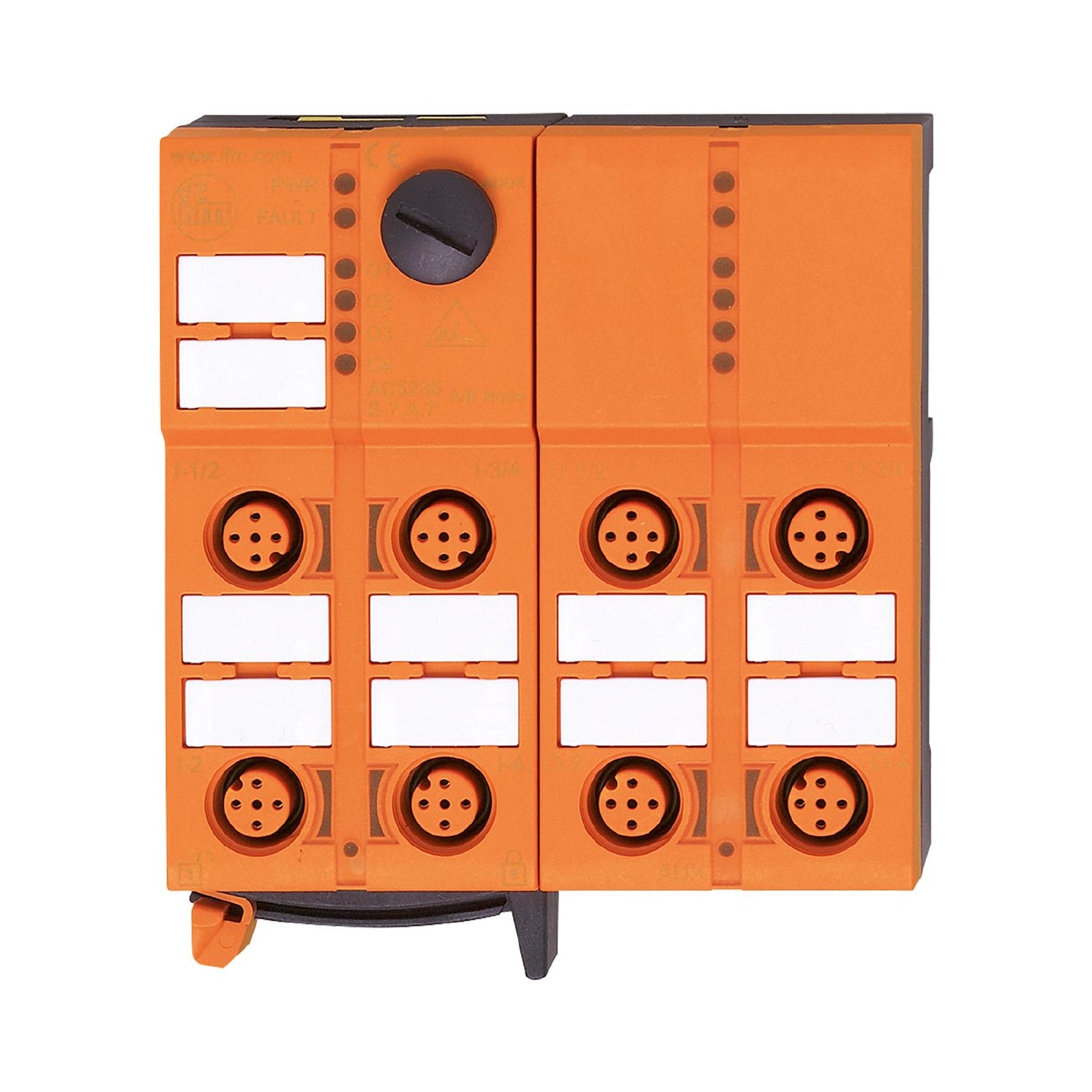

Easy toolless installation and wiring thanks to quick mounting technology. Three freely selectable directions of the flat cable. Clearly visible powerful LEDs for displaying operation, status and function. For applications in hazardous areas. Robust M12 connectors for connecting sensors and actuators
Design
only for operation with AS-i masters with the profile M4
Application
AS-i ATEX module
Operating voltage [V]
26.5...31.6 DC
Max. current consumption from AS-i [mA]
250
Max. current load total [A]
2
Integrated watchdog
yes
Inputs / outputs
Number of inputs and outputs
Number of digital inputs: 4; Number of digital outputs: 4
Inputs
Number of digital inputs
4
Input circuit of digital inputs
PNP
Sensor supply of the inputs
AS-i
Power supply [V]
18...30;(via flat cable)
Max. total current rating of inputs [mA]
200
Input current High [mA]
6...10
Input current Low [mA]
0...2
Switching level high [V]
> 11
Digital inputs protected against short circuits
yes
Outputs
Number of digital outputs
4
Circuit
PNP
Voltage range DC [V]
15...30;(to PELV; via flat cable)
Max. current load per output [mA]
1000;(utilisation category DC-13 (control of electromagnets): 20 W (IEC 60947-5-1))
Short-circuit proof
yes
Electrically separated
yes
Operating conditions
Ambient temperature [°C]
-10...50
Protection
IP 50
Tests / approvals
ATEX marking
II 3D Ex tc IIIB T80°C Dc X IP50
EMC
EN 50295
IEC 61000-6-2
MTTF [years]
155
AS-i classification
AS-i version
3.0
AS-i addressing
addressing socket
Extended addressing mode
yes
AS-i master profile
M4
AS-i profile
S-7.A.7
AS-i I/O configuration [hex]
7
AS-i ID code [hex]
A.7
AS-i certificate pending
yes
Assignment of the data bits
data bit
D0
D1
D2
D3
input
1
2
3
4
socket
I-1/2
I-1/2 I-2
I-3/4
I-3/4 I-4
pin
4
2 4
4
2 4
Output
1
2
3
4
socket
O-1/2
O-1/2 O2
O-3/4
O-3/4 O-4
pin
4
2 4
4
2 4
Weight [g]
322
Type of mounting
AS-i flat cables directly connectable
Materials
PA; piercing contacts: CuSn6 nickel-plated and tin-plated
Displays / operating elements
Display
operation
LED, green
errors
LED, red
function
LED, yellow
Electrical connection
Module connection
Flat cables
Accessories
Items supplied
lower part
Accessories (optional)
Protective cap: M12, E73004
Impact protection housing:, E7000A
Remarks
Mechanical protection has to be implemented.
Otherwise the unit must be installed together with the impact protection housing (E7000A).
Do not connect any of the following points to an external potential:
I-, I+, I1, I2, I3, I4
The connections are electrically connected with the AS-i cable.
Inputs and outputs must be electrically isolated.
Pack quantity
1 pcs.
Electrical connection
quick mounting technology for AS-i flat cable: ; three orientations possible
