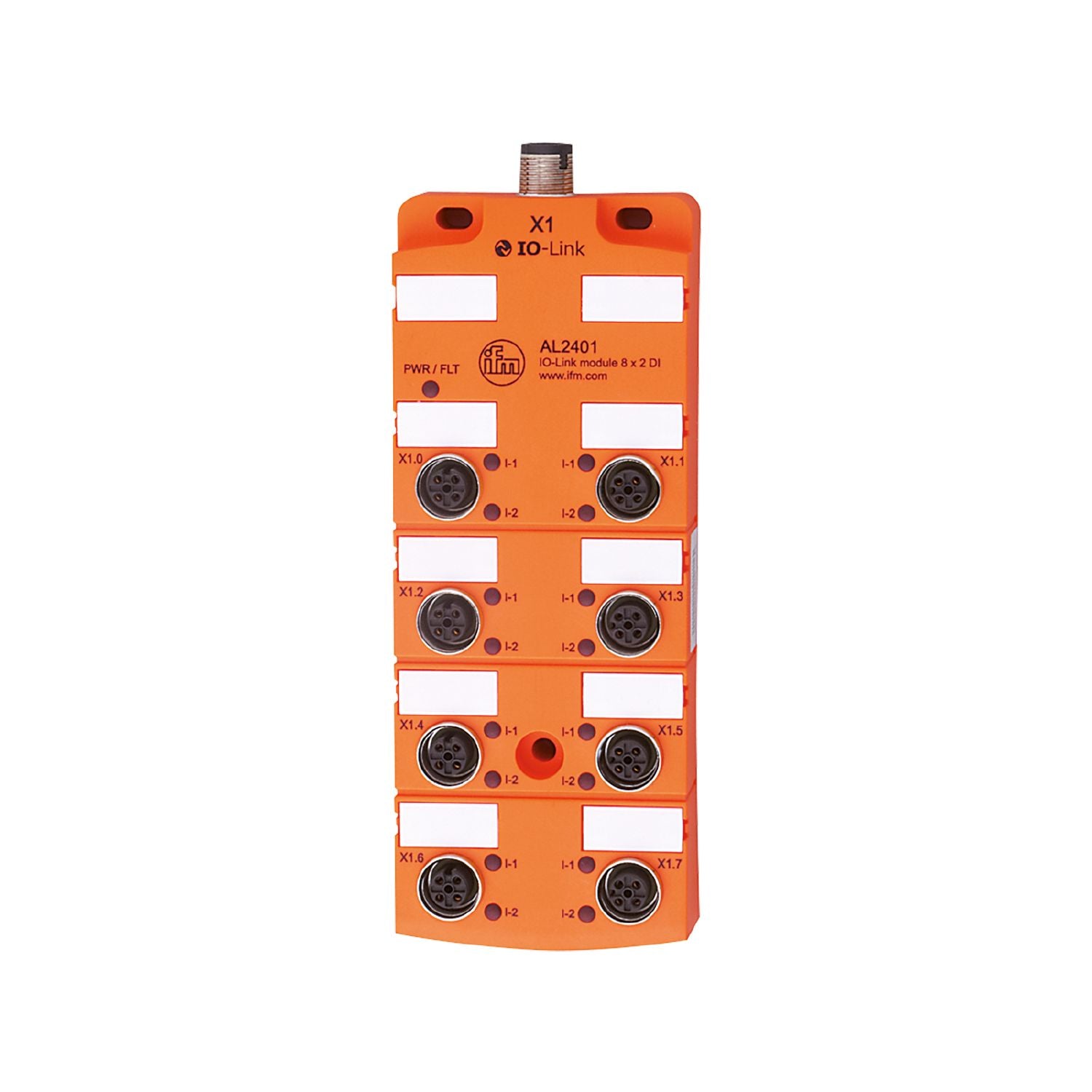

Data and energy transmission also possible with unscreened connection cable. Clearly visible LEDs for displaying operation, switching status and error. Eight ports with two binary inputs each for sixteen sensors. Robust design with full potting for use in harsh industrial environments
Operating voltage [V]
18...30 DC;("supply class 2" to cULus)
Current consumption [mA]
< 50
Sensor supply US
Current rating per port [A]
0.1
Inputs / outputs
Number of inputs and outputs
Number of digital inputs: 16
Inputs
Number of digital inputs
16;(8 x 2)
Input circuit of digital inputs
PNP
Sensor supply of the inputs
IO-Link
Input current limitation [mA]
15
Input current High [mA]
6...10
Input current Low [mA]
0...2
Switching level high [V]
> 11
Digital inputs protected against short circuits
yes
Interfaces
Communication interface
IO-Link
Supported DeviceIDs
Type of operation
DeviceID
default
555
IO-Link Device
Transmission type
COM2 (38,4 kBaud)
IO-Link revision
1.1
SDCI standard
IEC 61131-9
SIO mode
no
Process data analogue
1
Process data binary
24
Min. process cycle time [ms]
2.9
Operating conditions
Ambient temperature [°C]
-25...70
Protection
IP 67
Protection rating (NEMA 250)
6P
Chemical media
ISO 16750-5
AA, BA, BD, HLP, CC, DB, DC, DD, CA
NEMA 250 5.13.1
AA
Tests / approvals
EMC
EN 61000-6-2
EN 61000-6-3
IEC 61131-9
MTTF [years]
164
Weight [g]
382.5
Materials
PA; socket: brass nickel-plated; O-ring: FKM
Sealing material
FKM
Displays / operating elements
Display
operation
LED, green
errors
LED, red
function
LED, yellow
Accessories
Accessories (optional)
Stainless steel sleeve, for installation in case of high mechanical stress , E70402
Remarks
For use in NFPA 79 applications only
The device is to be operated to IO-Link specification V1.1.2.
The maximum cable length of the IO-Link cable is 20 m.
Pack quantity
1 pcs.
Electrical connection - IO-Link
Connector:M12; coding: A
Electrical connection - Process connection
Connector:M12; coding: A; Sealing: FKM
