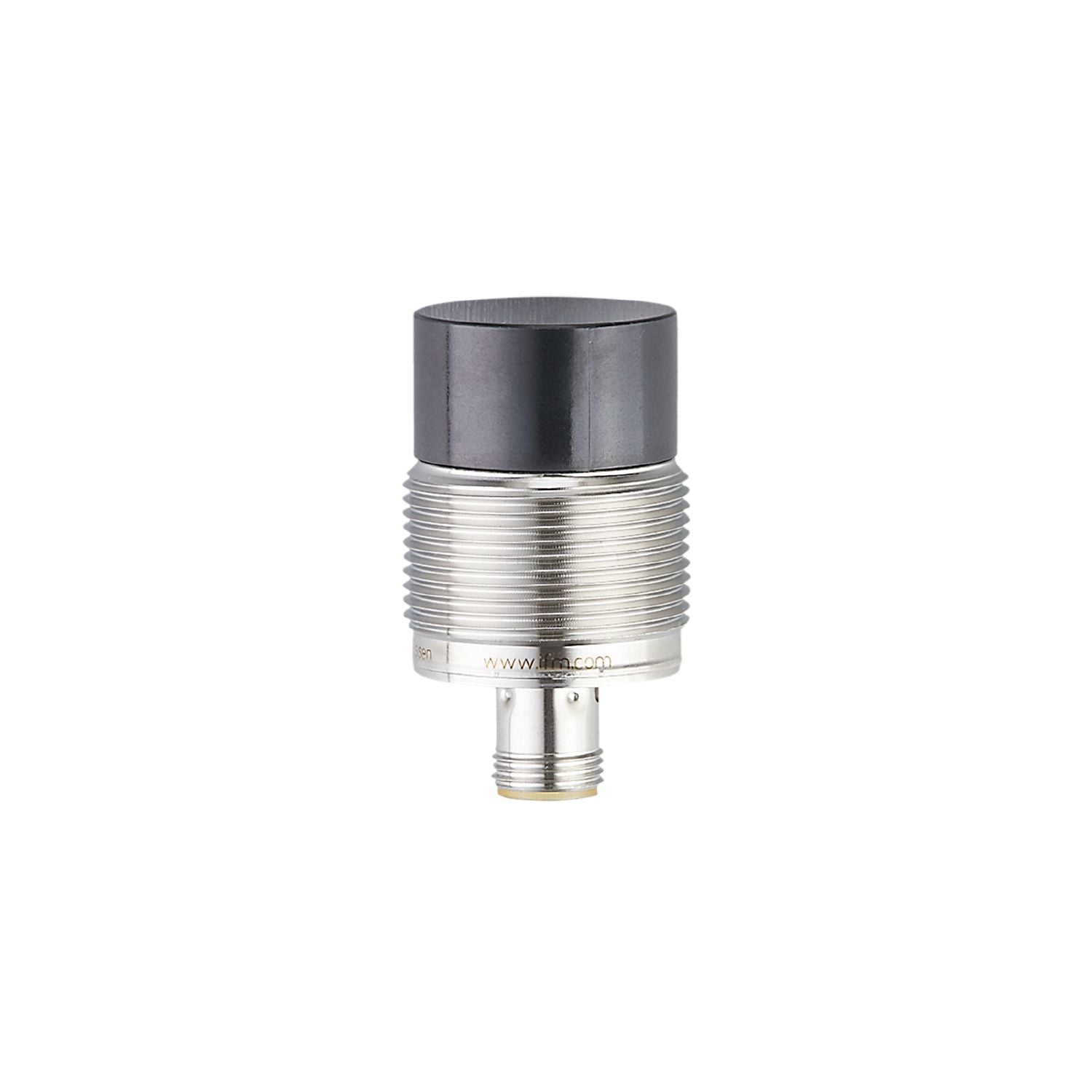

For the reliable identification of ID tags on workpiece carriers and products. Robust stainless steel housing for applications in mounting, feeding and handling technology. High protection rating for the requirements of harsh industrial environments. RFID read/write head HF for non-flush mounting. For the connection to RFID evaluation units LF/HF using the tried-and-tested M12 connection
The list of countries applying the European Radio Equipment Directive 2014/53/EU (RED) can be found under “Downloads”.
Operating voltage [V]
19.2...28.8 DC;(supply only via the DTE10x evaluation unit (to EN 60950-1))
Current consumption [mA]
< 50
Protection class
III
Operating frequency [MHz]
13,56
RFID standard
ISO 15693
Detection zone
Distance write/read head front [mm]
160
Distance write/read head side [mm]
120
Distance to the ID tag [mm]
referred to 30 mm coin tag; I-CODE SLI
:
≤ 45
Interfaces
Communication interface
DATA / DTE10x
Operating conditions
Ambient temperature [°C]
-20...60
Storage temperature [°C]
-25...80
Protection
IP 67; IP 69K
Tests / approvals
Shock resistance
EN 60068-2-27
50 g 11 ms / 40 g (6 ms, continuous)
Vibration resistance
EN 60068-2-6
20 g 10...2000 Hz
Weight [g]
179
Housing
cylindrical
Mounting
non-flush mountable
Dimensions [mm]
M30 x 1.5 / L = 50
Thread designation
M30 x 1.5
Materials
housing: stainless steel; Protective cover: PPS
Displays / operating elements
Display
operation
1 x LED, green
tag communication
1 x LED, yellow
Accessories
Items supplied
nut 2 x M30 x 1,5
Pack quantity
1 pcs.
Electrical connection
Connection
Connector: 1 x M12; coding: A
