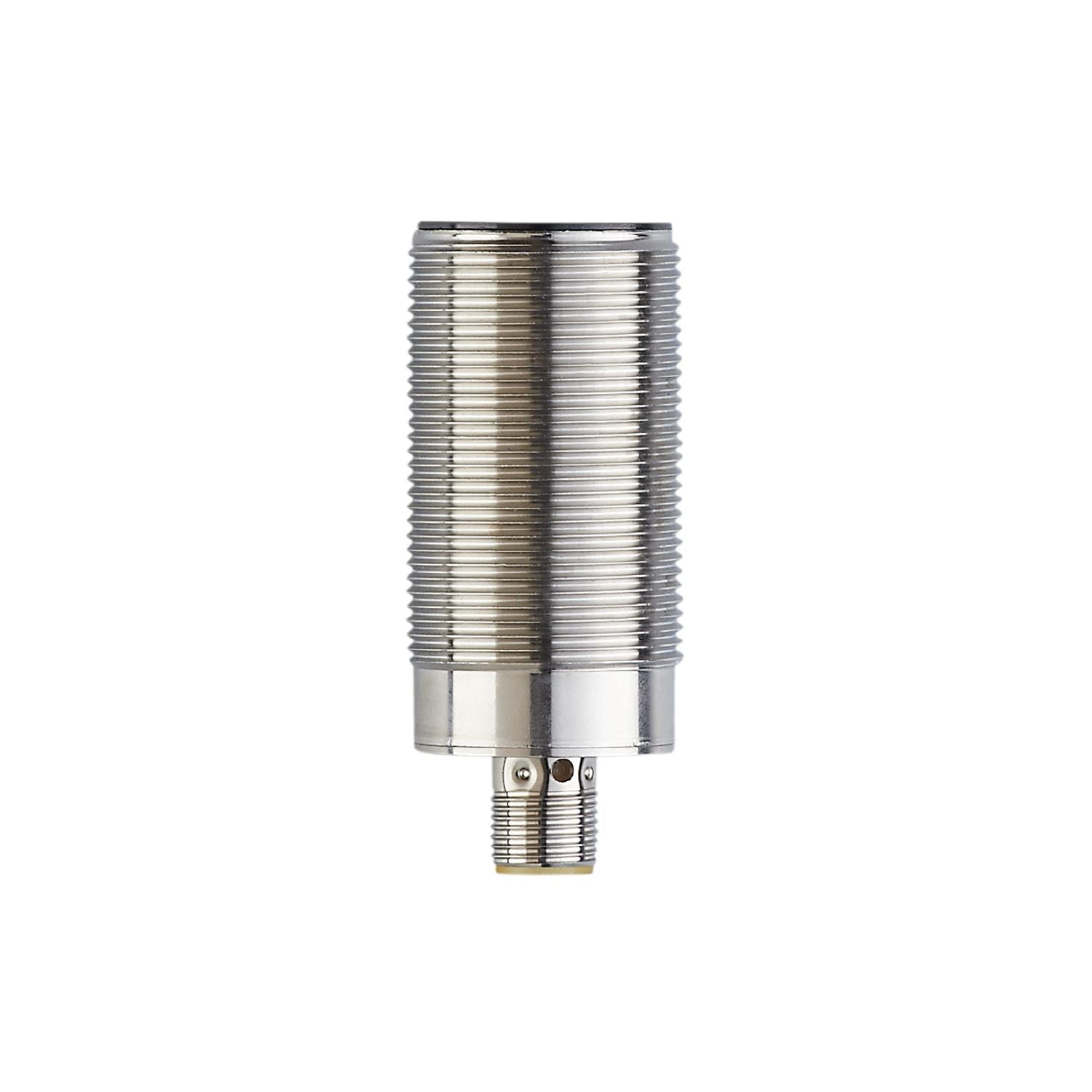

IFM ANT434 - RFID read/write head HF DTRHF IBRWIDUS03

For the reliable identification of ID tags on workpiece carriers and products.
Robust stainless steel housing for applications in mounting, feeding and handling technology.
Suitable for use with RFID antenna adapters to increase the ranges.
RFID read/write head HF for flush mounting.
For the connection to RFID evaluation units LF/HF using the tried-and-tested M12 connection

Application	detection of objects on transport equipment
Radio approval for	USA; Canada; EU/RED; Australia; Japan; China; Taiwan; India; Singapore; Ukraine
Note on radio approval	The list of countries applying the European Radio Equipment Directive 2014/53/EU (RED) can be found under “Downloads”.

Operating voltage [V]	19.2...28.8 DC;(supply only via the DTE10x evaluation unit (to EN 60950-1))
Current consumption [mA]	< 50
Protection class	III
Operating frequency [MHz]	13,56
RFID standard	ISO 15693

Detection zone

Distance write/read head front [mm]	100
Distance write/read head side [mm]	50
Distance to the ID tag [mm]	≤ 30

Interfaces

Communication interface	DATA / DTE10x

Operating conditions

Ambient temperature [°C]	-20...60
Storage temperature [°C]	-25...80
Protection	IP 67; IP 69K

Tests / approvals

Shock resistance	EN 60068-2-27 50 g 11 ms / 40 g (6 ms, continuous)
Vibration resistance	EN 60068-2-6 20 g 10...2000 Hz

Weight [g]	211.5
Housing	cylindrical
Mounting	flush mountable
Dimensions [mm]	M30 x 1.5 / L = 70
Thread designation	M30 x 1.5
Materials	housing: stainless steel; Protective cover: PPS

Displays / operating elements

Display	operation 1 x LED, green tag communication 1 x LED, yellow

Accessories

Items supplied	nut 2 x M30 x 1,5

Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A
