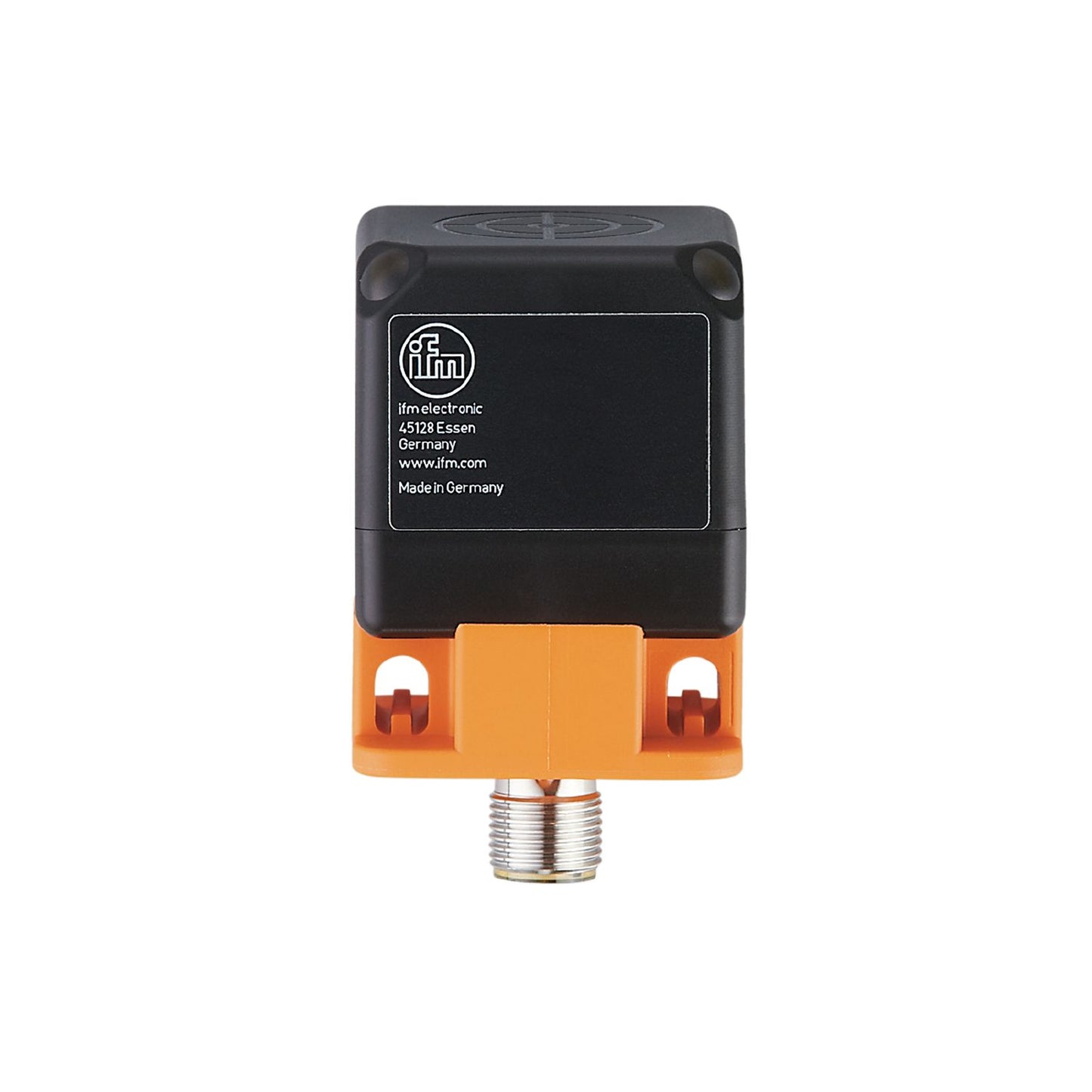

For the reliable identification of ID tags on workpiece carriers and products. Robust housing for applications in mounting, feeding and handling technology. High protection rating for the requirements of harsh industrial environments. Large write/read distance. Five positions of the sensing face selectable
Application
detection of objects on transport equipment
Radio approval for
USA; Canada; EU/RED; Australia; China; Taiwan; India; South Korea; Singapore; Malaysia; United Kingdom; New Zealand
Note on radio approval
The list of countries applying the European Radio Equipment Directive 2014/53/EU (RED) can be found under “Downloads”.
Operating voltage [V]
24 DC
Current consumption [mA]
< 50
Protection class
III
Operating frequency [MHz]
0,125
Detection zone
Travel speed [m/s]
< 0.5
Distance write/read head front [mm]
400
Distance write/read head side [mm]
400
Distance to the ID tag [mm]
read
:
≤ 60 ( static )
write
:
≤ 55 ( static )
reference tag
:
E80360
Interfaces
Communication interface
DATA / DTE10x
Operating conditions
Ambient temperature [°C]
-20...60
Storage temperature [°C]
-25...80
Protection
IP 67; IP 69K
Tests / approvals
Shock resistance
EN 60068-2-29
40 g 6 ms
EN 60068-2-27
50 g 11 ms
Vibration resistance
EN 60068-2-6
20 g 10...55 Hz
MTTF [years]
536
Weight [g]
185
Housing
rectangular
Sensing face
5 positions selectable
Dimensions [mm]
40 x 40 x 54
Materials
housing: PA; metal parts: stainless steel
Displays / operating elements
Display
operation
1 x LED, green
tag communication
1 x LED, yellow
Remarks
For the distances to other ID tags see the respective data sheet (E803xx)
Pack quantity
1 pcs.
Electrical connection
Connection
Connector: 1 x M12, rotatable, locking; coding: A
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — ANT512-01 — 29.11.2023 —
