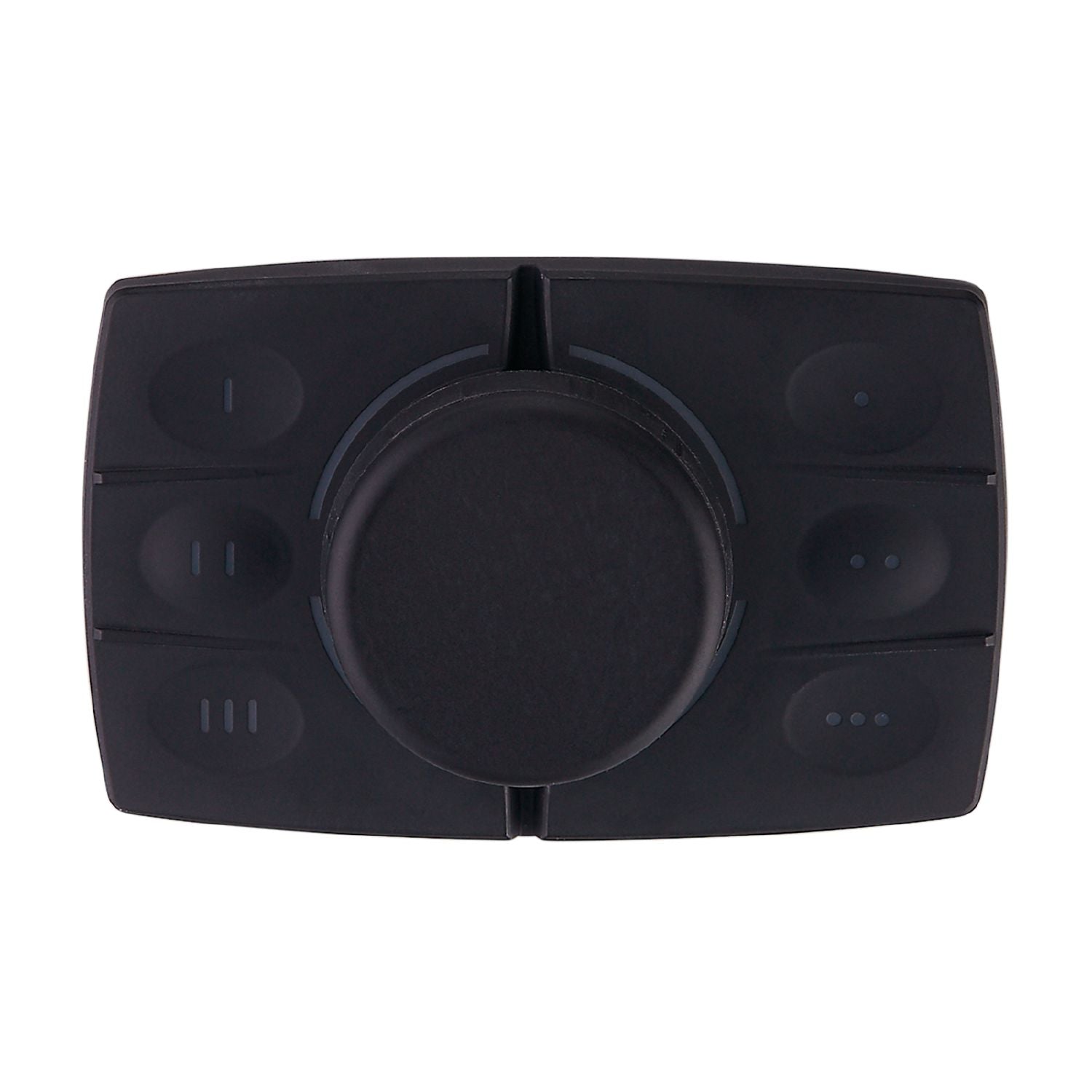

IFM CR1300 - pushbutton module with knob with push and joystick function in two axes and with backlit keys ecomatPanel/COP

Robust keypad with knob with integrated 4-way pushbutton and push function for mobile machines.
6 RGB backlit function keys.
All backlights can be controlled separately in any colour.
High-performance CAN interface for various communication tasks.
Simple integration into existing applications

Communication interface	CAN
Dimensions [mm]	136 x 86 x 73.5

Design	installation in panels or panel cutouts

Operating voltage [V]	9...32 DC
Nominal voltage DC [V]	12 / 24
Current consumption [mA]	< 400;(13,5 V DC)
Reverse polarity protection	yes

Interfaces

Communication interface	CAN
Number of CAN interfaces	1

Protocol	J1939
Factory settings	Baud rate: 250 node ID: 135
Note on interfaces	dynamic address allocation is supported

Operating conditions

Ambient temperature [°C]	-40...85
Storage temperature [°C]	-40...85
Max. relative air humidity [%]	90
Max. height above sea level [m]	4000
Protection	IP 65

Tests / approvals

EMC	UN/ECE-R10 noise emission and noise interference: 100 V/m DIN EN 61000-6-2 ESD DIN EN 61000-6-4 Burst ISO 7637-2 pulse 1 severity level 4 / function state C (24 V) ISO 7637-2 pulse 2a severity level 4 / function state A (24 V) ISO 7637-2 pulse 2b severity level 4 / function state C (24 V) ISO 7637-2 pulse 3a severity level 4 / function state A (24 V) ISO 7637-2 pulse 3b severity level 4 / function state A (24 V) ISO 7637-2 pulse 4 severity level 4 / function state B (24 V) ISO 7637-2 pulse 5b severity level 4 / function state A (24 V) ISO 7637-2 pulse 4 severity level 4 / function state B (12 V)
Continuous shock resistance	ISO 16750-3 30 g 6 ms / 24000 shocks
Fast temperature change	EN 60068-2-30 damp heat: cyclical 55 ° C upper temperature limit / 6 cycles EN 60068-2-78 damp heat: constant 40 ° C 93 % rH / test period 21 days
Vibration resistance	ISO 16750-3 Test VII random, mounting place car body EN 60068-2-6 Sinus 10...500 Hz / 10 cycles/axis, sine
Salt spray test	EN 60068-2-52 Salt spray severity level 3 / motor vehicle
MTTF [years]	119

Weight [g]	459.6
Weight (without accessories and packaging) [g]	400
Dimensions [mm]	136 x 86 x 73.5
Materials	housing: PC/ABS; silicone overlay: PA66 transparent
Information on service life	pushbuttons: > 100000 activations knob (rotation by 360°): > 100000 cycles knob (push function): > 100000 activations knob (tilting per axis): > 100000 activations

Displays / operating elements

Display	LED, multi-colour
Operating elements	6 freely programmable backlit function keys 1 $Drehknopf_mit_Tast_und_Joystick_Funktion_in_zwei_Achsen 24 stops per revolution

Pack quantity	1 pcs.
