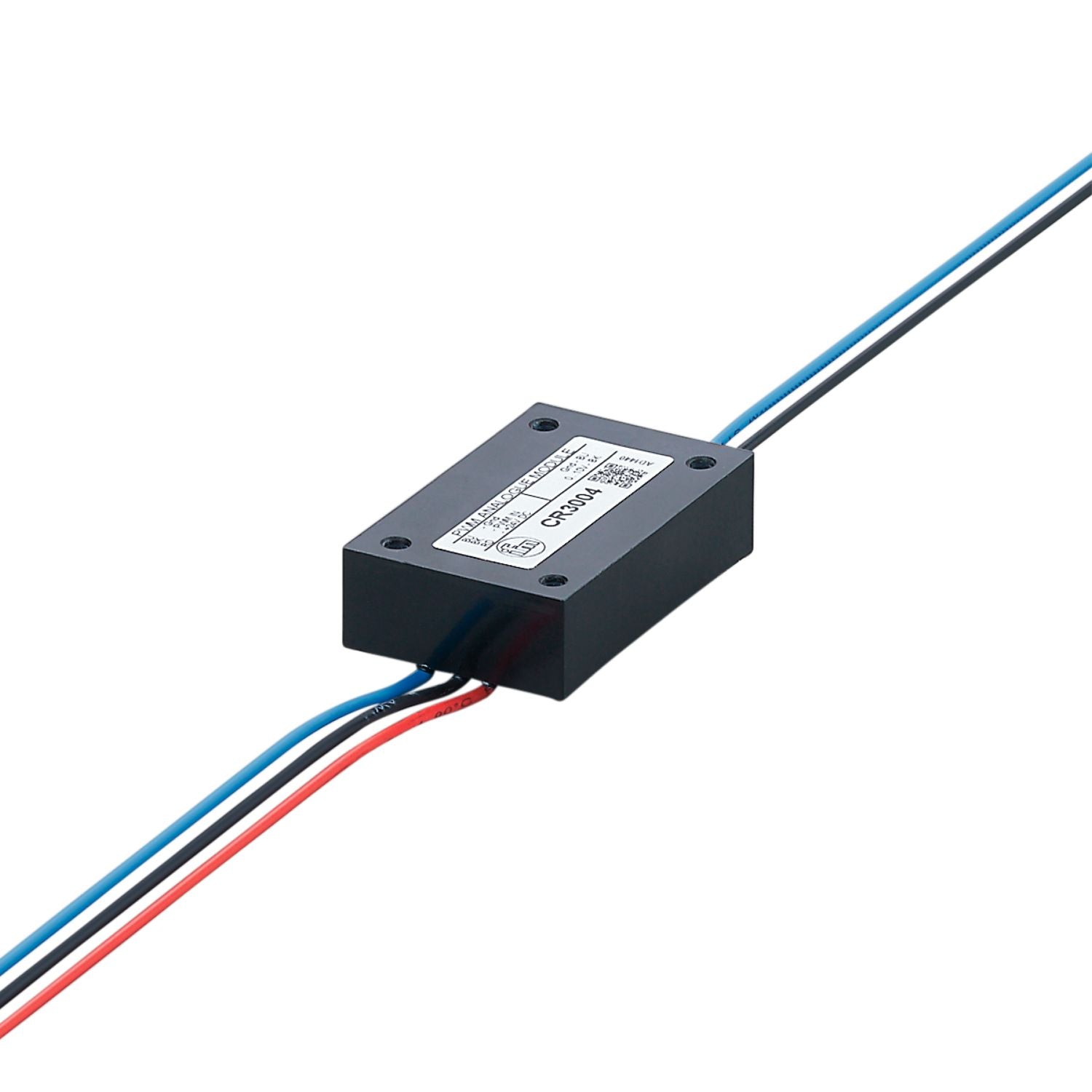

IFM CR3004 - PWM to analogue signal converter R360/PWM-ANALOG-MODULE

Conversion of a PWM signal into an analogue output signal.
Precise linearised voltage output.
Simple connection via strands with wire end ferrules.
For mobile vehicles.
Wide operating temperature range

Design	housing module

Operating voltage [V]	24...30 DC
Current consumption [mA]	< 20
Reverse polarity protection	yes

Inputs / outputs

Number of inputs and outputs	Number of analogue outputs: 1

Inputs

Number of PWM inputs	1
PWM frequency inputs [Hz]	122

Outputs

Number of analogue outputs	1
Analogue voltage output [V]	0...10

Operating conditions

Ambient temperature [°C]	-40...85
Note on ambient temperature	wires flexed -5...105 °C wires at rest -30...105 °C
Protection	IP 67

Weight [g]	70.5
Dimensions [mm]	54 x 34 x 15
Materials	polyamide glass fibre reinforced

Pack quantity	1 pcs.

Electrical connection

input	Cable: 0.28 m; / Core ends with wire end sleeves

Diagrams and graphsifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — CR3004-01 — 11.12.2019 —
