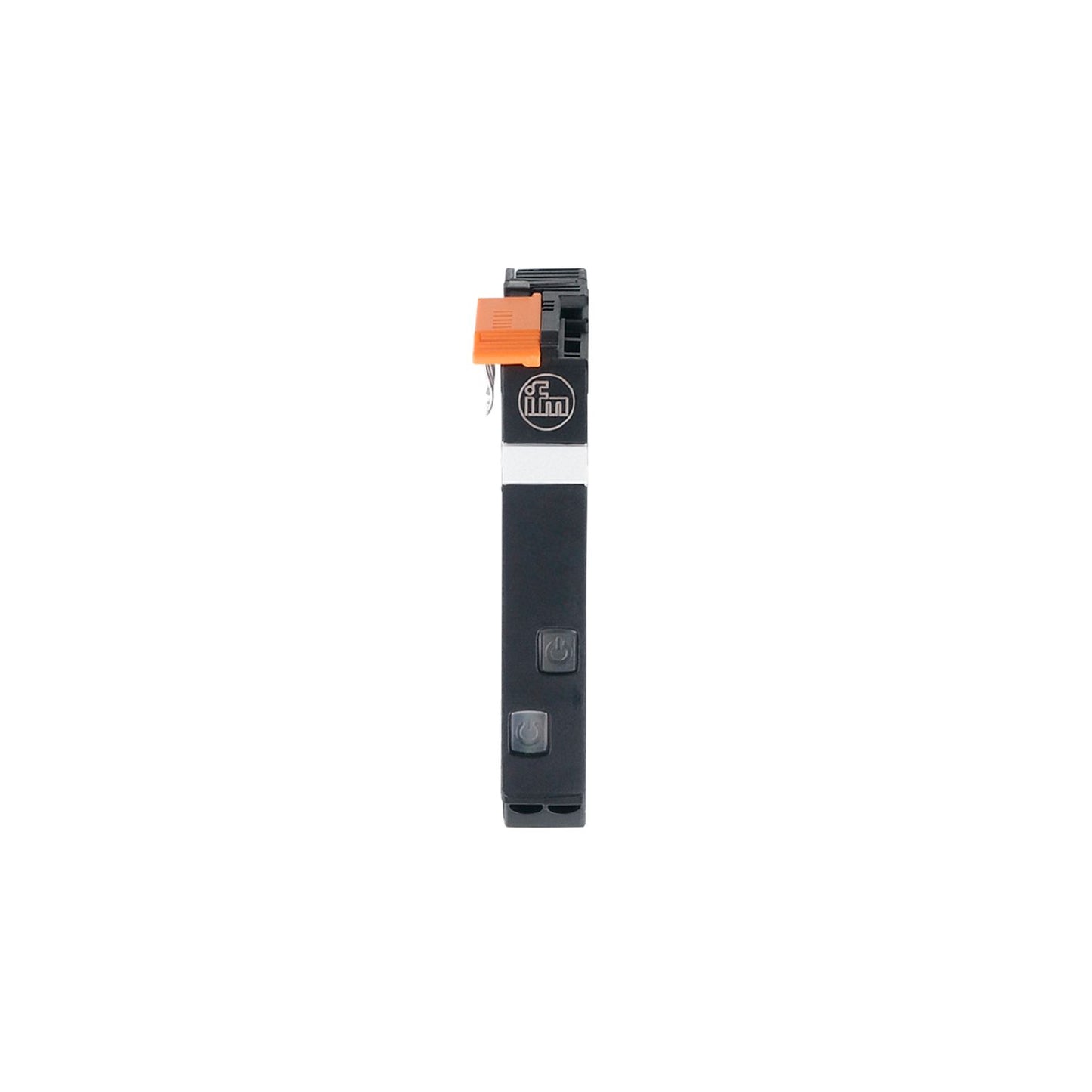

IFM DF2524 - Circuit protection module for an uninterrupted power supply Fuse/Combi/24VDC/2x1-4A/CL2

For the permanent monitoring of the 24 V secondary circuit.
Reliable switch-off in case of a fault.
Modular and selective protection of machinery and plant.
Clearly visible LED for indicating capacity utilisation, tripping and operation.
With IO-Link for transmission of signals and diagnostic data

Installation	rail TH35; according to EN 60715

Operating voltage [V]	to SELV/PELV
Nominal voltage DC [V]	24
Input voltage DC [V]	19.2...30
Protection class	III
Reverse polarity protection	yes
Mains buffering time (nominal voltage 24 V DC) [ms]	10
Closed-circuit current [mA]	12
Number of channels	2
Nominal current [A]	1...4
Nominal current (Fail Safe Element) [A]	4

Outputs

Load capacitance, total [mF]	20

Operating conditions

Ambient temperature [°C]	-25...60
Storage temperature [°C]	-40...70
Protection	IP 20;(on the front)
Pollution degree	2

Tests / approvals

EMC	EN 61000-6-3 radiation of interference EN 61000-6-2 immunity

Weight [g]	73.5
Dimensions [mm]	80 x 12.5 x 98

Displays / operating elements

Display	status 2 x LED, red / green / orange
Operating elements	2 x pushbutton

Electrical connection

Connection	push-in terminals:

Diagrams and graphs

output characteristics	time-current characteristics
