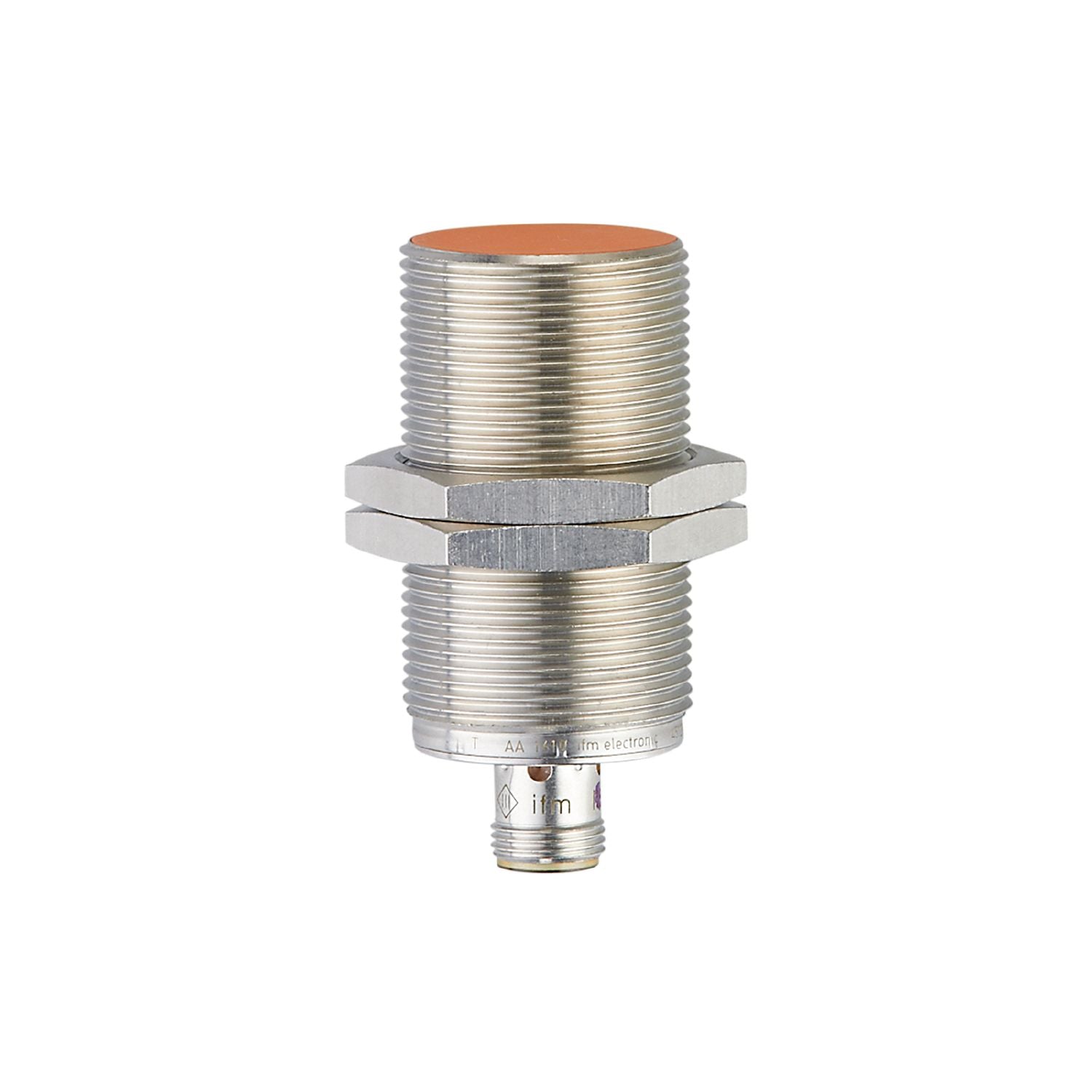

IFM DI5031 - Compact evaluation unit for speed monitoring DIK3012BWRKG/IO/US

Electrical design	PNP/NPN
Output function	normally open / normally closed;(parameterisable)
Sensing range [mm]	12
Communication interface	IO-Link
Housing	threaded type
Dimensions [mm]	M30 x 1.5 / L = 65

Application	simple evaluation of rotating and linear movement with regard to underspeed; blocking

Nominal voltage DC [V]	10...30
Current consumption [mA]	< 10
Protection class	III
Reverse polarity protection	yes

Outputs

Electrical design	PNP/NPN
Output function	normally open / normally closed;(parameterisable)
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	100
Short-circuit proof	yes
Overload protection	yes

Detection zone

Sensing range [mm]	12
Sensing range adjustable	no
Operating distance [mm]	0...9.72

Measuring/setting range

Setting range [Imp/min]	5...14400
Measuring principle	inductive

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3
Hysteresis [% of Sr]	10

Response times

Start-up delay [s]	0...30;(In steps of: 100 ms; Default: 15 s)
Max. damping frequency [Imp/min]	18000

Interfaces

Communication interface	IO-Link

Operating conditions

Ambient temperature [°C]	-40...85
Storage temperature [°C]	-25...85
Protection	IP 66; IP 67; IP 68; IP 69K

Tests / approvals

EMC	EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 10 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 10 V EN 55011 class B EN 60947-5-2
Shock resistance	EN 60068-2-27 Ea 100 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes
Vibration resistance	DIN EN 60947-5-2 20 g (10...3000 Hz) 50 sweep cycles, 1 octave per minute, in 3 axes
MTTF [years]	664
UL approval	UL Approval no. A008

Weight [g]	121.5
Housing	threaded type
Mounting	flush mountable
Dimensions [mm]	M30 x 1.5 / L = 65
Thread designation	M30 x 1.5
Materials	housing: brass white bronze coated; sensing face: PBT orange; LED window: PEI; lock nuts: brass white bronze coated
Tightening torque [Nm]	50

Displays / operating elements

Display	SIO mode output stage supplied with current 4 x LED, yellow IO-Link mode target in measuring range 4 x LED, yellow target outside measuring range 4 x LED, yellow flashing

Accessories

Items supplied	lock nuts: 2

Electrical connection

Connection	Connector: 1 x M12; coding: A
