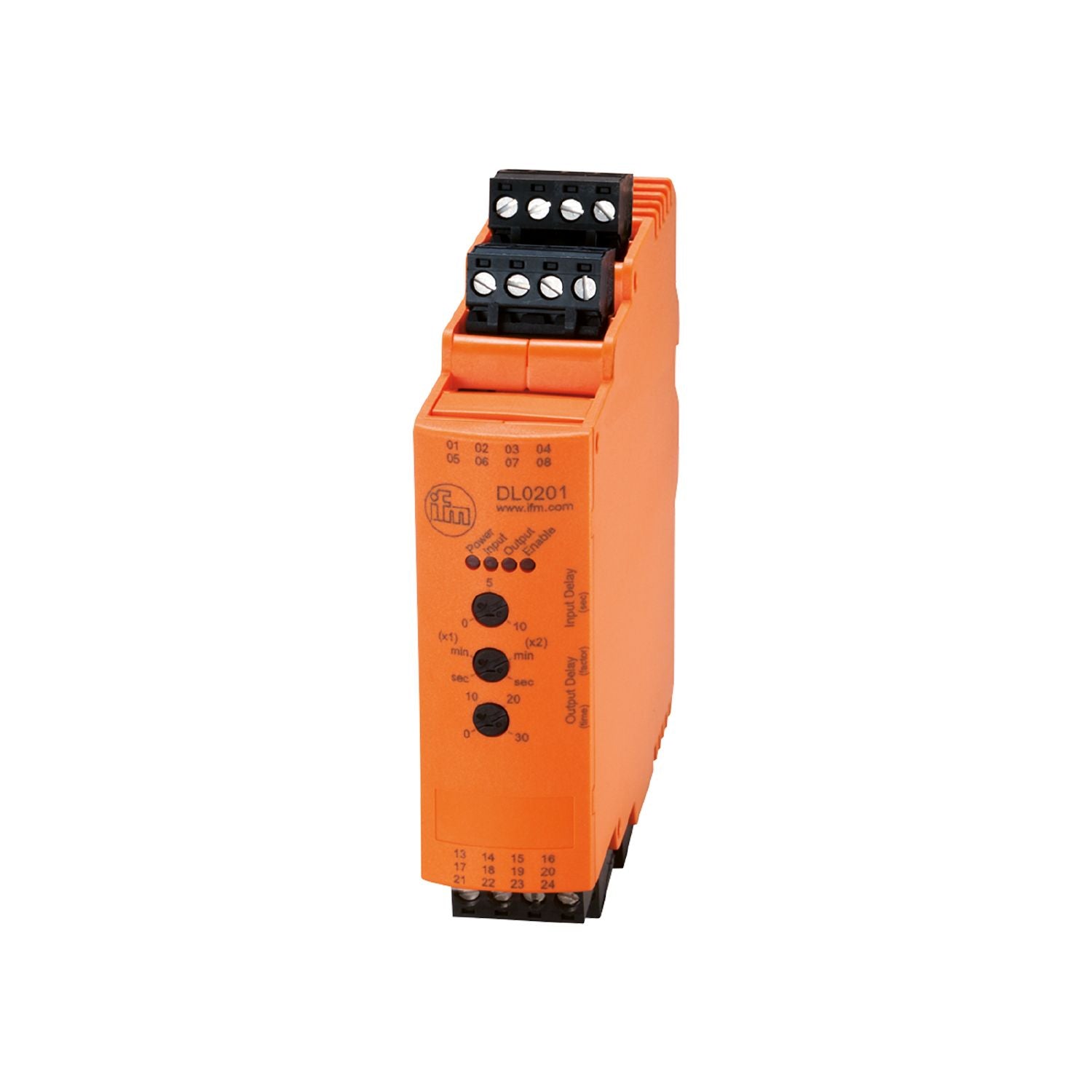

IFM DL0201 - Evaluation unit for level monitoring/control L200/LM-1/110-240VAC 24VDC

Adjustable switch-on and switch-off delay.
Clearly visible LEDs for indicating operation, input, output and release.
Protection of a tank against overspill or dry run.
For the reliable wear protection of pumps and valves.
Quick and time-saving rail mounting

Housing	housing for DIN rail mounting

Application	Protection of a tank against overspill or dry run

Operating voltage tolerance 2 [%]	> 20
Nominal voltage AC [V]	110...240
Nominal voltage DC [V]	27
Nominal voltage tolerance [%]	> 20
Nominal voltage tolerance 2 [%]	20...10
Nominal frequency AC [Hz]	50...60
Insulation rating [V]	9
Max. power consumption AC [W]	6
Max. power consumption DC [W]	4
Auxiliary energy for sensors DC [V]	18.5...30;(SELV, ≤ 100 mA)

Inputs / outputs

Number of inputs and outputs	Number of digital outputs: 1; Number of relay outputs: 1

Outputs

Number of digital outputs	1
Number of relay outputs	1
Contact rating	4 A (240 V AC, 24 V DC);(ohmic resistance)
Short-circuit proof	yes

Operating conditions

Ambient temperature [°C]	-25...60
Storage temperature [°C]	-25...70
Max. relative air humidity [%]	80;(40 °C: 50 % non condensing)
Max. height above sea level [m]	2000
Protection	IP 20
Protection rating terminals	IP 20
Pollution degree	2;(≤ 240 V AC)

Tests / approvals

MTTF [years]	224
UL approval	UL Approval no. N001

Weight [g]	242.5
Housing	housing for DIN rail mounting
Type of mounting	rail;(TH35 EN 60715)
Materials	plastics: PC-GF20

Displays / operating elements

Display	power supply 1 x LED, green input 1 x LED, yellow Output 1 x LED, green enable signal 1 x LED, yellow

Accessories

Items supplied	connector: 5 x 4-pole, with screw connection, E40173

Electrical connection

Connection	pin headers: 4 x ; Spacing: 5.0 mm

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — DL0201-00 — 13.02.2015 —
