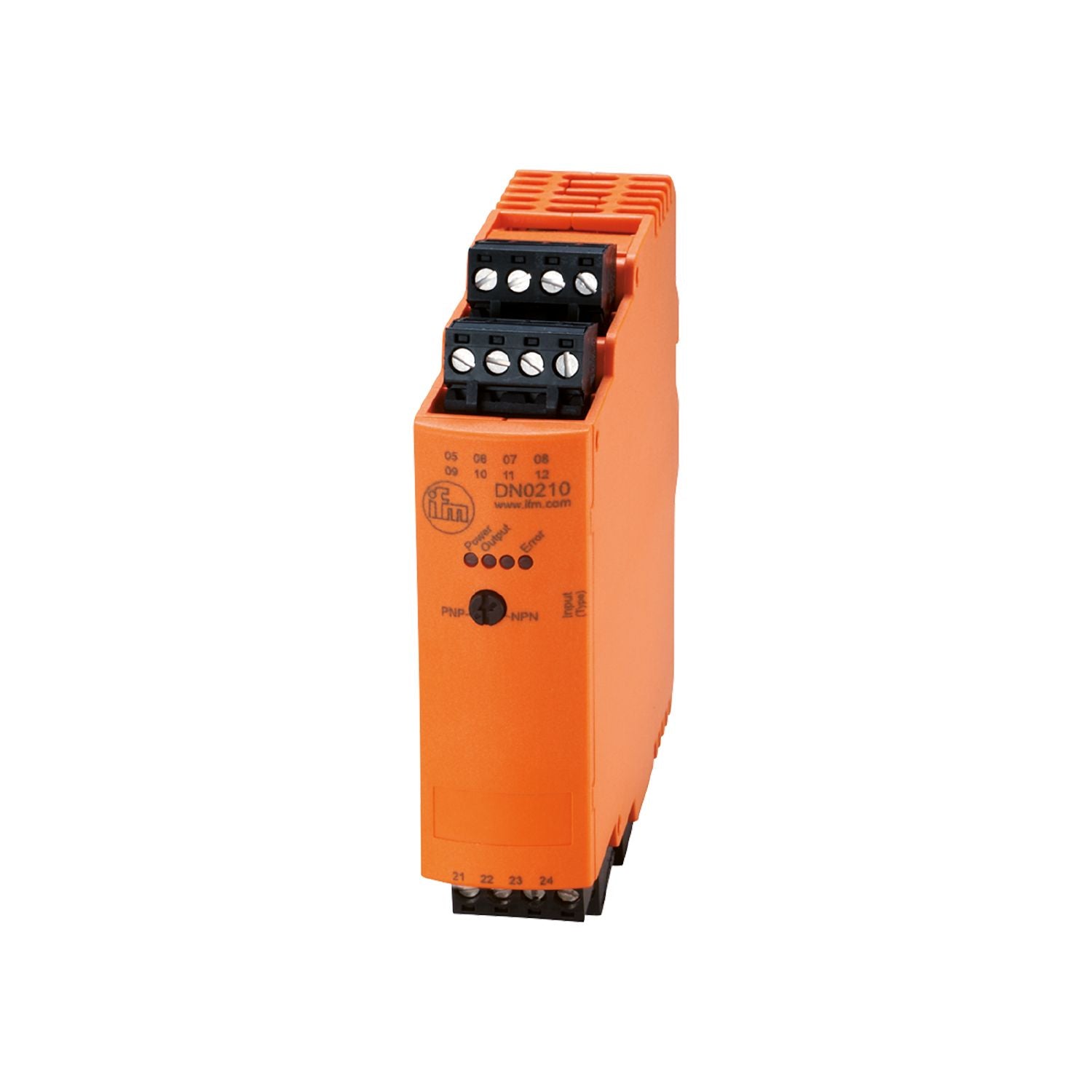

Reliable switching of high currents or alternating currents. Integrated wide-range power supply for the sensor supply. Particularly space-saving design. Plug-in screw terminals simplify installation. With PNP or NPN control
Housing
housing for DIN rail mounting
Application
Power supply and signal evaluation
Nominal voltage AC [V]
110...240
Nominal voltage tolerance [%]
> 20
Nominal voltage tolerance 2 [%]
20...10
Nominal frequency AC [Hz]
50...60
Insulation rating [V]
9
Max. power consumption AC [W]
11
Auxiliary energy for sensors DC [V]
24;(SELV, ± 10 %, 300 mA)
Number of channels
1
Inputs / outputs
Number of inputs and outputs
Number of relay outputs: 1
Inputs
Input circuit of digital inputs
PNP/NPN
Outputs
Number of relay outputs
1
Contact rating
4 A (240 V AC, 24 V DC);(ohmic resistance)
Operating conditions
Ambient temperature [°C]
-20...60
Storage temperature [°C]
-25...70
Max. relative air humidity [%]
80;(40 °C: 50 % non condensing)
Max. height above sea level [m]
3000
Protection
IP 20
Protection rating terminals
IP 20
Pollution degree
2;(≤ 240 V AC)
Tests / approvals
MTTF [years]
290
Weight [g]
214
Housing
housing for DIN rail mounting
Type of mounting
rail;(TH35 EN 60715)
Materials
plastics: PC-GF20
Displays / operating elements
Display
power supply
1 x LED, green
Output
1 x LED, yellow
errors
1 x LED, red
Accessories
Items supplied
connector: 3 x 4-pole, with screw connection
Electrical connection
Connection
pin headers: 4 x ; Spacing: 5.0 mm
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — DN0210-00 — 07.07.2023 —
