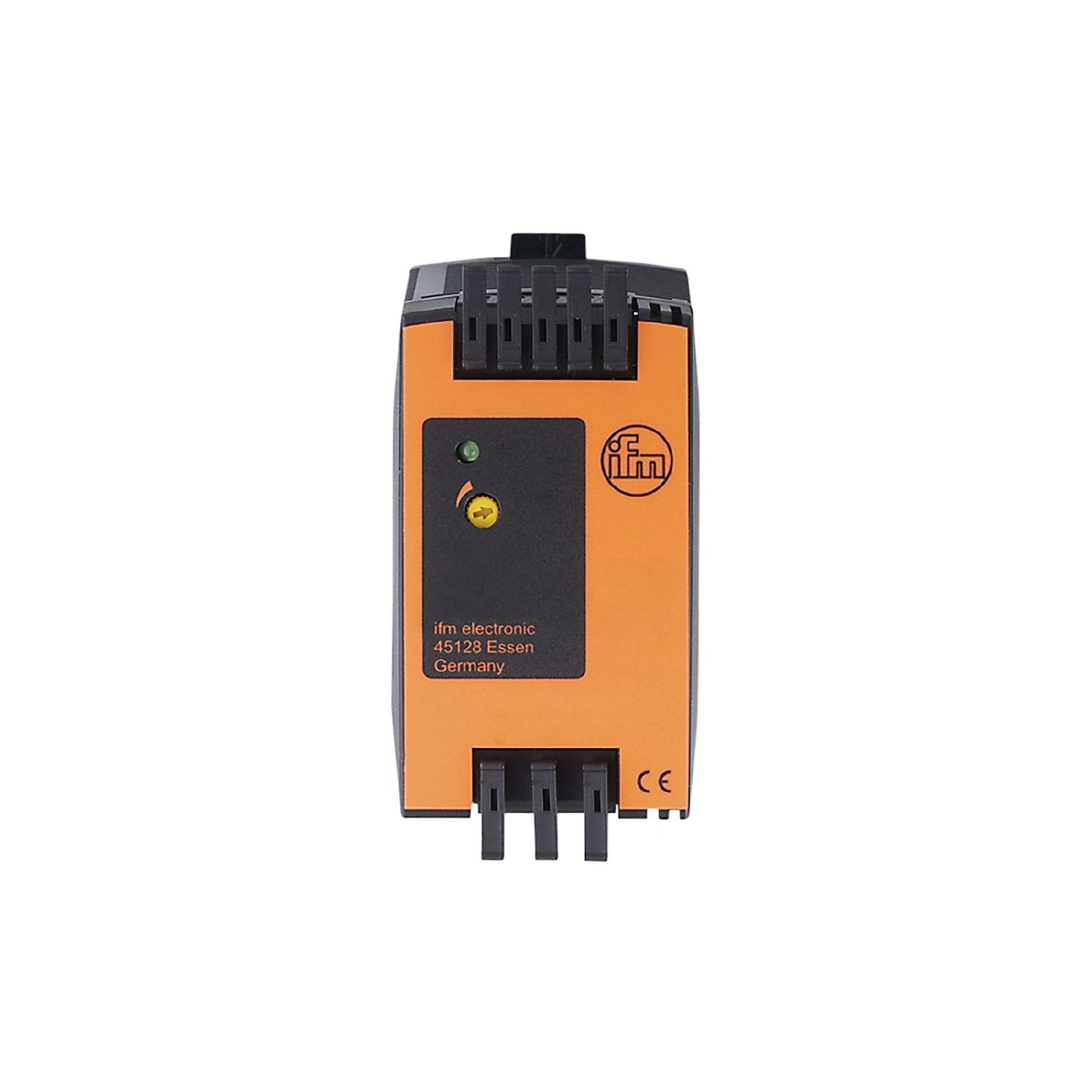

IFM DN1020 - Switched-mode power supply 24 V DC POWER SUPPLY/24VDC/1,3A

For the regulated power supply for controllers, sensors, actuators, and industrial electronics.
Low power loss thanks to high efficiency.
High mains buffering time.
High power reserves.
Low heating of the control cabinet

Nominal voltage AC [V]	< 230
Nominal frequency AC [Hz]	50...60
Input voltage range AC [V]	100...240
Output voltage DC [V]	24...28
Protection class	I;(IEC 61140)
Overvoltage protection	yes;(< 40)
Output voltage [V]	adjustable
Output voltage tolerance [%]	2
Max. output current at min. output voltage [A]	1.3
Number of output circuits	1
Max. residual ripple [mV]	50
Efficiency (nominal voltage 230 V AC / 50 Hz) [%]	87.5
Derating [W/K]	1 (60...70 °C)
Mains buffering time (nominal voltage 230 V AC / 50 Hz) [ms]	190

Outputs

Short-circuit protection	yes
Overload protection	yes

Operating conditions

Ambient temperature [°C]	-10...70
Protection	IP 20

Tests / approvals

EMC	EN 61000-6-2 EN 61000-6-3
MTTF [years]	411

Weight [g]	310.5
Type of mounting	rail;(TH35 (EN 60715))
Dimensions [mm]	83 x 45 x 96
Materials	PC

Displays / operating elements

Display	function LED, green

Pack quantity	1 pcs.

Electrical connection

Connection	spring clamp terminals: ...2.5 mm²

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — DN1020-00 — 10.08.2012 —
