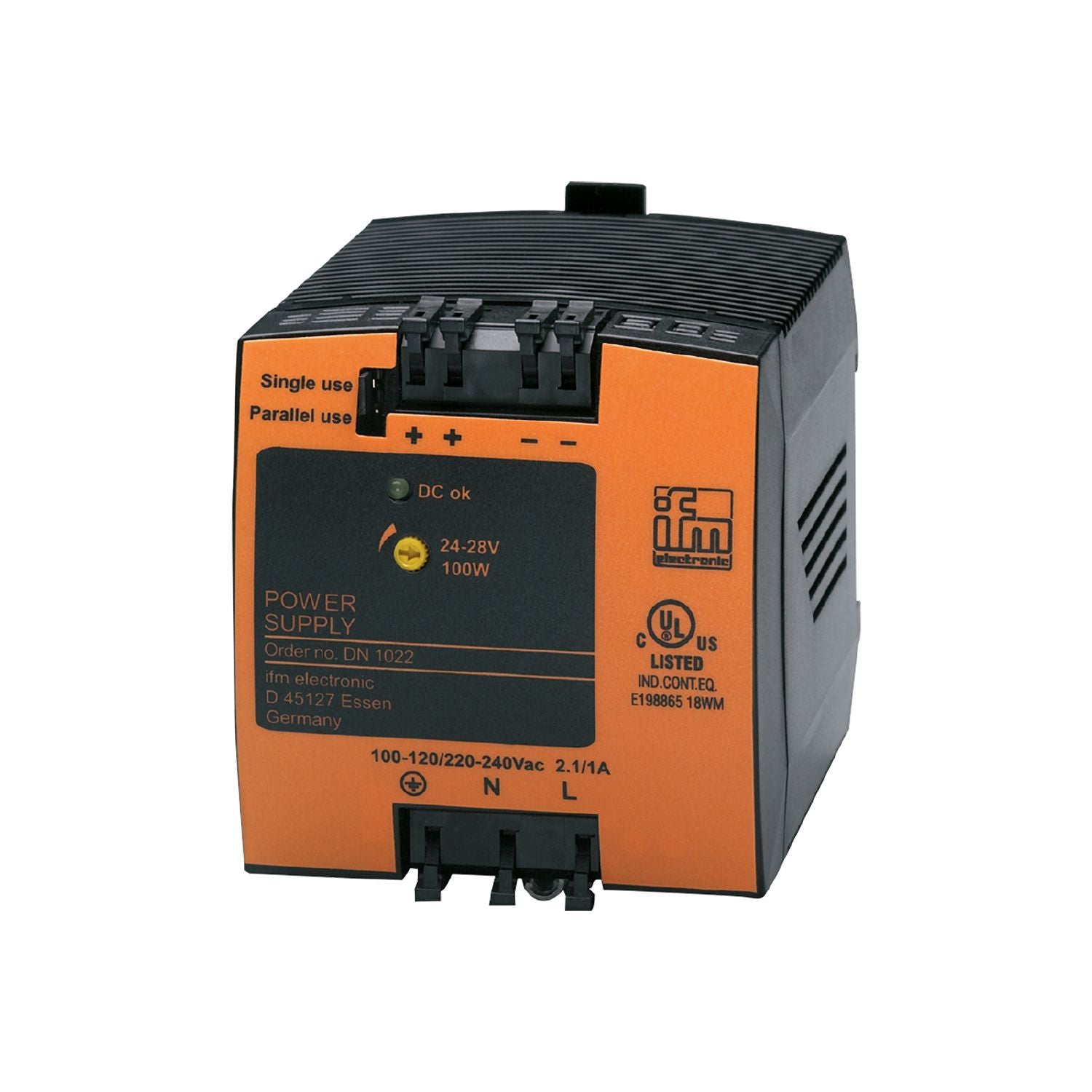

IFM DN1022 - Switched-mode power supply 24 V DC POWER SUPPLY/24VDC/4,1A

For the regulated power supply for controllers, sensors, actuators, and industrial electronics.
Low power loss thanks to high efficiency.
High mains buffering time.
Particularly space-saving design.
Low heating of the control cabinet

Nominal voltage AC [V]	< 230
Nominal frequency AC [Hz]	50...60
Input voltage range AC [V]	100...240
Output voltage DC [V]	24...28
Protection class	I;(IEC 61140)
Output voltage [V]	adjustable
Output voltage tolerance [%]	2
Max. output current at min. output voltage [A]	4.1
Number of output circuits	1
Max. residual ripple [mV]	50
Efficiency (nominal voltage 230 V AC / 50 Hz) [%]	90
Derating [W/K]	2 (60...70 °C)
Mains buffering time (nominal voltage 230 V AC / 50 Hz) [ms]	40

Outputs

Short-circuit protection	yes
Overload protection	yes

Operating conditions

Ambient temperature [°C]	-10...70
Protection	IP 20

Tests / approvals

EMC	EN 61000-6-2 EN 61000-6-3
MTTF [years]	177

Weight [g]	434
Type of mounting	rail;(TH35 (EN 60715))
Materials	PC

Displays / operating elements

Display	function LED, green

Pack quantity	1 pcs.

Electrical connection

Connection	spring clamp terminals: ...2.5 mm²

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — DN1022-00 — 07.10.2015 —
