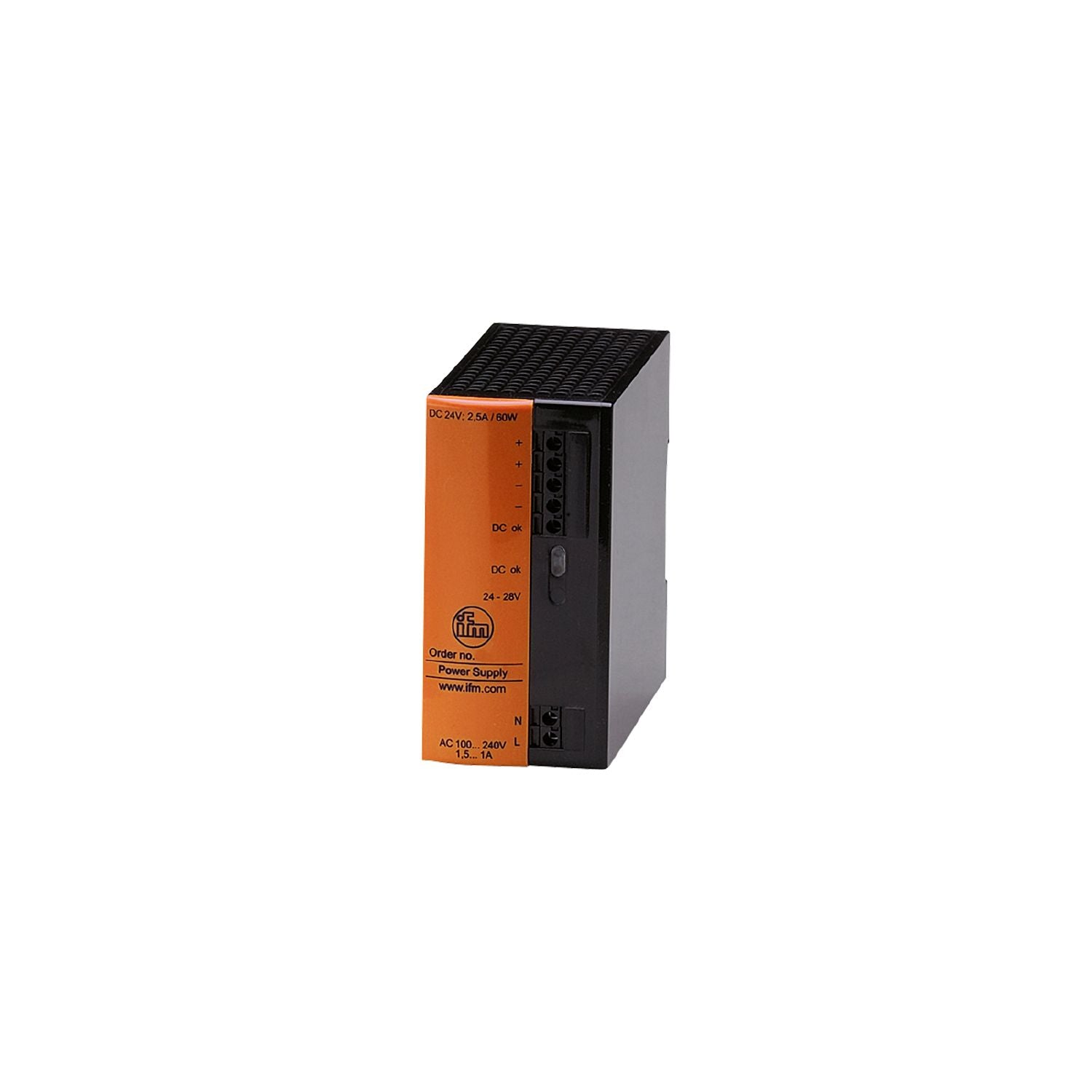

IFM DN1030 - Switched-mode power supply 24 V DC PSU-1AC/24VDC-1,3A

For the regulated power supply for controllers, sensors, actuators, and industrial electronics.
Low power loss thanks to high efficiency.
High mains buffering time.
Particularly space-saving design.
Low heating of the control cabinet

Operating voltage tolerance [%]	10
Nominal voltage AC [V]	< 230
Nominal frequency AC [Hz]	47...63
Input voltage range AC [V]	100...240
Output voltage DC [V]	24...28
Protection class	II;(IEC 61140)
Power-on delay time [s]	< 0.255
Output voltage [V]	adjustable
Max. output current at min. output voltage [A]	1.25
Number of output circuits	1
Max. residual ripple [mV]	50
Efficiency (nominal voltage 230 V AC / 50 Hz) [%]	84
External input protection	10 A; B
Derating [W/K]	2% / K (> 60° C)
Mains buffering time (nominal voltage 230 V AC / 50 Hz) [ms]	120

Outputs

Short-circuit proof	yes
Overload protection	yes
Reliability of the DC OK signal	24 V DC (30 mA)

Operating conditions

Ambient temperature [°C]	0...70
Protection	IP 20

Tests / approvals

EMC	EN 61000-6-2 EN 61000-6-3

Weight [g]	278.5
Type of mounting	rail;(TH35 (EN 60715); free space for convection cooling 30 mm)
Dimensions [mm]	90 x 45 x 100
Materials	PC ABS

Displays / operating elements

Display	DC ok 1 x LED, green

Remarks	output voltage to SELV, PELV
Pack quantity	1 pcs.

Electrical connection

Connection	cage clamps:
