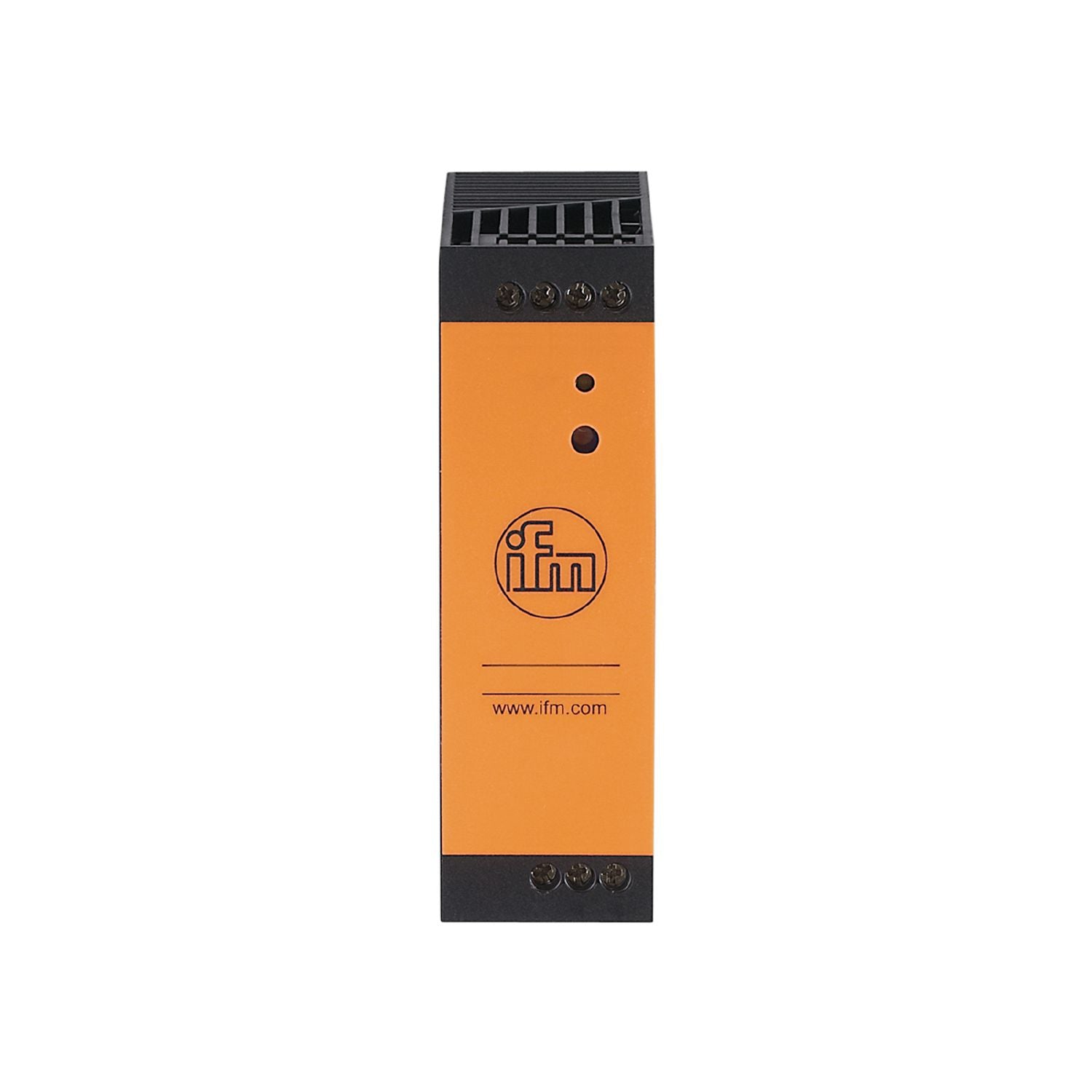

Max. output current peak at min. output voltage [A]
6
Max. output current peak at max. output voltage [A]
5.1
Output power (permanent) [W]
120
Power factor (nominal voltage 230 V AC / 50 Hz)
0.54
Number of output circuits
1
Max. residual ripple [mV]
100
Switch-on peak current (nominal voltage 230 V AC / 50 Hz) [A]
28
Efficiency (nominal voltage 230 V AC / 50 Hz) [%]
90.5
External input protection
≤ B-10 A / ≤ C-6 A
Derating [W/K]
3 (55...70 °C)
Mains buffering time (nominal voltage 230 V AC / 50 Hz) [ms]
60
Input current (nominal voltage 230 V AC / 50 Hz) [A]
1.06
Power loss (nominal voltage 230 V AC / 50 Hz) [W]
12.6
Back feeding protection [V]
35
Outputs
Short-circuit proof
yes
Overload protection
yes
Overload performance
output current constant
Parallel connection of outputs possible
no
Series connection of outputs possible
yes
Operating conditions
Ambient temperature [°C]
-10...70
Note on ambient temperature
observe the free space for convection (see operating instructions)
Storage temperature [°C]
-40...85
Max. relative air humidity [%]
95;(IEC 60068-2-30)
Protection
IP 20;(EN 60529)
Pollution degree
2;(IEC 62103: conductive soiling not permitted)
Tests / approvals
EMC
EN 61000-6-1
EN 61000-6-2
EN 61000-6-4
Vibration resistance
IEC 60068-2-6
±1,6 mm 2...17,8 Hz / 2 g 17,8...500 Hz
Shock resistance
IEC 60068-2-27
30 g 6 ms / 20 g 11 ms
Weight [g]
372.5
Type of mounting
rail;(TH35 (EN 60715))
Dimensions [mm]
124 x 39 x 129
Materials
PC
Displays / operating elements
Display
DC ok
1 x LED
Remarks
Series connection of outputs only applies to identical units up to max. 150 V DC overall voltage
UL 508 (Industrial Control Equipment)
Pack quantity
1 pcs.
Electrical connection
Connection
screw terminals:
Diagrams and graphs
block diagram
output characteristics
characteristic curve for degree of efficiency / power loss
characteristic line for derating
characteristic line for mains buffering time
