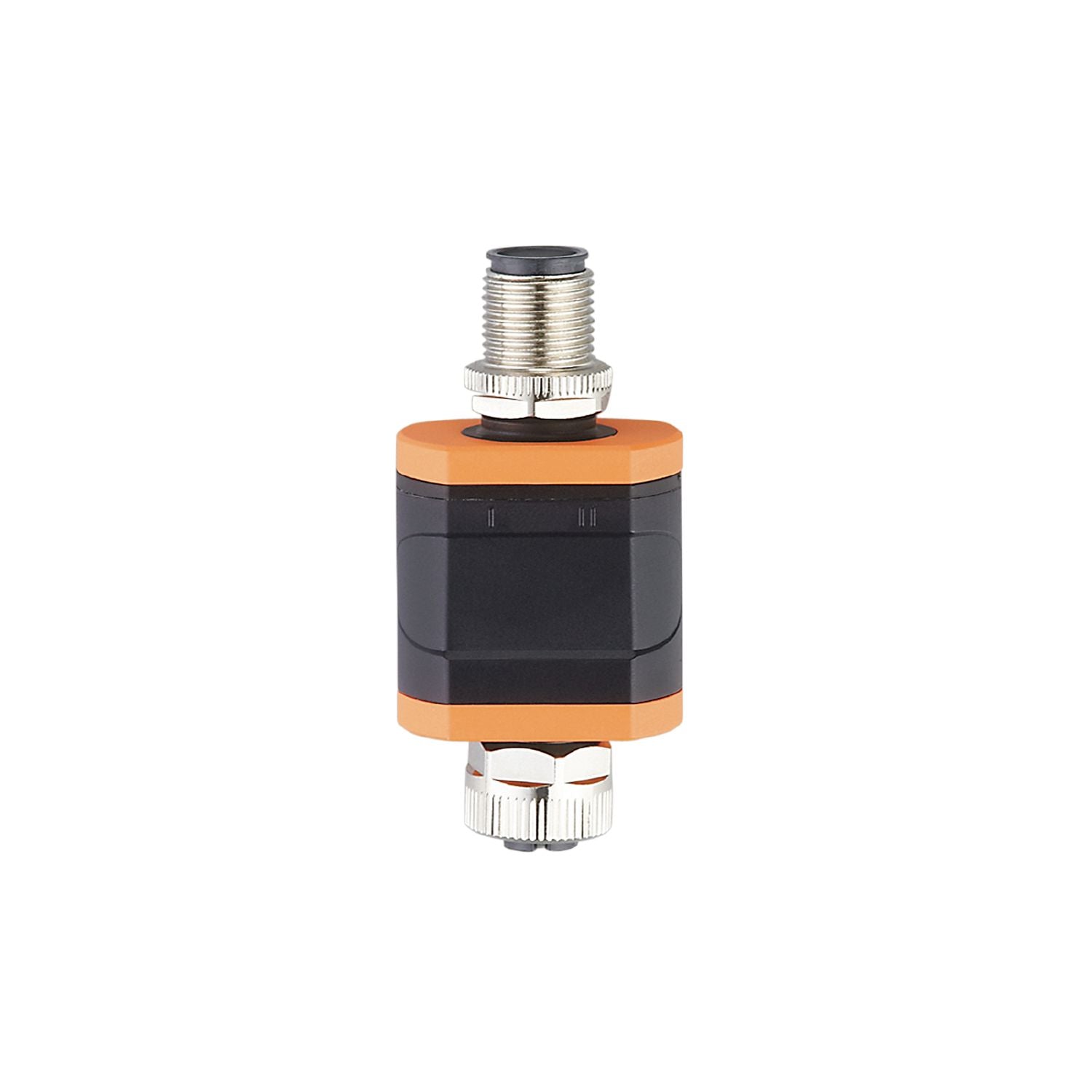

IFM DP1213 - Converter IO-Link - 4...20 mA Converter IO-Link/2x4-20mA

Number of inputs and outputs	Number of analogue outputs: 2
Communication interface	IO-Link

Operating voltage [V]	18...30 DC;(to SELV/PELV)
Nominal voltage DC [V]	24
Current consumption [mA]	300
Max. current load total [A]	0.2

Inputs / outputs

Number of inputs and outputs	Number of analogue outputs: 2

Outputs

Number of analogue outputs	2
Analogue current output [mA]	4...20
Max. load [Ω]	300
Precision analogue output [%]	0,25

Interfaces

Communication interface	IO-Link
Transmission type	COM2 (38,4 kBaud)
IO-Link revision	1.1
SDCI standard	IEC 61131-9
Profiles	Smart Sensor
SIO mode	no
Required master port type	A/B
Process data analogue	2
Min. process cycle time [ms]	3.6
Supported DeviceIDs	Type of operation DeviceID default 612

Operating conditions

Ambient temperature [°C]	-25...70
Note on ambient temperature	2000 m: -25...70 °C 3000 m: -25...64 °C 4000 m: -25...62 °C
Storage temperature [°C]	-25...70
Max. relative air humidity [%]	90;(linearly decreasing to 50 % (40 °C) non condensing)
Max. height above sea level [m]	4000
Protection	IP 67
Pollution degree	2

Tests / approvals

MTTF [years]	352

Weight [g]	91.5
Materials	housing: PA

Displays / operating elements

Display	operation 1 x LED, green analogue output 2 x LED, yellow

Accessories

Accessories (optional)	mounting clip

Remarks	For further information please see the operating instructions.
Pack quantity	1 pcs.
