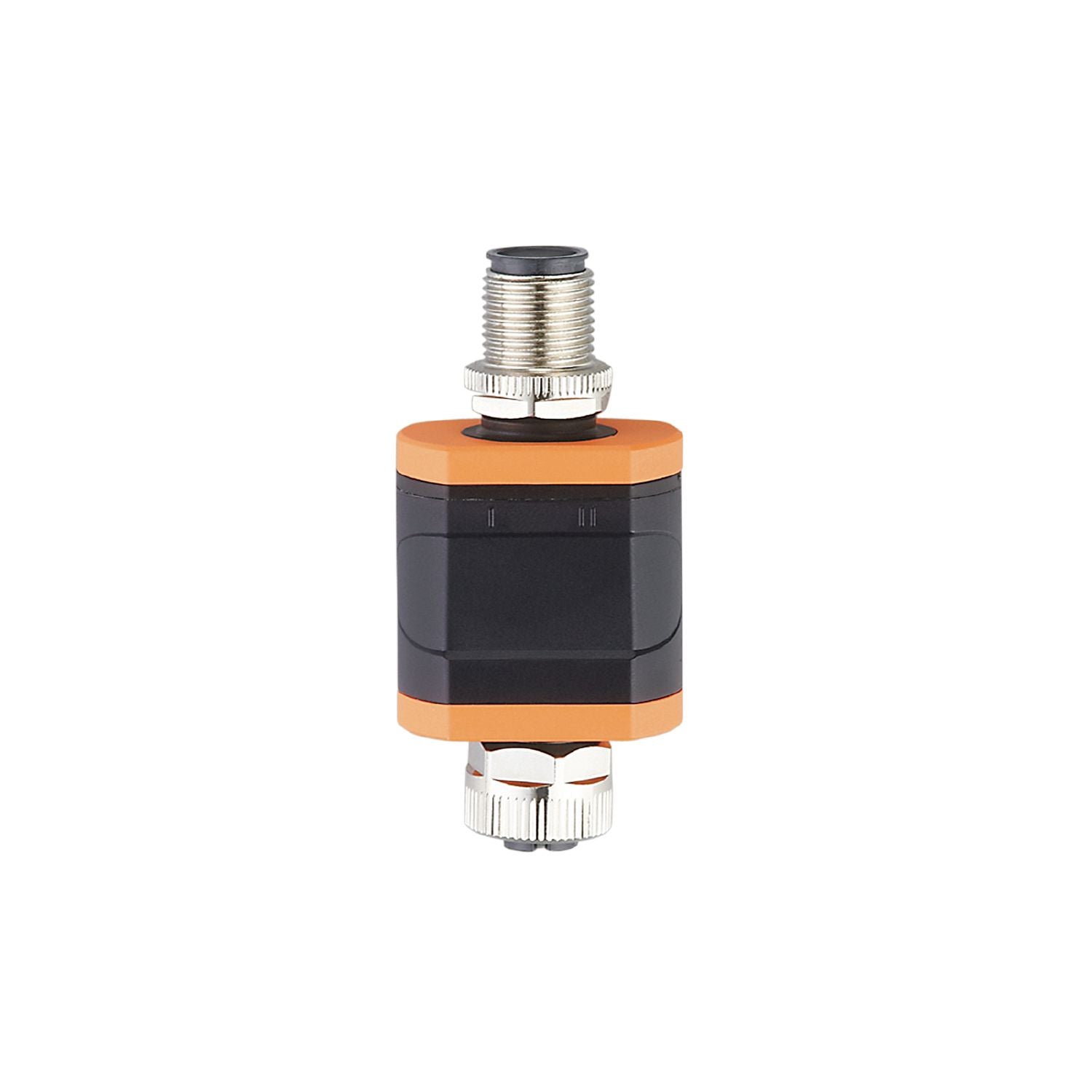

IFM DP1222 - converter 0...10 V - IO-Link Converter 2x0-10V/IO-Link

Number of inputs and outputs	Number of analogue inputs: 2
Communication interface	IO-Link

Operating voltage [V]	18...30 DC;(to SELV/PELV)
Nominal voltage DC [V]	24
Current consumption [mA]	< 380

Inputs / outputs

Number of inputs and outputs	Number of analogue inputs: 2

Inputs

Max. total current rating of inputs [mA]	200
Number of analogue inputs	2
Analogue input (voltage) [V]	0...10

Interfaces

Communication interface	IO-Link
Transmission type	COM2 (38,4 kBaud)
IO-Link revision	1.1
SDCI standard	IEC 61131-9
Profiles	Smart Sensor 0x4000: Identification and Diagnosis 0x8001: Switching Signal Channel 0x8006: Adjustable Switching Signal Channel
SIO mode	no
Required master port type	A/B
Process data analogue	2
Supported DeviceIDs	Type of operation DeviceID CMPT = 1 613 STATUS_B / CMPT = 2 (Factory setting) 1428

Min. process cycle time [ms]	4.3

Min. process cycle time [ms]	4.6

Operating conditions

Ambient temperature [°C]	-25...70
Note on ambient temperature	2000 m: -25...70 °C 3000 m: -25...64 °C 4000 m: -25...62 °C
Storage temperature [°C]	-25...70
Max. relative air humidity [%]	90;(linearly decreasing to 50 % (40 °C) non condensing)
Max. height above sea level [m]	4000
Protection	IP 67
Pollution degree	2

Tests / approvals

MTTF [years]	504

Weight [g]	92
Materials	housing: PA

Displays / operating elements

Display	operation 1 x LED, green analogue input 2 x LED, yellow

Accessories

Accessories (optional)	mounting clip

Remarks	For further information please see the operating instructions.
Pack quantity	1 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — DP1222-01 — 26.08.2022 —
