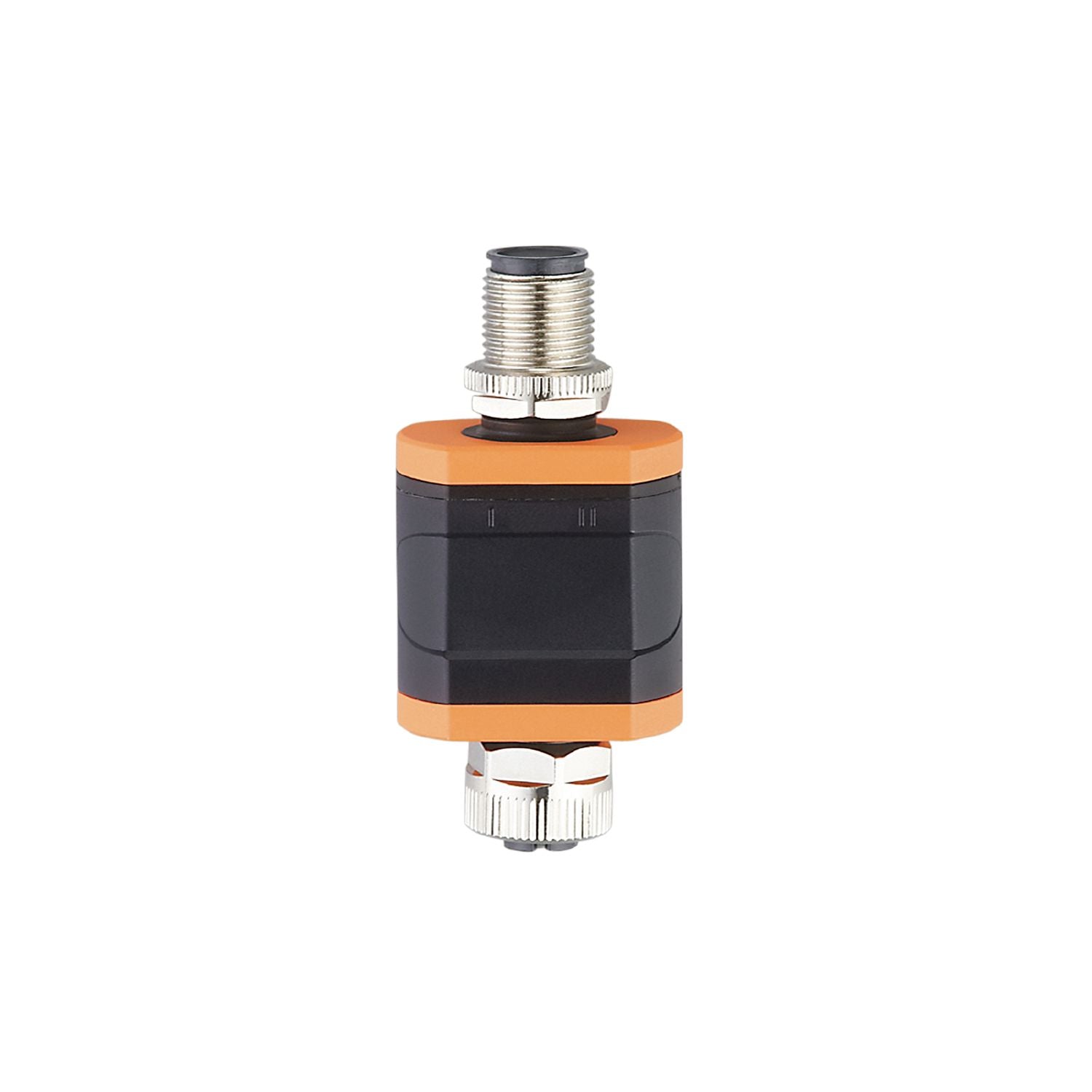

Easy setting of the output voltage via cyclical IO-Link process values. Two analogue outputs controllable via IO-Link. Digital transmission eliminates the risk of EMC interference
Number of inputs and outputs
Number of analogue outputs: 2
Communication interface
IO-Link
Operating voltage [V]
18...30 DC;(to SELV/PELV)
Nominal voltage DC [V]
24
Current consumption [mA]
300
Max. current load total [A]
0.2
Inputs / outputs
Number of inputs and outputs
Number of analogue outputs: 2
Outputs
Number of analogue outputs
2
Analogue voltage output [V]
0...10
Min. load resistance [Ω]
3000
Precision analogue output [%]
0,25
Interfaces
Communication interface
IO-Link
Transmission type
COM2 (38,4 kBaud)
IO-Link revision
1.1
SDCI standard
IEC 61131-9
Profiles
Smart Sensor
SIO mode
no
Required master port type
A/B
Process data analogue
2
Min. process cycle time [ms]
3.6
IO-Link process data (cyclical)
function
bit length
device status
4
voltage - output 1
16
voltage - output 2
16
IO-Link functions (acyclical)
application specific tag
Supported DeviceIDs
Type of operation
DeviceID
default
614
Operating conditions
Ambient temperature [°C]
-25...70
Note on ambient temperature
2000 m: -25...70 °C
3000 m: -25...64 °C
4000 m: -25...62 °C
Storage temperature [°C]
-25...70
Max. relative air humidity [%]
90;(linearly decreasing to 50 % (40 °C) non condensing)
Max. height above sea level [m]
4000
Protection
IP 67
Pollution degree
2
Tests / approvals
MTTF [years]
432
Weight [g]
91
Materials
housing: PA
Displays / operating elements
Display
operation
1 x LED, green
analogue output
2 x LED, yellow
Accessories
Accessories (optional)
mounting clip
Remarks
For further information please see the operating instructions.
Pack quantity
1 pcs.
