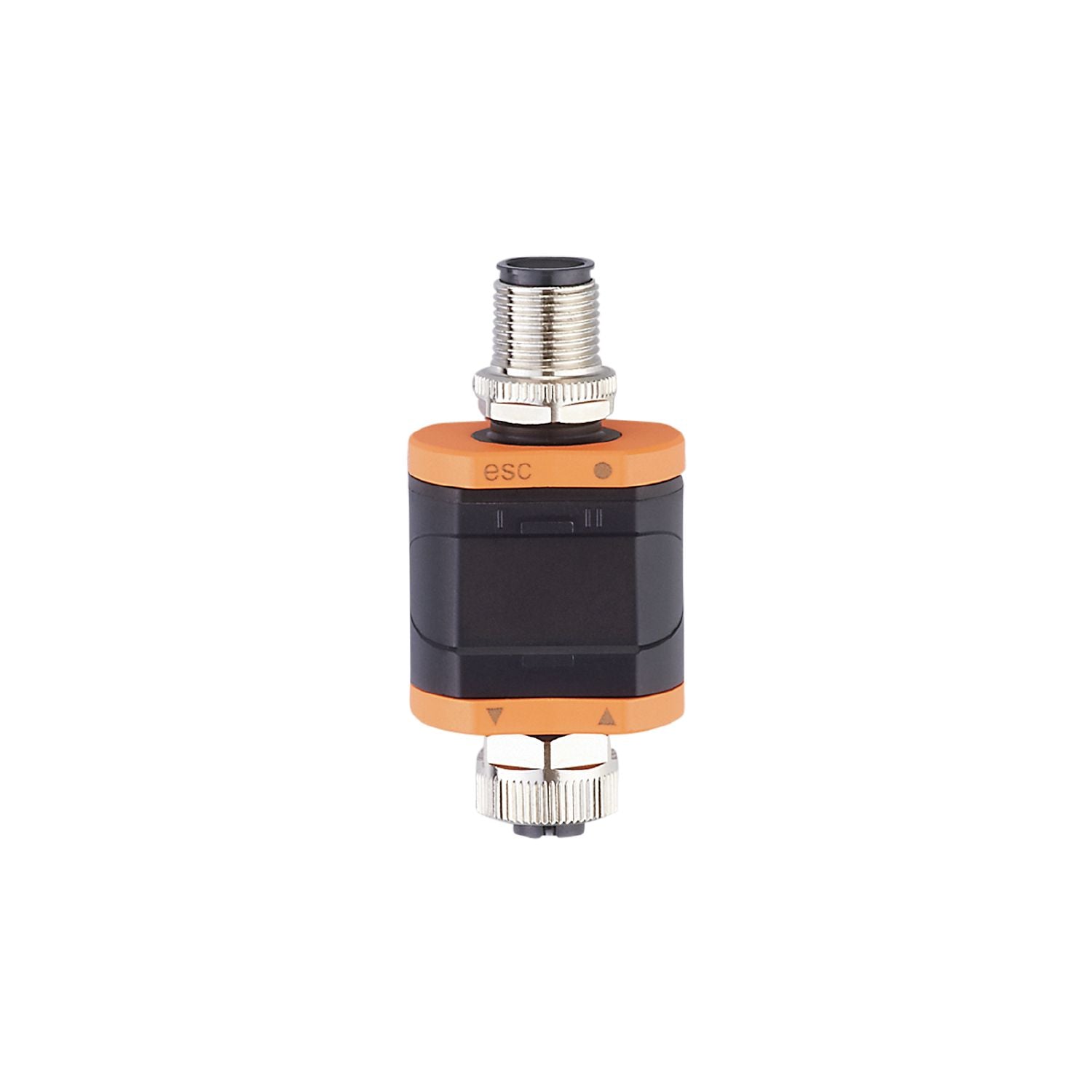

Number of digital inputs: 1; Number of digital outputs: 2
Communication interface
IO-Link
DP2122_FREQ / CMPT = 1
Measuring range [Hz]
0.1...2000
DP2122_REVL / CMPT = 2
Measuring range [U/min]
1...120000
Operating voltage [V]
18...30 DC;(to SELV/PELV)
Nominal voltage DC [V]
24
Current consumption [mA]
< 380
Max. current load total [A]
0.2
Inputs / outputs
Number of inputs and outputs
Number of digital inputs: 1; Number of digital outputs: 2
Inputs
Number of digital inputs
1;(IEC61131-2)
Input current limitation [mA]
200
Outputs
Electrical design
PNP/NPN
Number of digital outputs
2
Output function
normally open / normally closed;(parameterisable)
Short-circuit proof
yes
Measuring/setting range
DP2122_FREQ / CMPT = 1
Measuring range [Hz]
0.1...2000
DP2122_REVL / CMPT = 2
Measuring range [U/min]
1...120000
Accuracy / deviations
Hysteresis [%]
0.5...100
Interfaces
Communication interface
IO-Link
Transmission type
COM2 (38,4 kBaud)
IO-Link revision
1.1
SDCI standard
IEC 61131-9
Profiles
Smart Sensor: Measuring Sensor (High resolution, Disable function); Identification and Diagnosis; Switching Signal Channel; Adjustable Switching Signal Channel
SIO mode
yes
Required master port type
A
Process data binary
1
Min. process cycle time [ms]
4.3
Supported DeviceIDs
Type of operation
DeviceID
FREQ / CMPT = 1
1167
REVL / CMPT = 2
1294
Operating conditions
Ambient temperature [°C]
-25...60
Note on ambient temperature
2000 m: -25...60 °C
3000 m: -25...53 °C
4000 m: -25...51 °C
Storage temperature [°C]
-25...60
Max. relative air humidity [%]
90;(linearly decreasing to 50 % (40 °C) non condensing)
Max. height above sea level [m]
4000
Protection
IP 67
Pollution degree
2
Tests / approvals
MTTF [years]
317
Weight [g]
83.8
Weight (without accessories and packaging) [g]
35
Dimensions [mm]
63 x 30 x 24
Materials
housing: PA
Displays / operating elements
Display
operation
1 x LED, green
7-segment LED display, green/red configurable
Operating elements
2
push ring
Accessories
Accessories (optional)
mounting clip
Remarks
For further information please see the operating instructions.
Pack quantity
1 pcs.
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — DP2122-00 — 10.05.2023 —
