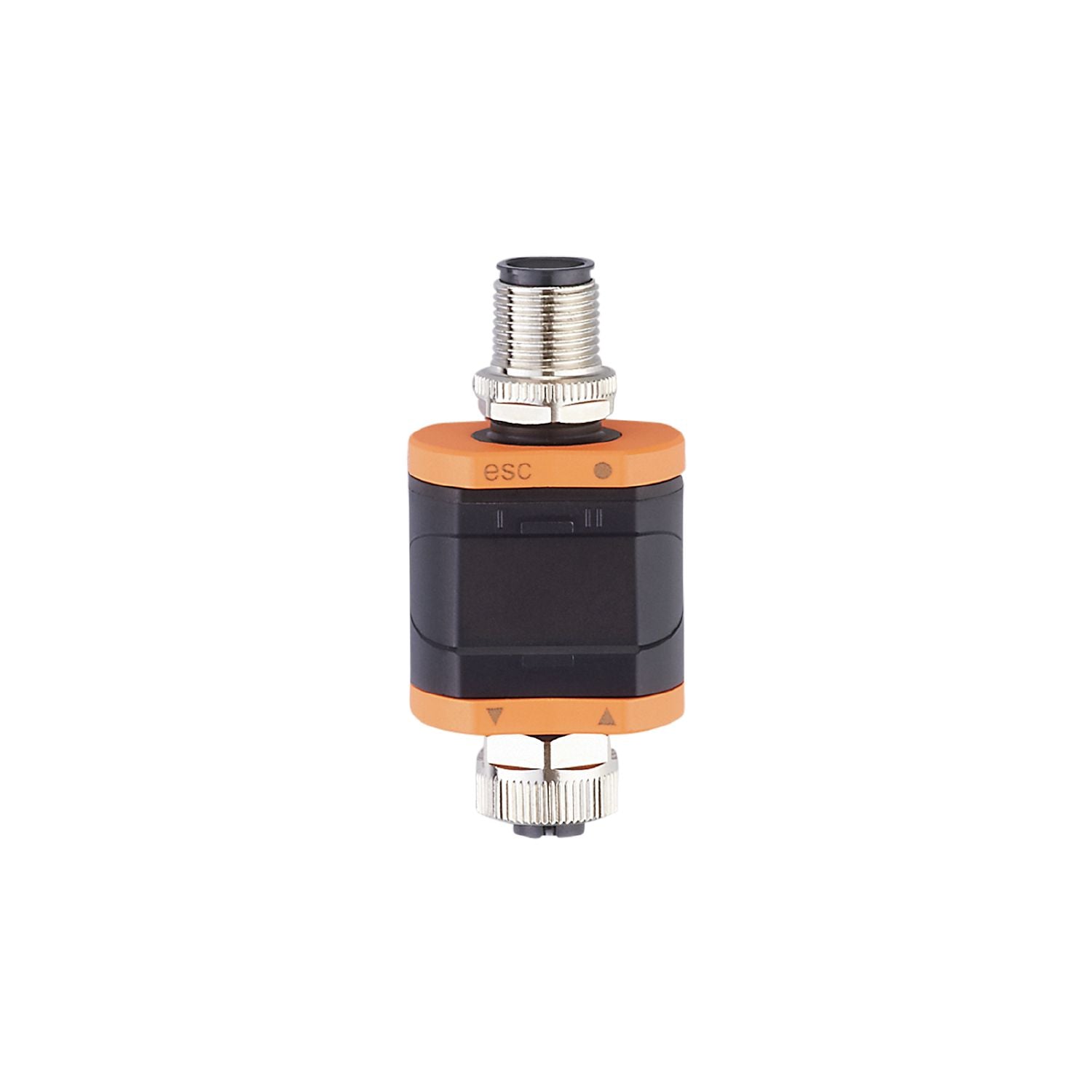

IFM DP2200 - Evaluation system and display for analogue signals Analog Threshold Displ./4-20mA

For the reliable limit value monitoring of analogue sensors.
Clearly visible LED display with red/green colour change.
Compact housing with high protection rating

Application	decentralised display, preprocessing and conversion of analogue signals

Operating voltage [V]	18...30 DC;(to SELV/PELV)
Nominal voltage DC [V]	24
Current consumption [mA]	30...900
Max. current load total [A]	0.8

Inputs / outputs

Number of inputs and outputs	Number of analogue inputs: 1; Number of digital outputs: 1; Number of analogue outputs: 1

Inputs

Sensor supply of the inputs	from operating voltage
Number of analogue inputs	1
Analogue input (current) [mA]	4...20

Outputs

Number of digital outputs	1
Voltage range DC [V]	10...30
Output function	normally open / normally closed;(parameterisable)
Max. current load per output [mA]	50
Number of analogue outputs	1
Analogue current output [mA]	4...20
Resolution of analogue output	10 Bit

Accuracy / deviations

Accuracy	0.75;(% of the final value of the measuring range analogue output)

Interfaces

Communication interface	IO-Link
Supported DeviceIDs	Type of operation DeviceID default 610

Transmission type	COM2 (38,4 kBaud)
IO-Link revision	1.1
SDCI standard	IEC 61131-9
Profiles	Smart Sensor
SIO mode	yes
Required master port type	A
Process data analogue	1
Process data binary	1
Min. process cycle time [ms]	3

Operating conditions

Ambient temperature [°C]	-25...60
Storage temperature [°C]	-25...70
Max. relative air humidity [%]	90;(linearly decreasing to 50 % (40 °C); non condensing)
Max. height above sea level [m]	4000
Protection	IP 67
Pollution degree	2

Tests / approvals

MTTF [years]	373

Weight [g]	108
Dimensions [mm]	63 x 30 x 24
Materials	PA

Displays / operating elements

Display	switching status LED, yellow operation LED, green 7-segment LED display, red/green 4-digit parameterisable digit height 6,8 mm digit width 3,8 mm

Accessories

Accessories (optional)	mounting clip

Remarks	For further information please see the operating instructions.
Pack quantity	1 pcs.

Electrical connection - plug

	Connector: 1 x M12; coding: A

Electrical connection - socket

	Connector: 1 x M12; coding: A
