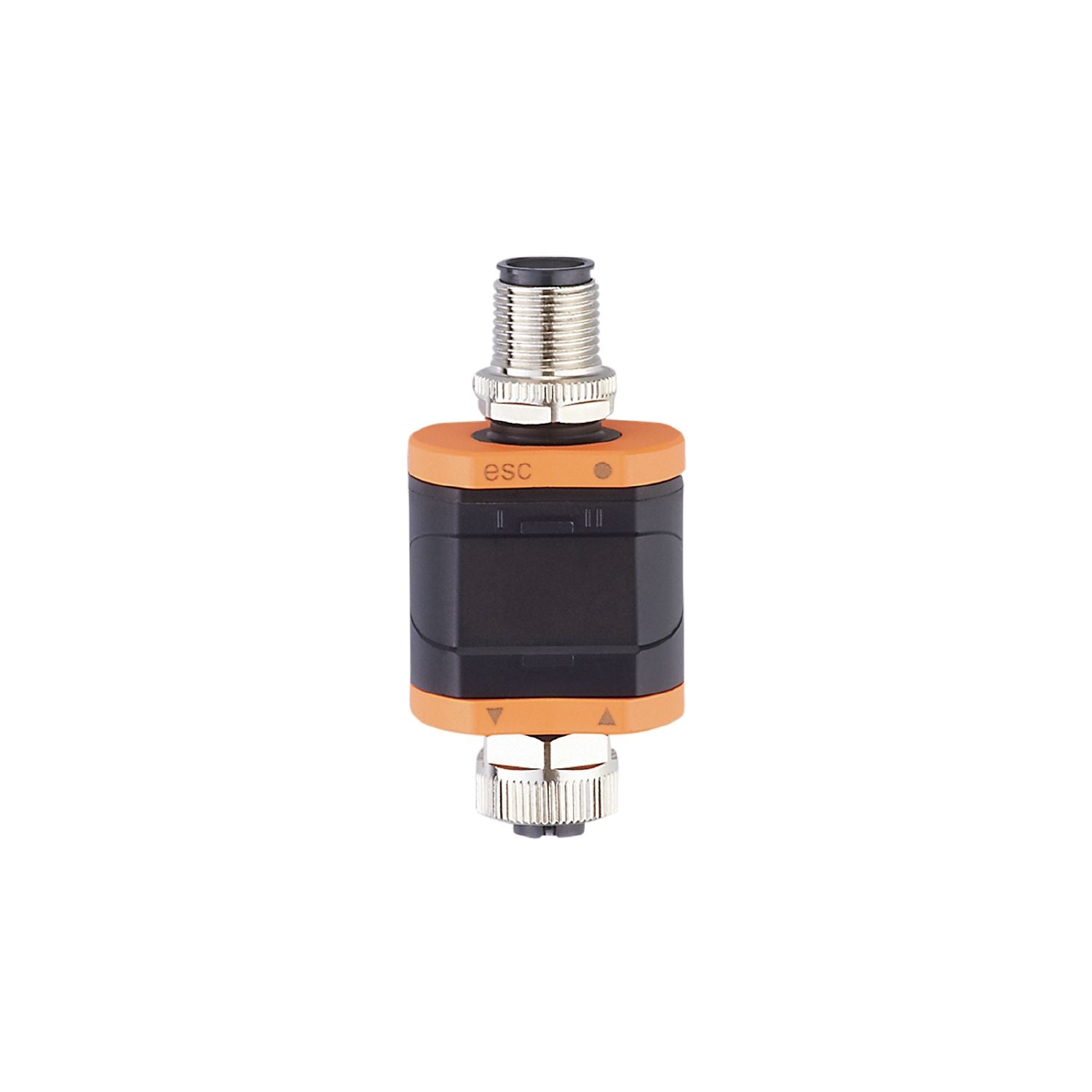

IFM DP2402 - Pulse stretcher Monitoring Display-Pulse ext

Electrical design	PNP
Output function	normally open / normally closed;(parameterisable)
Communication interface	IO-Link
Dimensions [mm]	63 x 30 x 24

Operating voltage [V]	18...30 DC;(to SELV/PELV)
Nominal voltage DC [V]	24
Current consumption [mA]	< 380
Max. current load total [A]	0.2

Inputs / outputs

Number of inputs and outputs	Number of digital inputs: 2; Number of digital outputs: 2

Inputs

Number of digital inputs	2;(IEC61131-2)
Input current limitation [mA]	200

Outputs

Electrical design	PNP
Number of digital outputs	2
Output function	normally open / normally closed;(parameterisable)
Short-circuit proof	yes

Measuring/setting range

Sampling rate [Hz]	< 2000

Interfaces

Communication interface	IO-Link
Usage type	parameter setting
Transmission type	COM2 (38,4 kBaud)
IO-Link revision	1.1
SDCI standard	IEC 61131-9
SIO mode	yes
Required master port type	A
Process data binary	2
Supported DeviceIDs	Type of operation DeviceID default 1168

Operating conditions

Ambient temperature [°C]	-25...60
Note on ambient temperature	2000 m: -25...60 °C 3000 m: -25...53 °C 4000 m: -25...51 °C Bei folgender Betriebshöhe ist das Derating der Umgebungstemperatur in der Betriebsanleitung zu beachten: > 2000 m
Storage temperature [°C]	-25...60
Max. relative air humidity [%]	90;(linearly decreasing to 50 % (40 °C) non condensing)
Max. height above sea level [m]	4000
Protection	IP 67
Pollution degree	2

Tests / approvals

MTTF [years]	317

Weight [g]	84.2
Weight (without accessories and packaging) [g]	35
Dimensions [mm]	63 x 30 x 24
Materials	housing: PA

Displays / operating elements

Display	operation 1 x LED, green switching output 2 x LED, yellow 7-segment LED display, red
Operating elements	2 push ring

Accessories

Accessories (optional)	mounting clip

Remarks	For further information please see the operating instructions.
Pack quantity	1 pcs.
