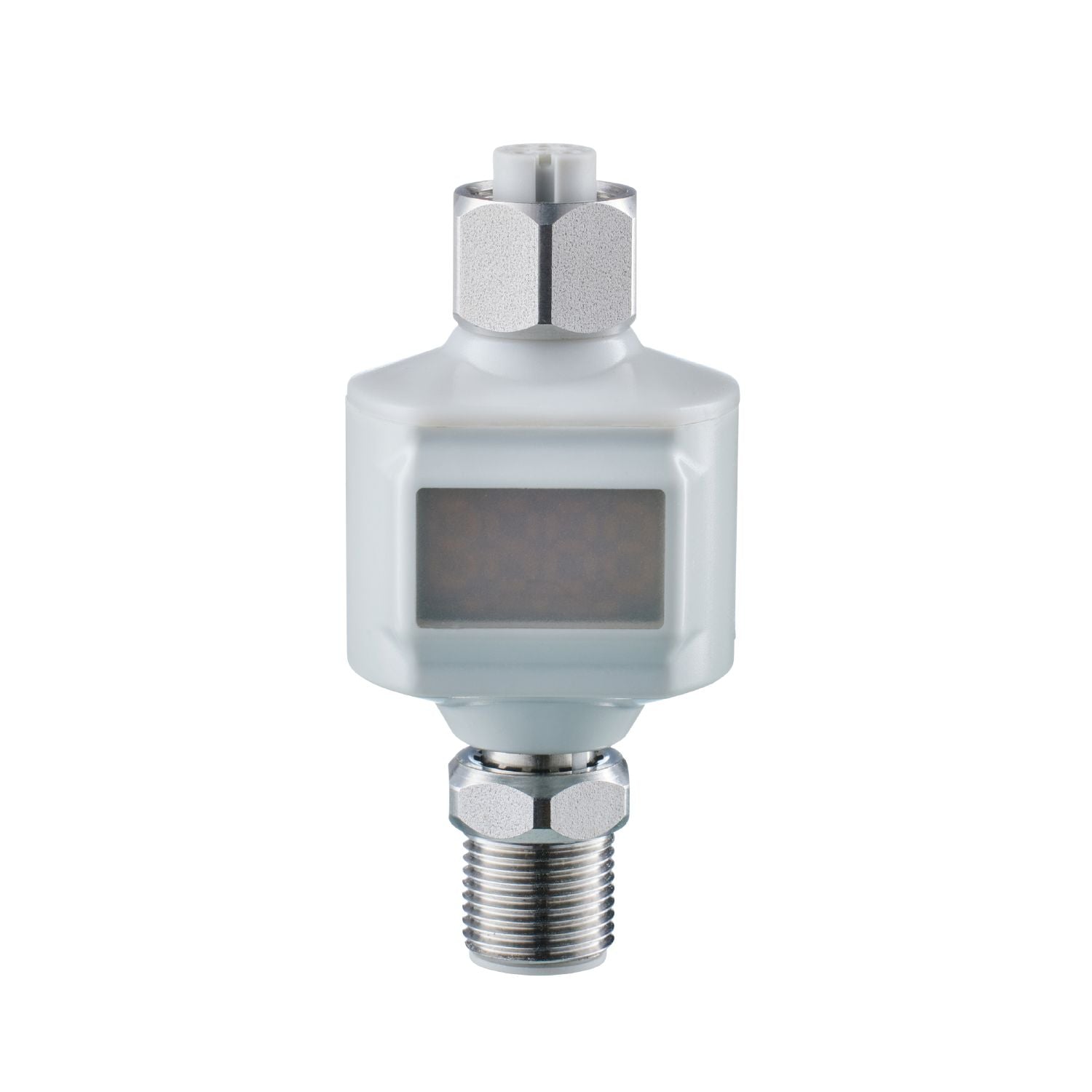

IFM DP3222 - converter 0...10 V - IO-Link CONV 2x0-10V/IO-LINK/IP69K

compact design with high protection rating for use in wet environments

Number of inputs and outputs	Number of analogue inputs: 2
Communication interface	IO-Link

Application	converter from analogue voltage signals to IO-Link; for connecting analogue sensors to an IO-Link system; for use in wet environments; indoor use

Operating voltage [V]	18...30 DC;((in wet environments: 18...28 V) to SELV/PELV)
Nominal voltage DC [V]	24
Current consumption [mA]	300

Inputs / outputs

Number of inputs and outputs	Number of analogue inputs: 2

Inputs

Max. total current rating of inputs [mA]	200
Number of analogue inputs	2
Analogue input (voltage) [V]	0...10

Interfaces

Communication interface	IO-Link
Transmission type	COM2 (38,4 kBaud)
IO-Link revision	1.1
SDCI standard	IEC 61131-9
Profiles	Smart Sensor 0x4000: Identification and Diagnosis 0x8001: Switching Signal Channel 0x8006: Adjustable Switching Signal Channel
SIO mode	no
Required master port type	A/B
Process data analogue	2
Supported DeviceIDs	Type of operation DeviceID STATUS_B / CMPT = 2 (Factory setting) 1428

Min. process cycle time [ms]	4.3

Min. process cycle time [ms]	4.6

Operating conditions

Ambient temperature [°C]	-25...70
Note on ambient temperature	2000 m: -25...70 °C 3000 m: -25...64 °C 4000 m: -25...62 °C
Storage temperature [°C]	-25...70
Max. relative air humidity [%]	90;(linearly decreasing to 50 % (40 °C) non condensing)
Max. height above sea level [m]	4000
Protection	IP 67; IP 69K
Pollution degree	2

Tests / approvals

MTTF [years]	504

Weight [g]	78.6
Weight (without accessories and packaging) [g]	27
Dimensions [mm]	63 x 30 x 24.5
Materials	housing: PA
Material nut	stainless steel (1.4404 / 316L)
Sealing material	FKM

Displays / operating elements

Display	operation 1 x LED, green analogue input 2 x LED, yellow

Remarks	For further information please see the operating instructions.
Pack quantity	1 pcs.

Electrical connection - plug

	Connector: 1 x M12, straight; coding: A; Locking: stainless steel (1.4404 / 316L)

Electrical connection - socket

	Connector: 1 x M12, straight; coding: A; Locking: stainless steel (1.4404 / 316L); Sealing: FKM

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — DP3222-00 — 26.03.2024 —
