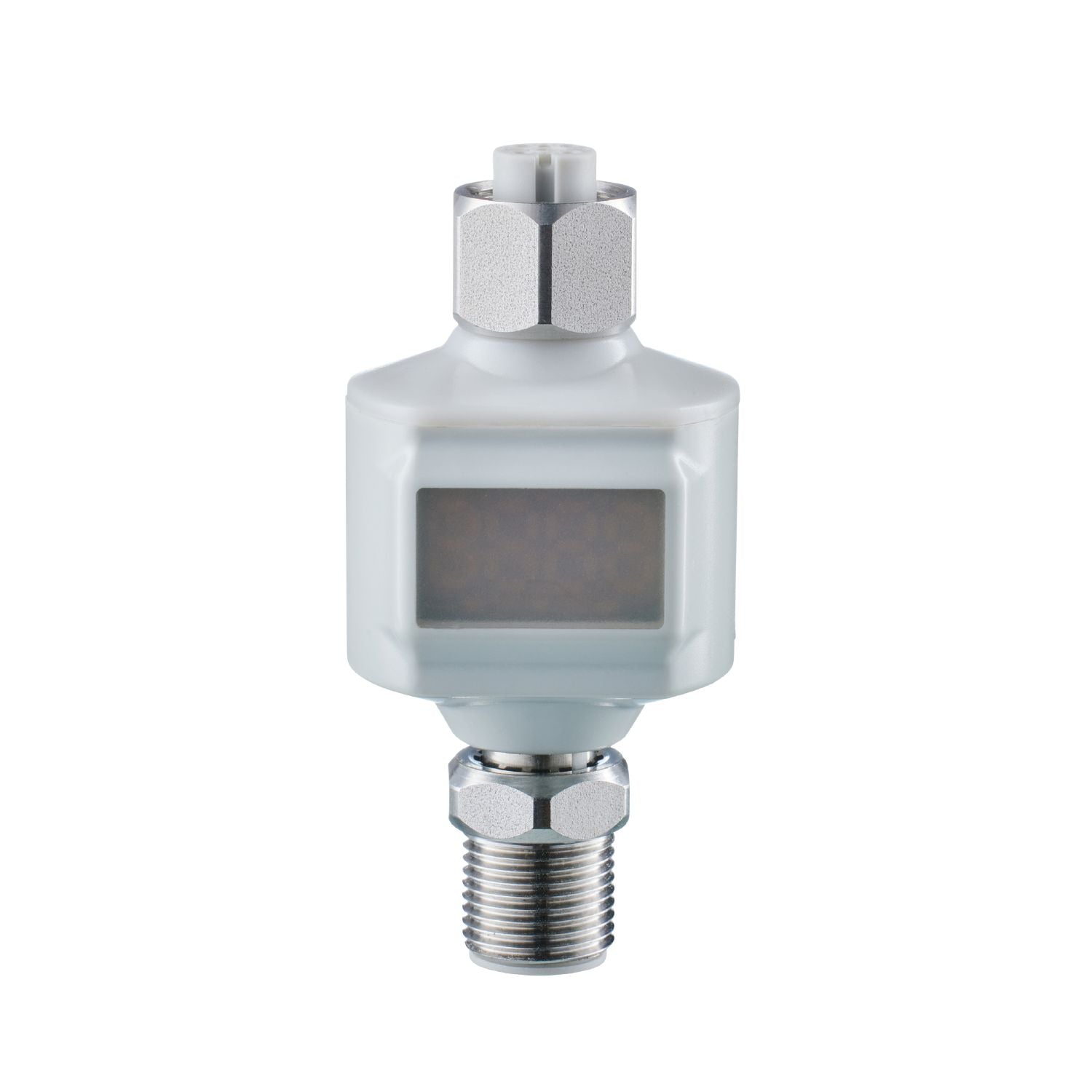

compact design with high protection rating for use in wet environments
Number of inputs and outputs
Number of analogue outputs: 2
Communication interface
IO-Link
Application
analogue outputs controllable via IO-Link; for connecting analogously controlled actuators to an IO-Link system; for use in wet environments; indoor use
Operating voltage [V]
18...30 DC;((in wet environments: 18...28 V) to SELV/PELV)
Nominal voltage DC [V]
24
Current consumption [mA]
300
Max. current load total [A]
0.2
Inputs / outputs
Number of inputs and outputs
Number of analogue outputs: 2
Outputs
Number of analogue outputs
2
Analogue voltage output [V]
0...10
Min. load resistance [Ω]
3000
Precision analogue output [%]
0,25
Interfaces
Communication interface
IO-Link
Transmission type
COM2 (38,4 kBaud)
IO-Link revision
1.1
SDCI standard
IEC 61131-9
Profiles
Smart Sensor
SIO mode
no
Required master port type
A/B
Process data analogue
2
Min. process cycle time [ms]
3.6
IO-Link process data (cyclical)
function
bit length
device status
4
voltage - output 1
16
voltage - output 2
16
IO-Link functions (acyclical)
application specific tag
Supported DeviceIDs
Type of operation
DeviceID
default
614
Operating conditions
Ambient temperature [°C]
-25...70
Note on ambient temperature
2000 m: -25...70 °C
3000 m: -25...64 °C
4000 m: -25...62 °C
Storage temperature [°C]
-25...70
Max. relative air humidity [%]
90;(linearly decreasing to 50 % (40 °C) non condensing)
Max. height above sea level [m]
4000
Protection
IP 67; IP 69K
Pollution degree
2
Tests / approvals
MTTF [years]
432
Weight [g]
78.5
Weight (without accessories and packaging) [g]
26.5
Dimensions [mm]
63 x 30 x 24.5
Materials
housing: PA
Material nut
stainless steel (1.4404 / 316L)
Sealing material
FKM
Displays / operating elements
Display
operation
1 x LED, green
analogue output
2 x LED, yellow
Remarks
For further information please see the operating instructions.
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — DP3223-00 — 26.03.2024 —
