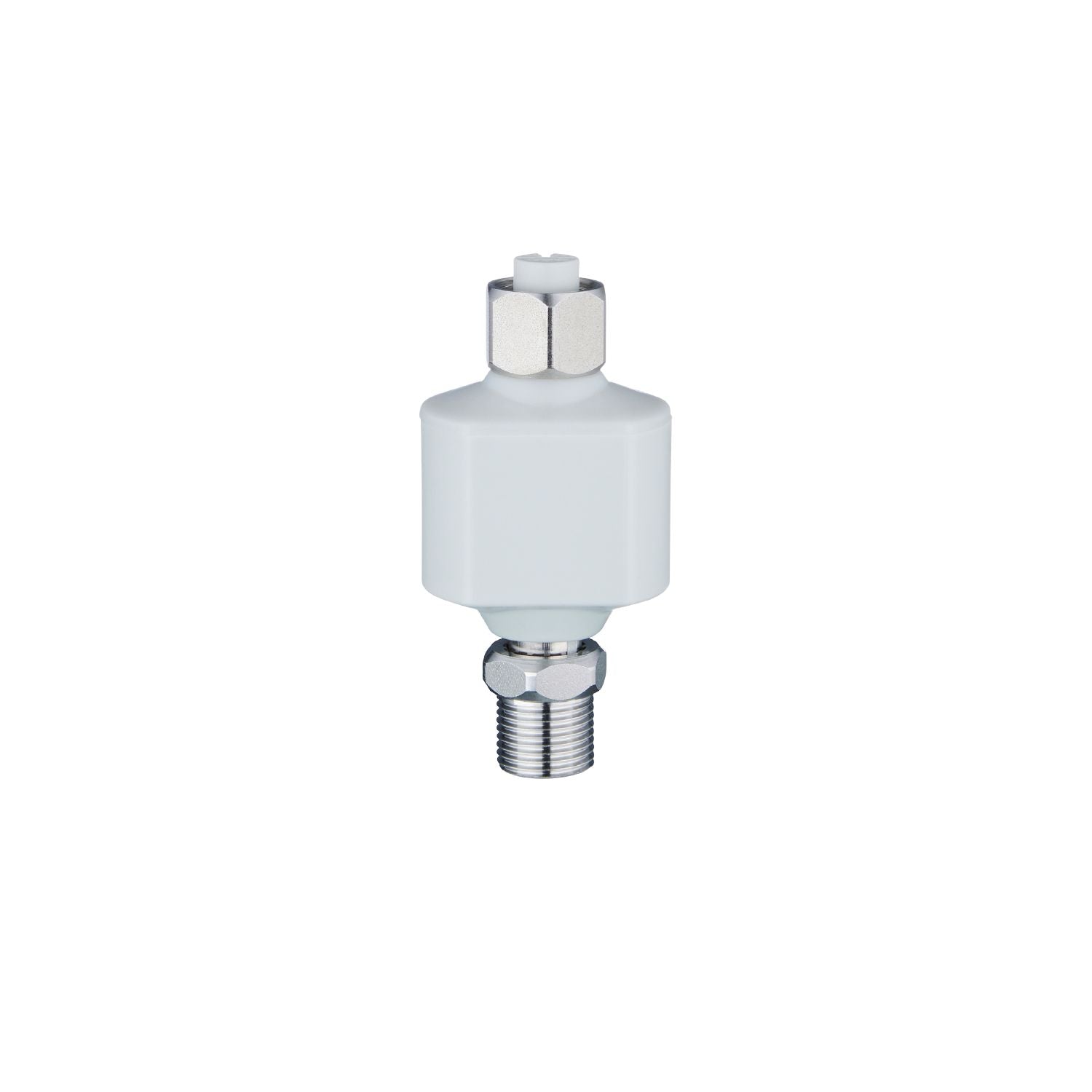

IFM DP3613 - relay adapter RELAIS ADAPTER/2xNC/IP69K

Compact design with high protection rating in hygienic applications.
Reliable M12 connection technology.
2-channel version.
Wear and bounce-free semiconductor relays.
Electrical separation between input and output

Output function	normally closed
Dimensions [mm]	63 x 30 x 23

Operating voltage [V]	18...30 DC;((in wet environments: 18...28 V) ; to SELV/PELV)
Nominal voltage DC [V]	24
Current consumption [mA]	< 10

Operating voltage [V]	18...28 DC

Inputs / outputs

Number of inputs and outputs	Number of digital inputs: 2; Number of relay outputs: 2

Inputs

Number of digital inputs	2;(type 3 (IEC 61131-2))

Outputs

Voltage range DC [V]	0...32;(to SELV/PELV)
Voltage range AC [V]	0...20;((in wet environments: 0...16 V); to SELV/PELV)
Output function	normally closed
Max. current load per output [mA]	1000;(socket pin 1: 2000 mA)
Number of relay outputs	2
Switching frequency AC [Hz]	1
Switching frequency DC [Hz]	1
Notes on switching frequency [Hz]	no capacitive loads

Operating conditions

Ambient temperature [°C]	-25...60
Note on ambient temperature	2000 m: -25...60 °C 3000 m: -25...55 °C 4000 m: -25...52 °C
Storage temperature [°C]	-25...70
Max. relative air humidity [%]	90;(linearly decreasing to 50 % (40 °C) non condensing)
Max. height above sea level [m]	4000
Protection	IP 67; IP 69K
Pollution degree	2;(before installation and when the device is replaced)

Tests / approvals

MTTF [years]	942

Weight [g]	75.3
Weight (without accessories and packaging) [g]	35
Dimensions [mm]	63 x 30 x 23
Materials	housing: PA; threaded sleeve: stainless steel (1.4404 / 316L)
Sealing material	FKM

Remarks	For further information please see the operating instructions.
Pack quantity	1 pcs.

Electrical connection - plug

	Connector: 1 x M12, straight; coding: A; Sealing: FKM

Electrical connection - socket

	Connector: 1 x M12, straight; coding: A; Sealing: FKM

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — DP3613-00 — 26.03.2024 —
