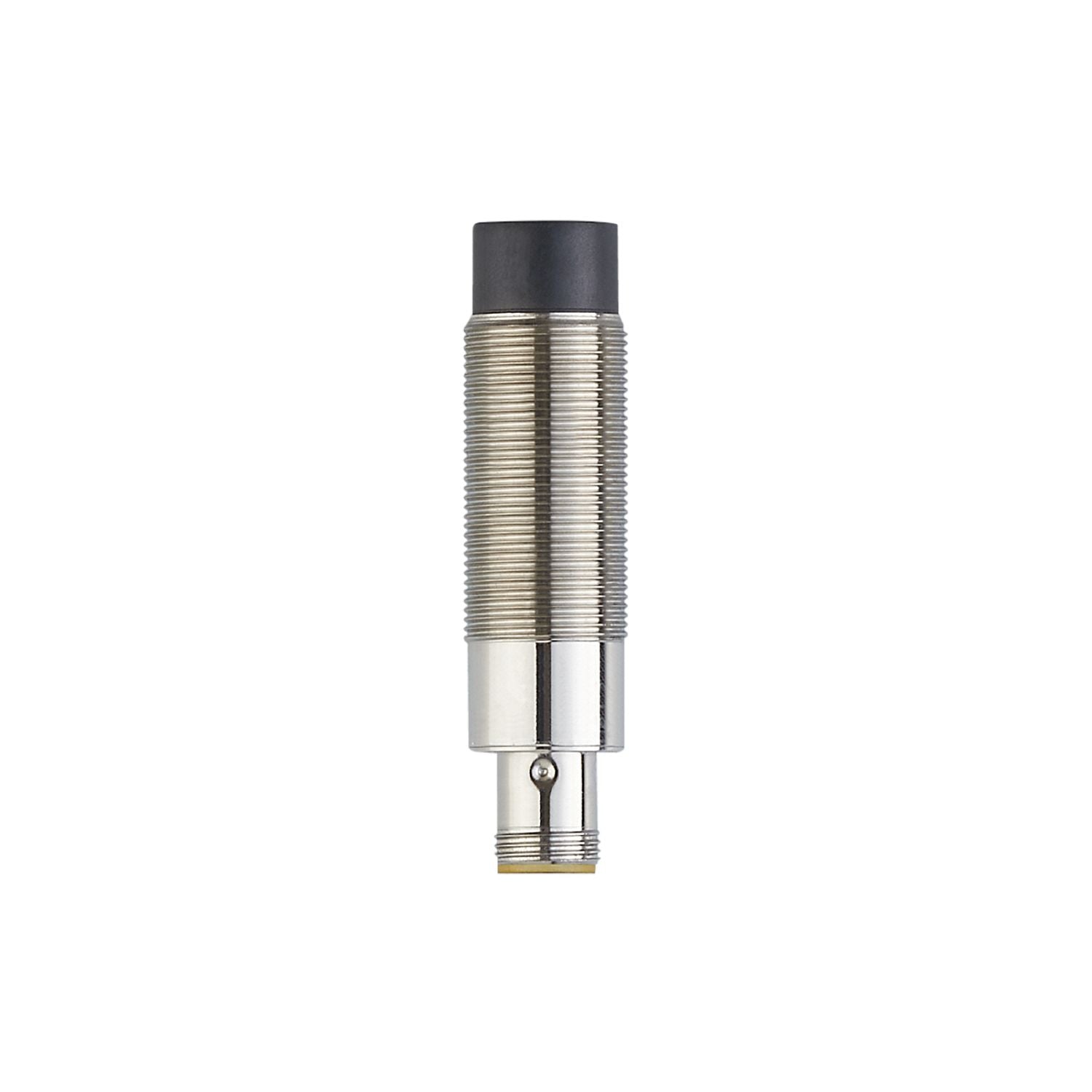

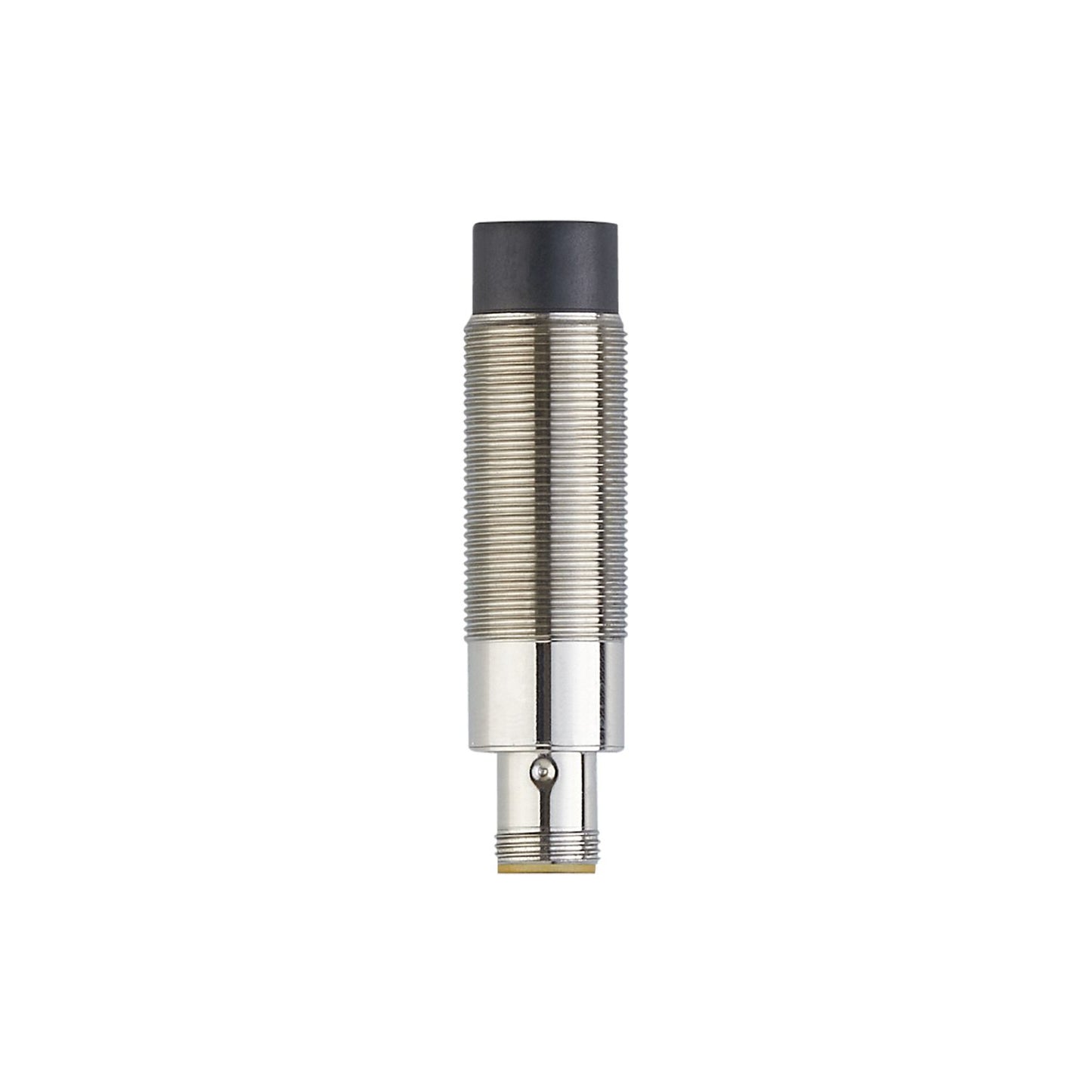

RFID HF compact unit for non-flush installation. All in one unit: antenna, evaluation and CANopen interface. High protection rating for the requirements of harsh industrial environments. RFID standard ISO14443A
Radio approval for
China; EU/RED; USA; Canada; United Kingdom
Operating voltage [V]
9...32 DC
Current consumption [mA]
≤ 50 (24 V) / ≤ 80 (12 V)
Protection class
III
Operating frequency [MHz]
13,56
RFID standard
ISO 14443A
Detection zone
Distance to the ID tag [mm]
≤ 20
Interfaces
Communication interface
CAN
CAN
Protocol
CANopen
Operating conditions
Ambient temperature [°C]
-20...60
Storage temperature [°C]
-25...80
Protection
IP 67; IP 69K
Tests / approvals
EMC
EN 301489-3
V 2.1.1
Shock resistance
EN 60068-2-27
40 g 6 ms / repetitive
EN 60068-2-27
50 g 11 ms / not repetitive
Vibration resistance
EN 60068-2-6
20 g 10...2000 Hz
Radio approval
EN 300 330 V2.1.1
UL approval
Ta
-20…80 °C
Enclosure type
Type 1
power supply
Limited Voltage/Current
File number UL
E205959
Weight [g]
106.2
Housing
threaded type
Dimensions [mm]
M18 x 1 / L = 70
Thread designation
M18 x 1
Materials
housing: stainless steel; Protective cover: PPS; LED window: PEI
Displays / operating elements
Display
Preoperational Mode
1 x LED, green lights
Operational Mode
1 x LED, green flashing
tag communication
1 x LED, yellow lights
errors
1 x LED, red flashing
Pack quantity
1 pcs.
Electrical connection
Connector: 1 x M12, rotatable, locking; coding: A
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — DTC125-00 — 30.03.2023 —
