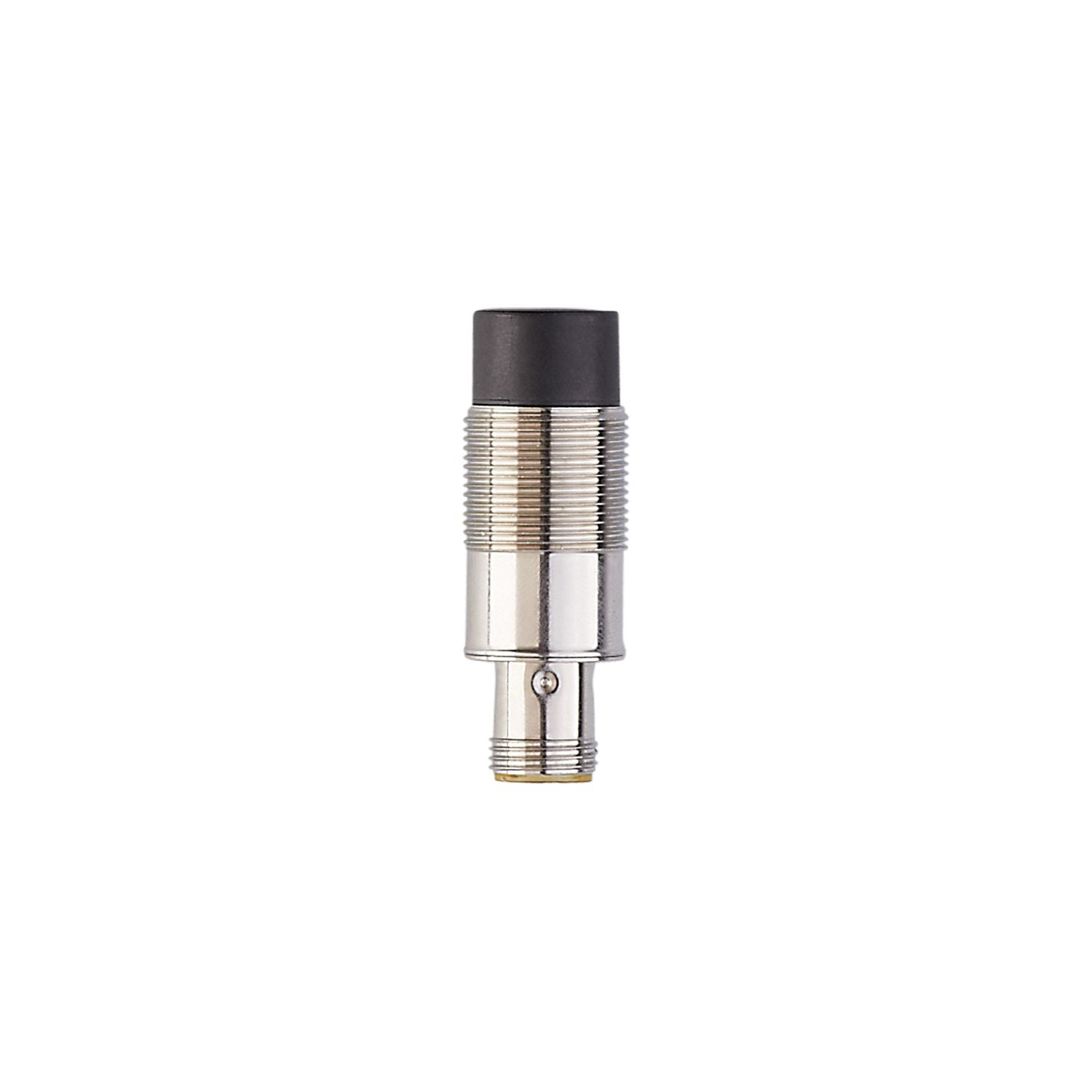

For the reliable identification of ID tags on workpiece carriers and products. Robust stainless steel housing for applications in mounting, feeding and handling technology. High protection rating for the requirements of harsh industrial environments. RFID read/write head HF for non-flush mounting
Application
detection of objects on transport equipment
Radio approval for
USA; Canada; EU/RED; Australia; Japan; China; Taiwan; India; Singapore; South Africa; Israel
Note on radio approval
The list of countries applying the European Radio Equipment Directive 2014/53/EU (RED) can be found under “Downloads”.
Operating voltage [V]
19.2...28.8 DC
Current consumption [mA]
< 50
Protection class
III
Operating frequency [MHz]
13,56
RFID standard
ISO 15693
Detection zone
Distance write/read head front [mm]
180
Distance write/read head side [mm]
90
Distance to the ID tag [mm]
referred to 30 mm coin tag; I-CODE SLI
:
≤ 40
Interfaces
Communication interface
IO-Link
Transmission type
COM2 (38,4 kBaud)
IO-Link revision
1.1
SDCI standard
IEC 61131-9
Profiles
Smart Sensor: Device Identification
SIO mode
no
Required master port type
A
Supported DeviceIDs
Type of operation
DeviceID
default
967
Operating conditions
Ambient temperature [°C]
-20...60
Storage temperature [°C]
-25...80
Protection
IP 67; IP 69K
Tests / approvals
Shock resistance
EN 60068-2-27
40 g 6 ms / repetitive
EN 60068-2-27
50 g 11 ms / not repetitive
Vibration resistance
EN 60068-2-6
20 g 10...2000 Hz
Weight [g]
120.5
Housing
cylindrical
Mounting
non-flush mountable
Dimensions [mm]
M18 x 1 / L = 50
Thread designation
M18 x 1
Materials
housing: stainless steel; Protective cover: PPS; LED window: PEI
Displays / operating elements
Display
operation
1 x LED, green
tag communication
1 x LED, yellow
Accessories
Items supplied
nut 2 x M18 x 1
Pack quantity
1 pcs.
Electrical connection
Connection
Connector: 1 x M12; coding: A
