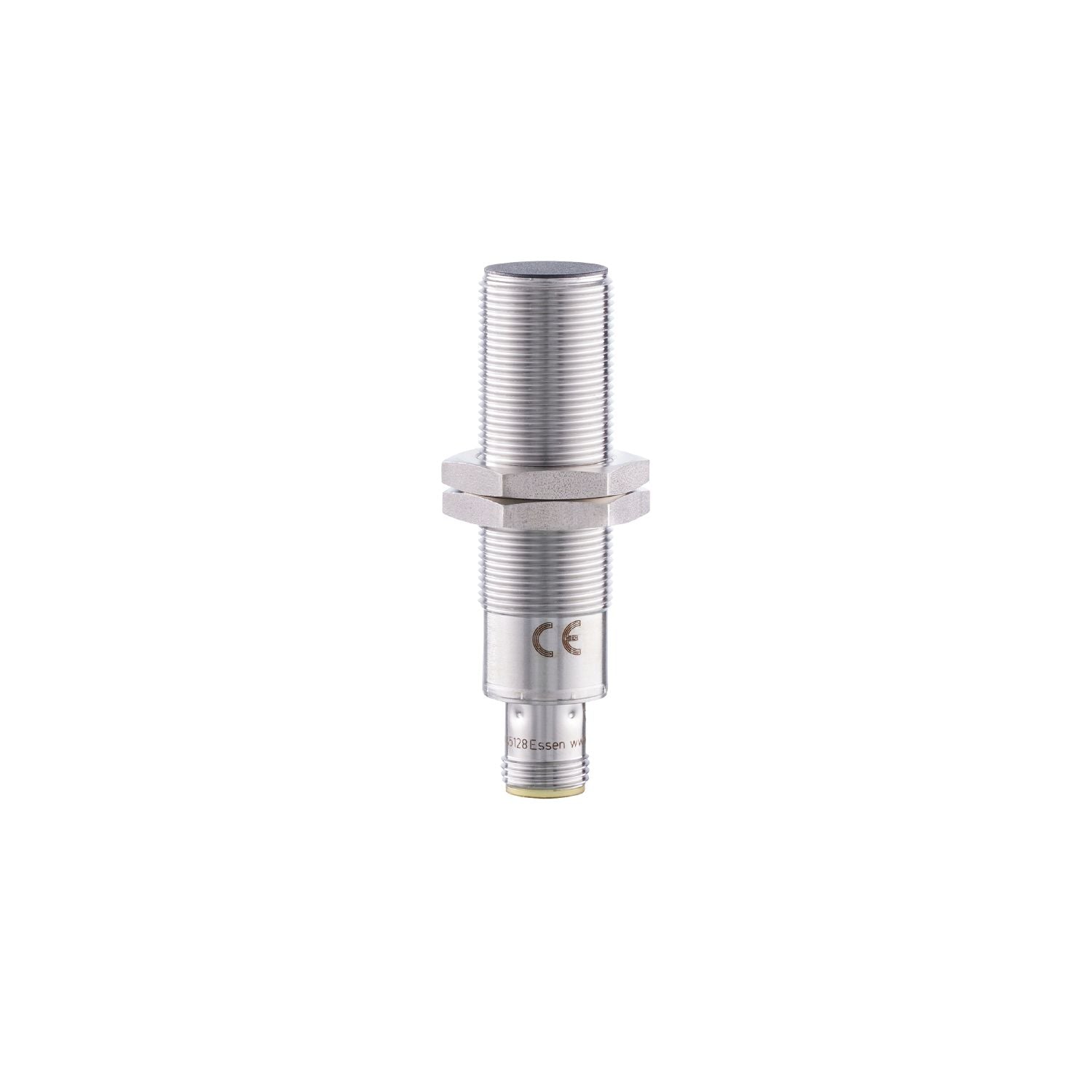

IFM DTI424 - RFID read/write head HF DTRHF GBRWIOUS03

For the reliable identification of ID tags on workpiece carriers and products.
Robust stainless steel housing for applications in mounting, feeding and handling technology.
High protection rating for the requirements of harsh industrial environments.
RFID read/write head HF for flush mounting

Application	detection of objects on transport equipment
Radio approval for	USA; Canada; EU/RED; Australia; China; Singapore; Japan; Taiwan; India
Note on radio approval	The list of countries applying the European Radio Equipment Directive 2014/53/EU (RED) can be found under “Downloads”.

Operating voltage [V]	19.2...28.8 DC
Current consumption [mA]	< 50
Protection class	III
Operating frequency [MHz]	13,56
RFID standard	ISO 15693

Detection zone

Distance to the ID tag [mm]	referred to 30 mm coin tag; I-CODE SLI : ≤ 16

Interfaces

Communication interface	IO-Link
Transmission type	COM2 (38,4 kBaud)
IO-Link revision	1.1
SDCI standard	IEC 61131-9
Profiles	Smart Sensor: Device Identification
SIO mode	no
Required master port type	A
Min. process cycle time [ms]	22
Supported DeviceIDs	Type of operation DeviceID default 967

Operating conditions

Ambient temperature [°C]	-20...60
Storage temperature [°C]	-25...80
Protection	IP 67; IP 69K

Tests / approvals

Shock resistance	EN 60068-2-27 40 g 6 ms / repetitive EN 60068-2-27 50 g 11 ms / not repetitive
Vibration resistance	EN 60068-2-6 20 g 10...2000 Hz
Electrical protection	EN 61010-2-201 : 2013 +AC:2013

Weight [g]	108.75
Housing	cylindrical
Mounting	flush mountable
Dimensions [mm]	M18 x 1 / L = 70
Thread designation	M18 x 1
Materials	housing: stainless steel (1.4301 / 304); Protective cover: PPS; plug insert: PEI

Displays / operating elements

Display	operation 1 x LED, green tag communication 1 x LED, yellow

Accessories

Items supplied	nut 2 x M18 x 1

Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — DTI424-01 — 12.10.2023 —
