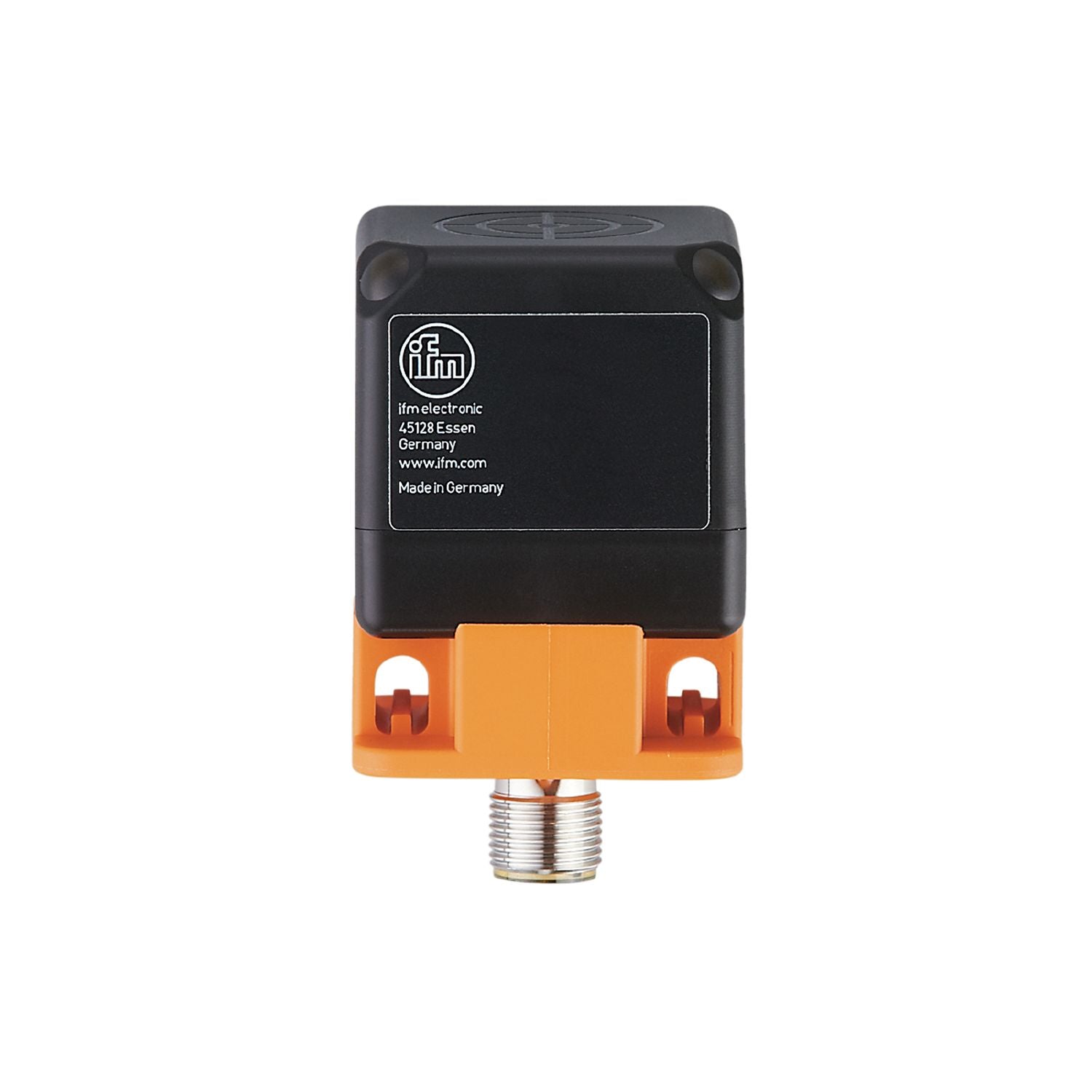

For the reliable identification of ID tags on workpiece carriers and products. Robust housing for applications in mounting, feeding and handling technology. High protection rating for the requirements of harsh industrial environments. Five positions of the sensing face selectable
Application
detection of objects on transport equipment
Radio approval for
USA; Canada; EU/RED; Australia; Japan; China; Taiwan; India; Singapore; Malaysia; Brazil; Mexico; New Zealand; South Korea; Vietnam
Note on radio approval
The list of countries applying the European Radio Equipment Directive 2014/53/EU (RED) can be found under “Downloads”.
Operating voltage [V]
19.2...28.8 DC
Current consumption [mA]
< 50
Protection class
III
Operating frequency [MHz]
13,56
RFID standard
ISO 15693
Detection zone
Distance to the ID tag [mm]
read
:
≤ 60
static
referred to 30 mm coin tag; I-CODE SLI
Interfaces
Communication interface
IO-Link
Transmission type
COM2 (38,4 kBaud)
IO-Link revision
1.1
SDCI standard
IEC 61131-9
Profiles
Smart Sensor: Device Identification
SIO mode
no
Required master port type
A
Supported DeviceIDs
Type of operation
DeviceID
default
967
Operating conditions
Ambient temperature [°C]
-20...60
Storage temperature [°C]
-25...80
Protection
IP 67; IP 69K
Tests / approvals
Shock resistance
EN 60068-2-27
40 g 6 ms / repetitive
EN 60068-2-27
50 g 11 ms / not repetitive
Vibration resistance
EN 60068-2-6
20 g 10...2000 Hz
MTTF [years]
567
UL approval
Ta
-20...60 °C
Enclosure type
Type 1
power supply
Limited Voltage/Current
File number UL
E205959
Weight [g]
192
Housing
rectangular
Mounting
flush mountable
Dimensions [mm]
40 x 40 x 54
Materials
housing: PA; metal parts: stainless steel
Displays / operating elements
Display
operation
1 x LED, green
tag communication
1 x LED, yellow
Pack quantity
1 pcs.
Electrical connection
Connection
Connector: 1 x M12; coding: A
