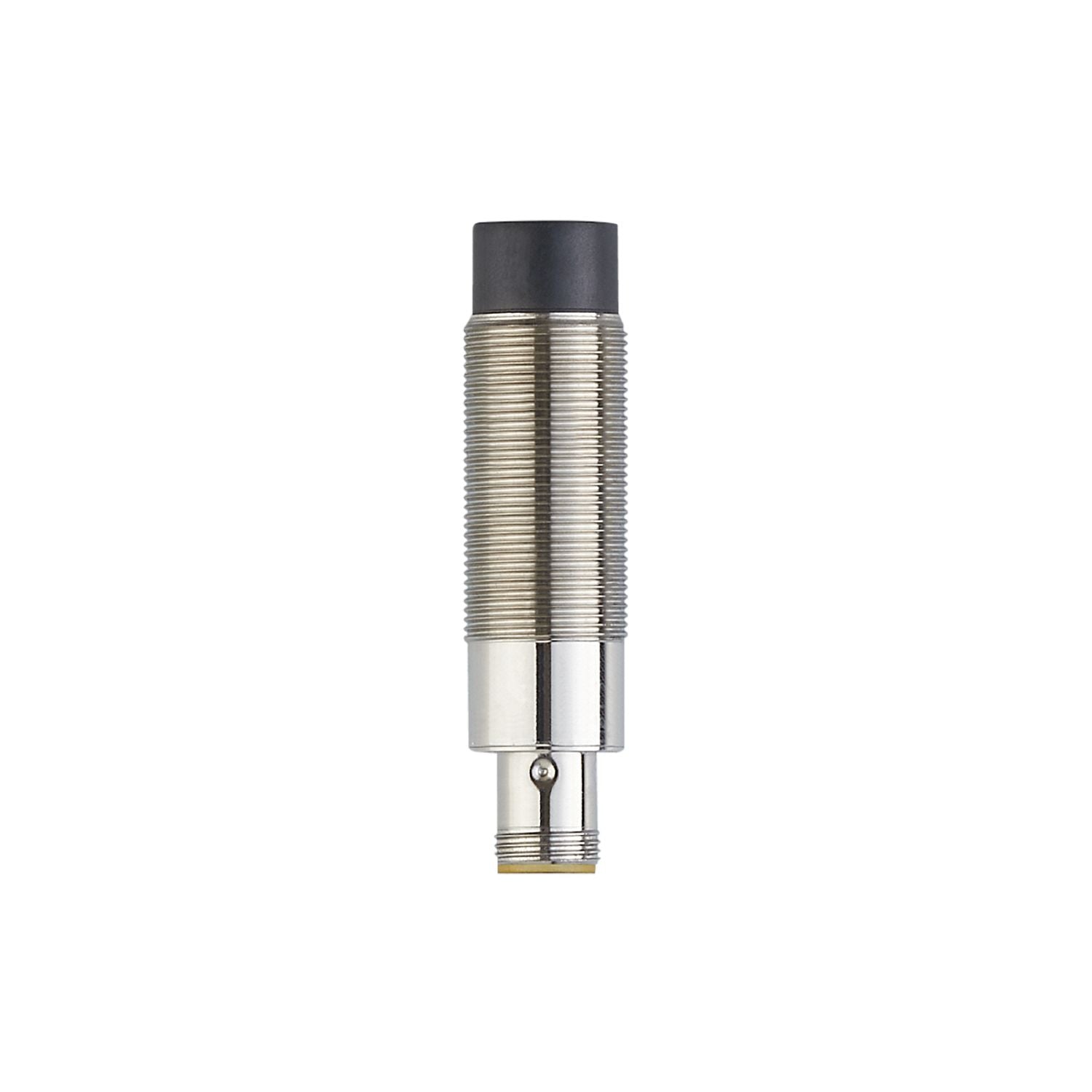

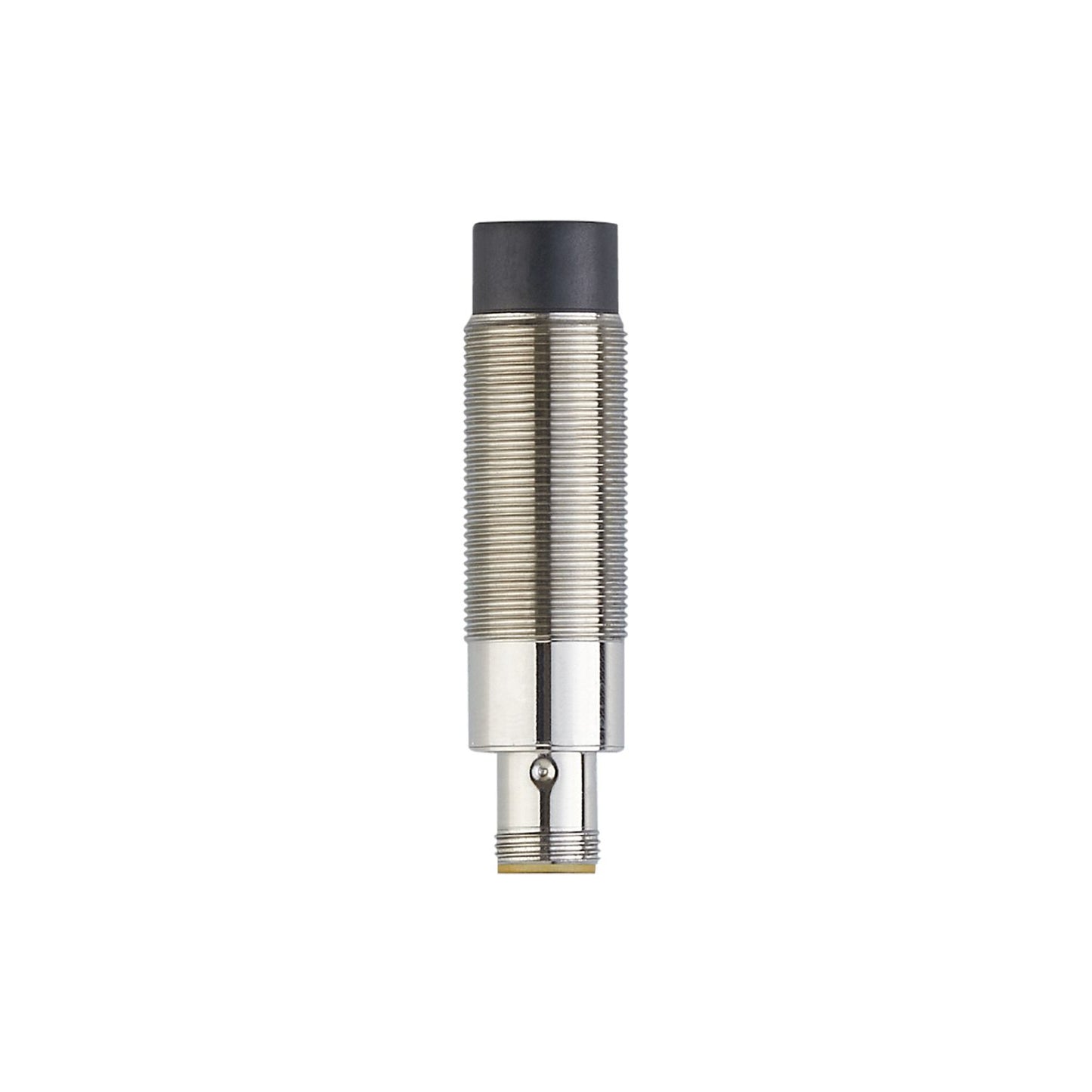

RFID read/write head HF for non-flush mounting. All in one unit: antenna, evaluation and CANopen interface. Suited for use in mobile machines. High protection rating for the requirements of harsh industrial environments. Large operating temperature range and high shock and vibration resistance
The list of countries applying the European Radio Equipment Directive 2014/53/EU (RED) can be found under “Downloads”.
Operating voltage [V]
9...32 DC
Current consumption [mA]
< 50 (24 V) / < 80 (12 V)
Protection class
III
Operating frequency [MHz]
13,56
RFID standard
ISO 15693
Detection zone
Distance write/read head front [mm]
180
Distance write/read head side [mm]
65
Distance to the ID tag [mm]
≤ 40
Interfaces
Communication interface
CAN
CAN
Protocol
CANopen
Operating conditions
Ambient temperature [°C]
-40...85
Storage temperature [°C]
-40...85
Protection
IP 67; IP 69K
Tests / approvals
Shock resistance
EN 60068-2-27
40 g 6 ms / repetitive
EN 60068-2-27
50 g 11 ms / not repetitive
Vibration resistance
EN 60068-2-6
10 g 10...2000 Hz
MTTF [years]
477
Weight [g]
141.5
Housing
threaded type
Dimensions [mm]
M18 x 1 / L = 70
Thread designation
M18 x 1
Materials
housing: stainless steel; Protective cover: PPS; LED window: PEI
Displays / operating elements
Display
Preoperational Mode
1 x LED, green lights
Operational Mode
1 x LED, green flashing
errors
1 x LED, red flashing
tag communication
1 x LED, yellow lights
Pack quantity
1 pcs.
Electrical connection
Connector: 1 x M12; coding: A
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — DTM425-00 — 05.07.2023 —
