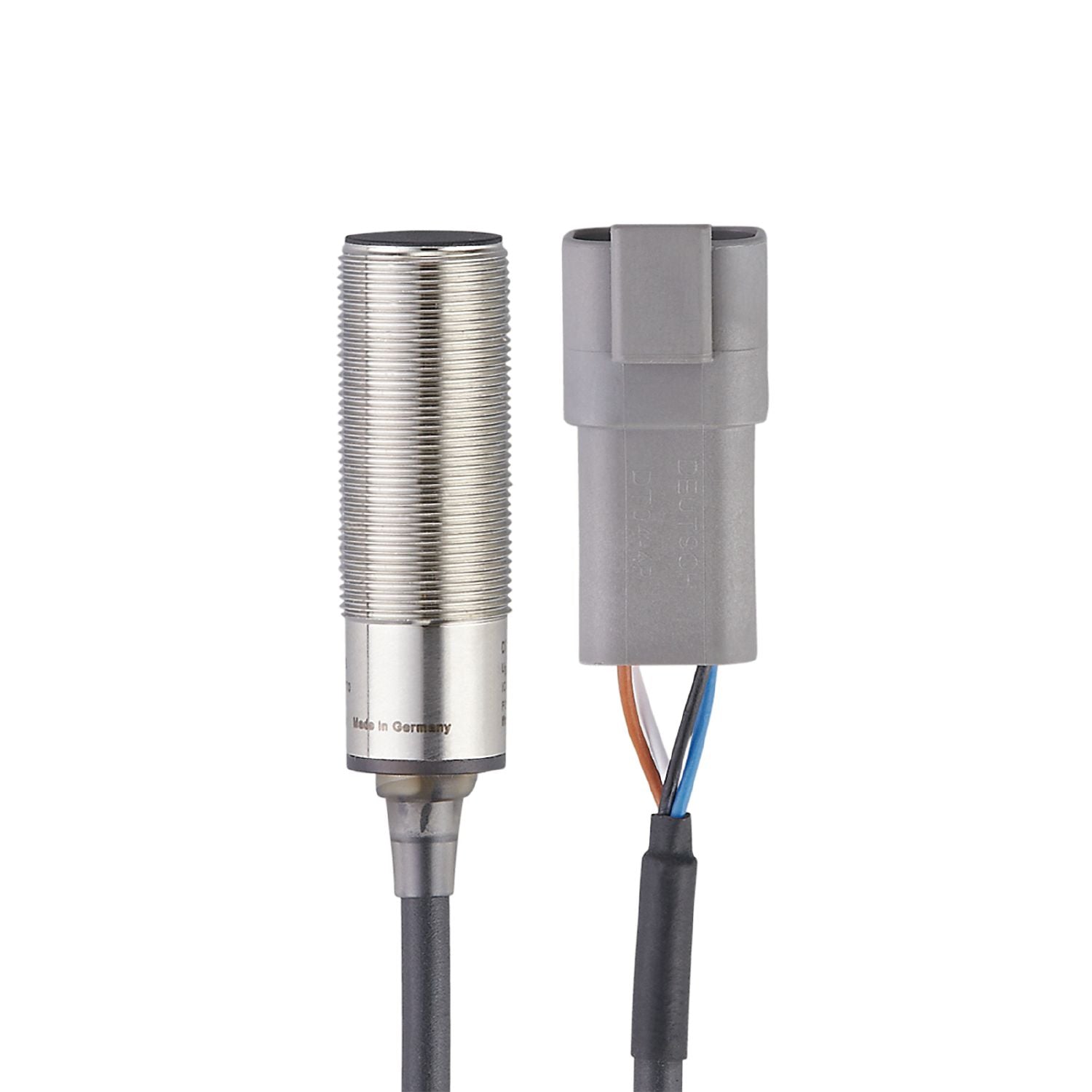

IFM DTM428 - RFID read/write head with CAN DTMHF GBRWCODC03

Radio approval for	USA; Canada; EU/RED; Australia; Japan; China; Taiwan; India; Singapore
Note on radio approval	The list of countries applying the European Radio Equipment Directive 2014/53/EU (RED) can be found under “Downloads”.

Operating voltage [V]	9...32 DC
Current consumption [mA]	< 50 (24 V) / < 80 (12 V)
Protection class	III
Operating frequency [MHz]	13,56
RFID standard	ISO 15693

Detection zone

Distance to the ID tag [mm]	≤ 15

Interfaces

Communication interface	CAN

Protocol	CANopen

Operating conditions

Ambient temperature [°C]	-40...85
Storage temperature [°C]	-40...85
Protection	IP 67; IP 69K

Tests / approvals

Shock resistance	EN 60068-2-27 40 g 6 ms / repetitive EN 60068-2-27 50 g 11 ms / not repetitive
Vibration resistance	EN 60068-2-6 10 g 10...2000 Hz
MTTF [years]	506

Weight [g]	120.5
Housing	threaded type
Mounting	flush mountable
Dimensions [mm]	M18 x 1 / L = 58
Thread designation	M18 x 1
Materials	housing: stainless steel (1.4301 / 304); Protective cover: PPS; cable plug: PUR
Tightening torque [Nm]	< 25

Displays / operating elements

Display	Preoperational Mode 1 x LED, green lights Operational Mode 1 x LED, green flashing errors 1 x LED, red flashing tag communication 1 x LED, yellow lights

Pack quantity	1 pcs.

Electrical connection

	Cable: 0.8 m
