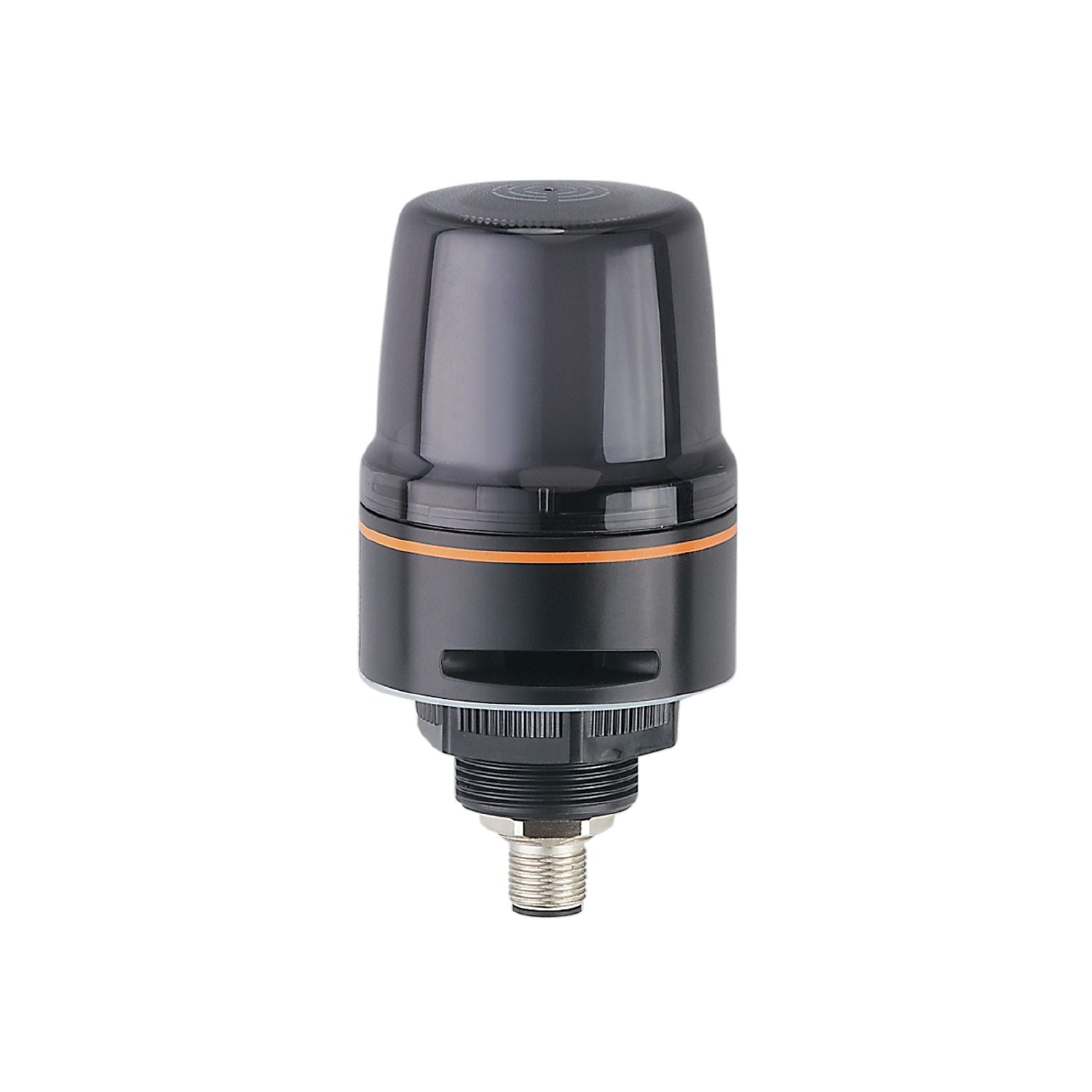

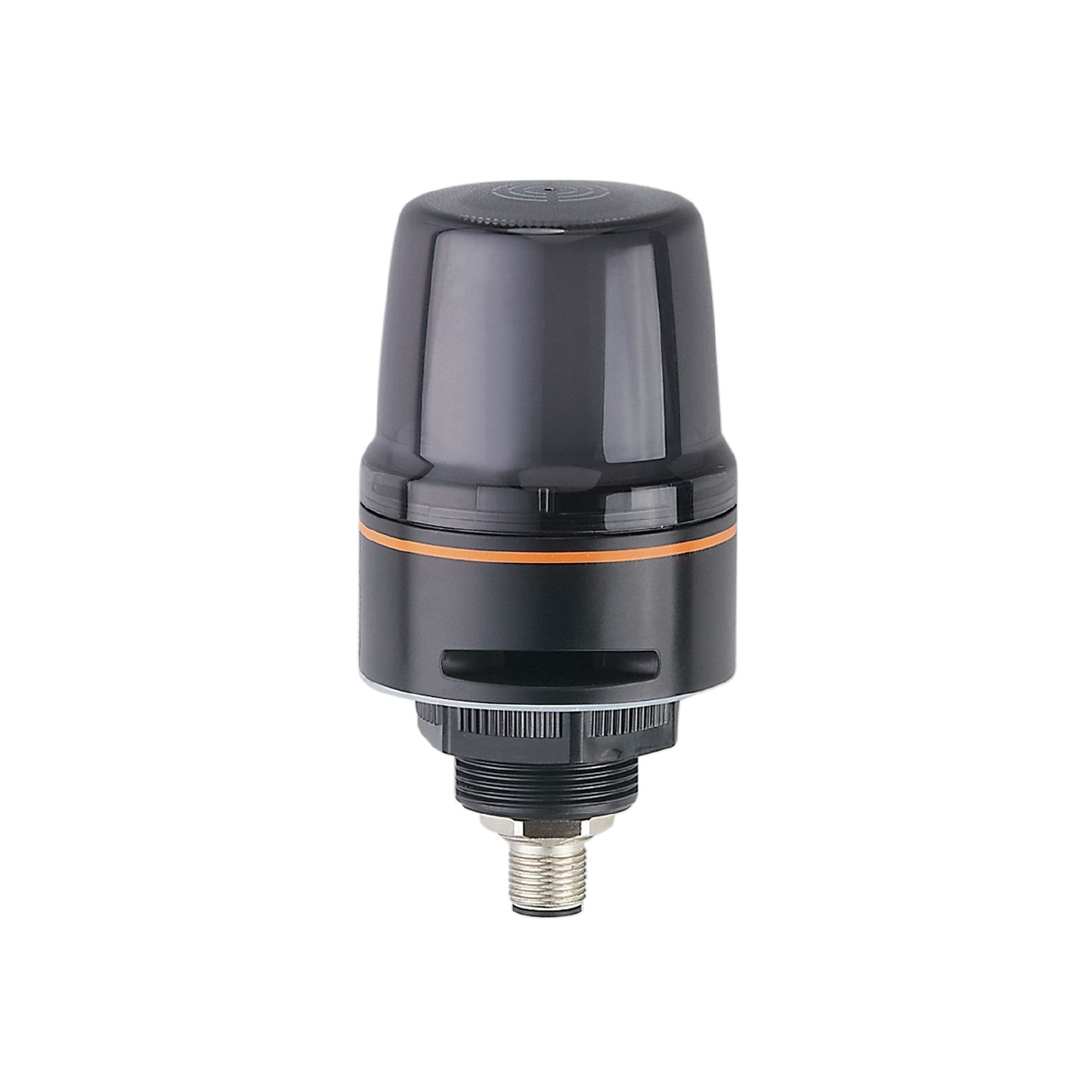

Control via IO-Link or digital inputs. Perfect visibility. Easy mounting using M30 fixing nut. Loud buzzer with selectable melodies. High protection rating also with buzzer
Application
signalling machine conditions
Operating voltage [V]
18...30 DC;(to SELV/PELV ; "supply class 2" to cURus)
Nominal voltage DC [V]
24
Current consumption [mA]
< 90
Switch-on peak current [mA]
400
Switch-on peak current duration [ms]
50
Interfaces
Communication interface
IO-Link
Transmission type
COM2 (38,4 kBaud)
IO-Link revision
1.1
SDCI standard
IEC 61131-9
SIO mode
yes
Required master port type
A
Min. process cycle time [ms]
2.3
Supported DeviceIDs
Type of operation
DeviceID
default
1085
Operating conditions
Ambient temperature [°C]
-25...50
Storage temperature [°C]
-40...75
Max. relative air humidity [%]
90
Max. height above sea level [m]
4000
Protection
IP 65
Pollution degree
2
Weight [g]
166.5
Dimensions [mm]
Ø 56 / L = 72.5
Materials
housing: PC
Displays / operating elements
Display
LED segment, red / green / yellow / blue / lilac / cyan / white
Acoustic signal
buzzer
Max. sound pressure [dB]
90
Accessories
Accessories (optional)
mounting base, E89060
wall bracket, E89061
Mounting adapter, E89063
bracket with lateral cable entry, E89064
mounting tube, E89065
mounting tube, E89066
mounting tube, E89067
mounting base, E89080
Remarks
For further information please see the operating instructions.
Pack quantity
1 pcs.
Electrical connection - plug
IO-Link
Connector:M12; coding: A
Diagrams and graphs
base mounting
wall mounting
light intensity distribution curve
light intensity distribution curve: red
1000 lm
operating efficiency = 20%
light intensity distribution curve
light intensity distribution curve: green
1000 lm
operating efficiency = 22%
light intensity distribution curve
light intensity distribution curve: blue
1000 lm
operating efficiency = 20%
