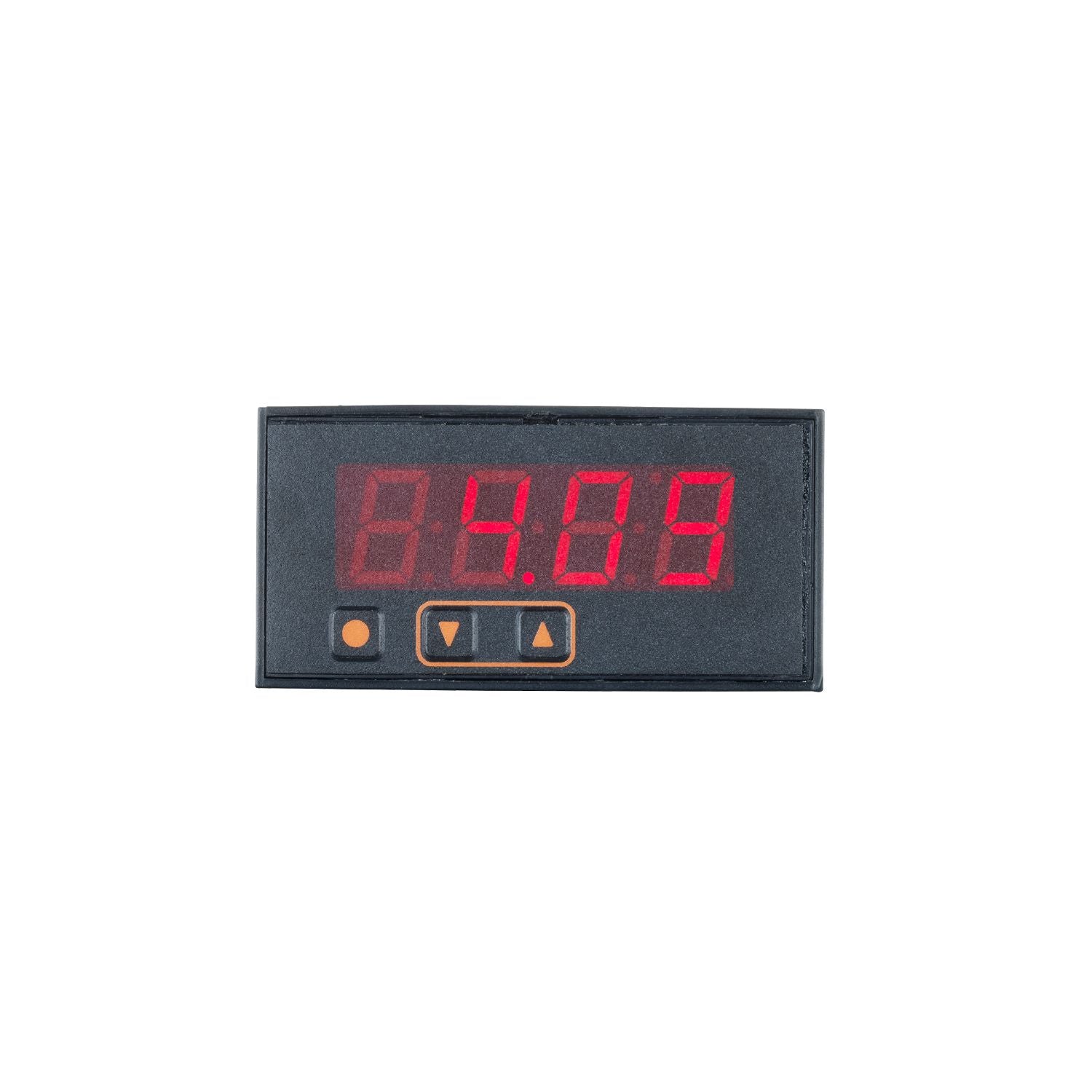

Reliable monitoring of sensors with analogue standard signals. Easy scaling of the display range. Clearly visible LED display. Direct supply from the current loop of the analogue output. Dust-tight and hose-water proof installation in control panels
Housing
housing for panel mounting
Dimensions [mm]
36 x 72 x 40
Application
scalable display for sensors with analogue output
Operating voltage [V]
24 DC;(voltage is generated from analogue signal: 4...20 mA; voltage drop of signal: 5,1 (4,7...5,2 V))
Inputs / outputs
Number of inputs and outputs
Number of analogue inputs: 1
Inputs
Number of analogue inputs
1
Analogue input (current) [mA]
4...20
Analogue input
Resolution [Bit]
12
accuracy
0,3 % Measuring error± 1 Digit
Operating conditions
Ambient temperature [°C]
0...60
Storage temperature [°C]
-20...80
Protection
IP 65;(terminals: IP00)
Weight [g]
106
Housing
housing for panel mounting
Type of mounting
panel cutout: 68 x 33 mm; wall thickness: max. 5 mm
Dimensions [mm]
36 x 72 x 40
Materials
housing: polycarbonate; Sealing: EPDM
Displays / operating elements
Display
function display
7-segment LED display, red
digit height 14 mm
Display range -1999...9999
Operating elements
3 pushbutton
Electrical connection
Connection
plug-in screw terminals: ...2.5 mm²
