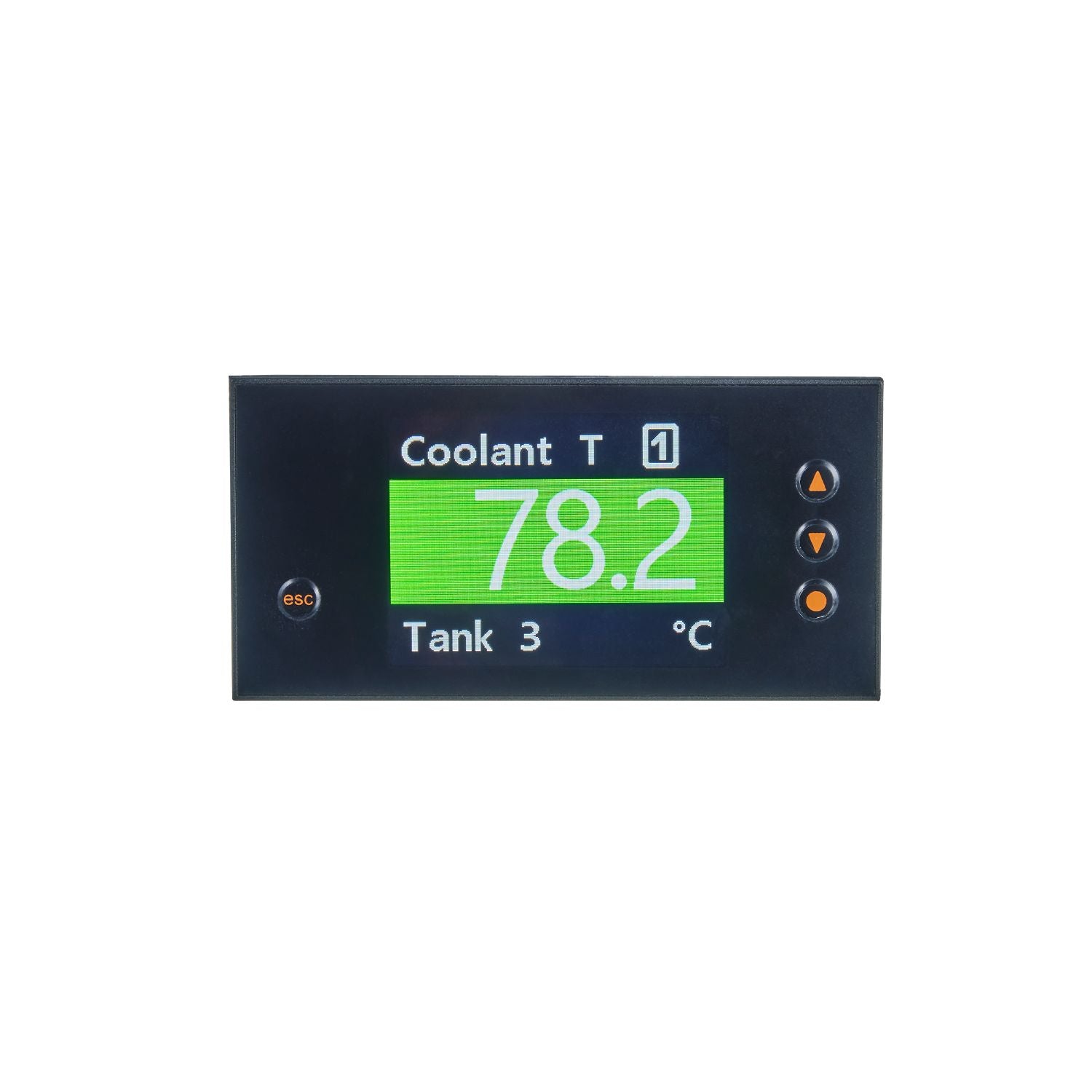

Multi-function input for monitoring of different sensors. Colour indication when set limits are exceeded or not reached. Configurable digital panels for labelling. help texts in the menu facilitate parameter setting. Switching outputs to reliably monitor limit values
Dimensions [mm]
48 x 109 x 42
Application
displaying and monitoring analogue signals
Operating voltage [V]
21.6...26.4 DC
Current consumption [mA]
< 65
Inputs / outputs
Number of inputs and outputs
Number of relay outputs: 2
Inputs
multifunction inputs
Number
1
Analogue input
function type
Current
input range [mA]
0...22
input resistance [Ω]
125
Resolution
14 Bit
accuracy
0,2 % ± 1 Digit
Analogue input
function type
Voltage
input range [V]
0...12
input resistance [kΩ]
> 100
Resolution
14 Bit
accuracy
0,2 % ± 1 Digit
Resistor input
function type
PT100 / PT1000
Measuring range [°C]
-200...850
Resolution
≥ 0,1 K
accuracy
0,5 % ± 1 Digit
Analogue input
function type
Thermocouple
Measuring range [°C]
Typ K: -270...1350
Measuring range [°C]
Typ S: -50...1750
Measuring range [°C]
Typ N: -270...1300
Measuring range [°C]
Typ J: -170...950
Measuring range [°C]
Typ T: -270...400
Measuring range [°C]
Typ R: -50...1768
Measuring range [°C]
Typ B: 80...1820
Measuring range [°C]
Typ E: -270...1000
Measuring range [°C]
Typ L: -200...900
Resolution
1 K
accuracy
0,3 % ± 1 Digit
Frequency input
function type
frequency
frequency [Hz]
0...10000
Frequency input
function type
rotational speed
rotational speed [1/min]
0...9999
Frequency input
function type
counter
counter
0...9999
Frequency input
Circuit
TTL
switching level high [V]
> 3
switching level low [V]
< 2
Frequency input
Circuit
PNP
switching level high [V]
> 8
switching level low [V]
< 6
input frequency [Hz]
< 1000
Frequency input
Circuit
NPN
switching level high [V]
> 0,8
switching level low [V]
< 0,8
input frequency [Hz]
< 3000
Frequency input
Circuit
NAMUR
Input current High [mA]
> 2,5
Input current Low [mA]
< 1,5
Outputs
Number of relay outputs
2;(changeover contact)
Contact rating
2 A (30 V DC)
Measuring/setting range
Sampling rate [Hz]
0...10000;(see operating instructions)
Operating conditions
Ambient temperature [°C]
-20...60
Storage temperature [°C]
-30...70
Max. relative air humidity [%]
85
Max. height above sea level [m]
4000
Protection
IP 65
Protection rating terminals
IP 00
Tests / approvals
EMC
EN 61326
IEC 61131-2 Typ 3
MTTF [years]
176
Weight [g]
144.8
Type of mounting
panel cutout: 92 x 45 mm
Dimensions [mm]
48 x 109 x 42
Materials
housing: polycarbonate; Sealing: EPDM
Displays / operating elements
Display
colour display
full graphics TFT display, 2,4" 320 x 240 Pixel
digit height 15 mm
Electrical connection
Connection
pluggable screw terminal: ...2.5 mm²
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — DX1063-00 — 03.07.2023 —
