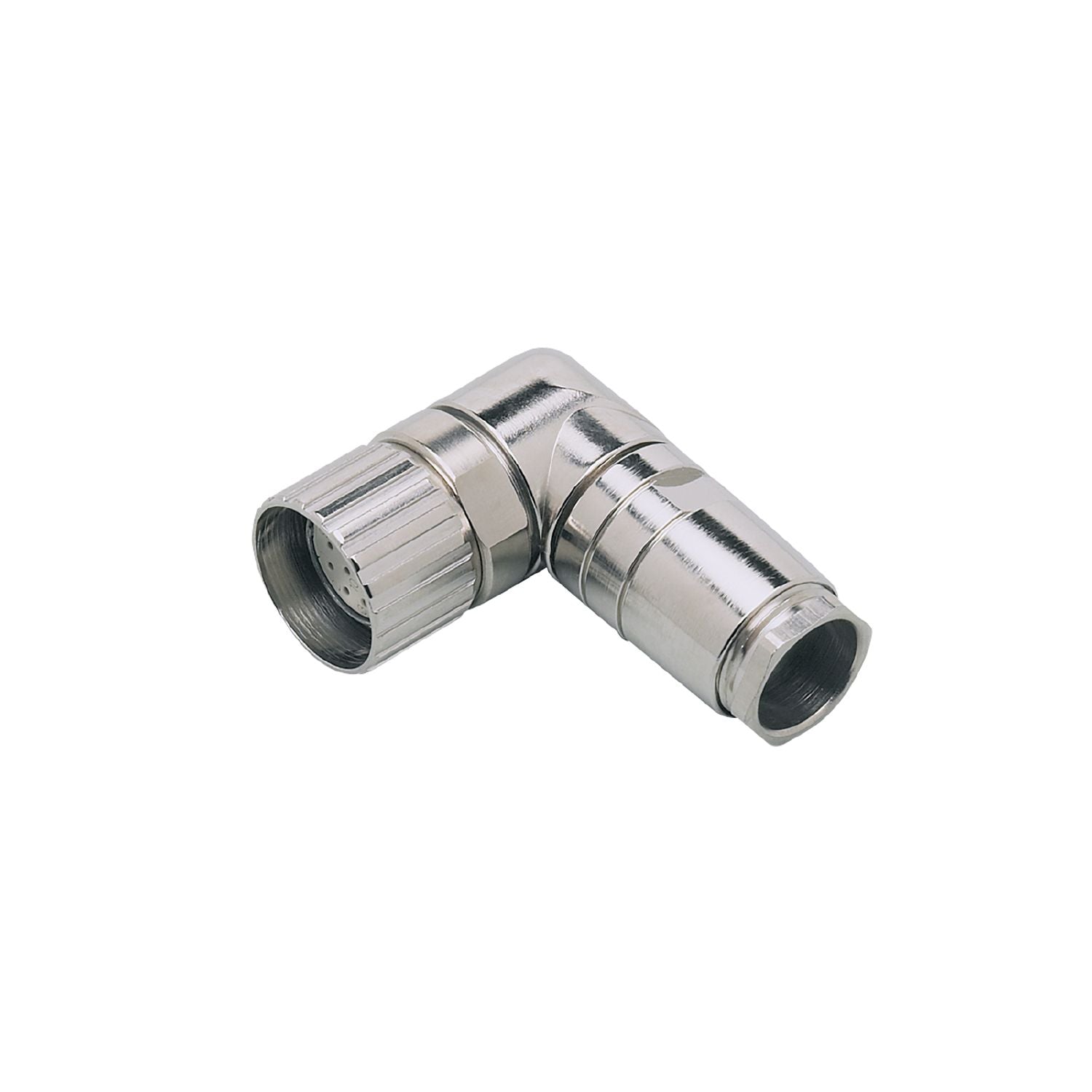

IFM E10447 - Wirable socket SDOAM120MSSFKPG

For splitter boxes with M23 connector.
Robust metal housing for use in harsh industrial environments.
Wide operating temperature range.
Angled type for use where space is restricted.
Safe cable connection due to soldering

Operating voltage [V]	10...30 DC
Max. current load total [A]	7.5

Operating conditions

Ambient temperature [°C]	-25...90
Protection	IP 65

Weight [g]	144.5
Dimensions [mm]	51 x 26 x 58
Materials	brass nickel-plated
Moulded-body material	brass, nickel-plated
Material nut	brass, nickel-plated

Pack quantity	1 pcs.

Electrical connection

	soldering: ...1 mm²; Cable sheath: Ø 10...14 mm

Electrical connection - socket

Connection	Connector: 1 x M23, angled; Moulded body: brass, nickel-plated; Locking: brass, nickel-plated

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E10447-00 — 06.03.2003 —
