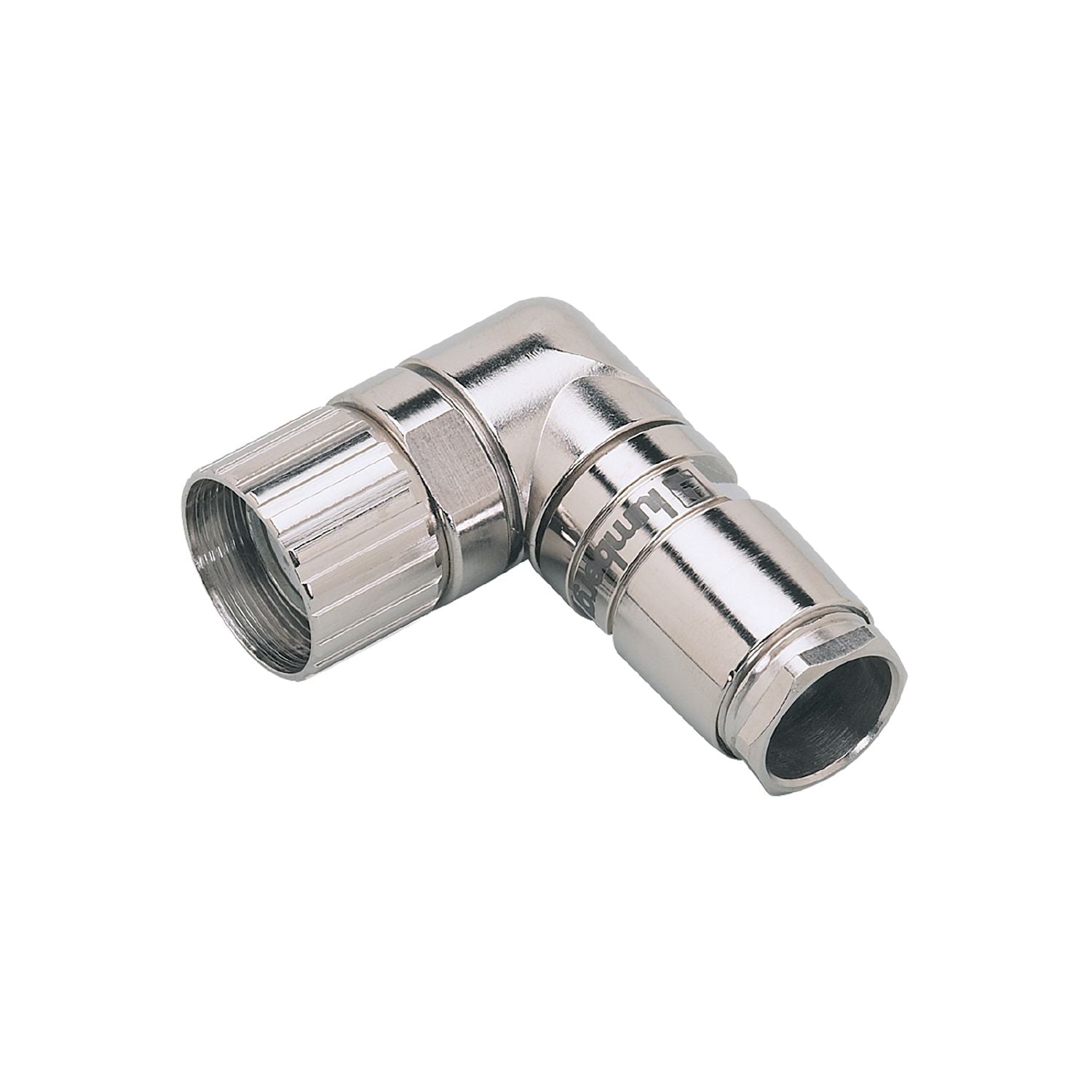

IFM E10886 - Wirable socket SDOAK190MSSFKPG

For splitter boxes with M23 connector.
Gold-plated contacts for reliable electrical connections.
Angled type for use where space is restricted.
Wide operating temperature range.
Robust design for use in harsh industrial environments

Operating voltage [V]	10...30 DC
Max. current load total [A]	7.5

Operating conditions

Ambient temperature [°C]	-25...90
Protection	IP 65

Weight [g]	148.5
Dimensions [mm]	51 x 26 x 58
Materials	brass nickel-plated
Moulded-body material	brass, nickel-plated
Material nut	brass, nickel-plated

Pack quantity	1 pcs.

Electrical connection

	soldering: ...1 mm²; Cable sheath: Ø 10...14 mm

Electrical connection - socket

Connection	Connector: 1 x M23, angled; Moulded body: brass, nickel-plated; Locking: brass, nickel-plated
