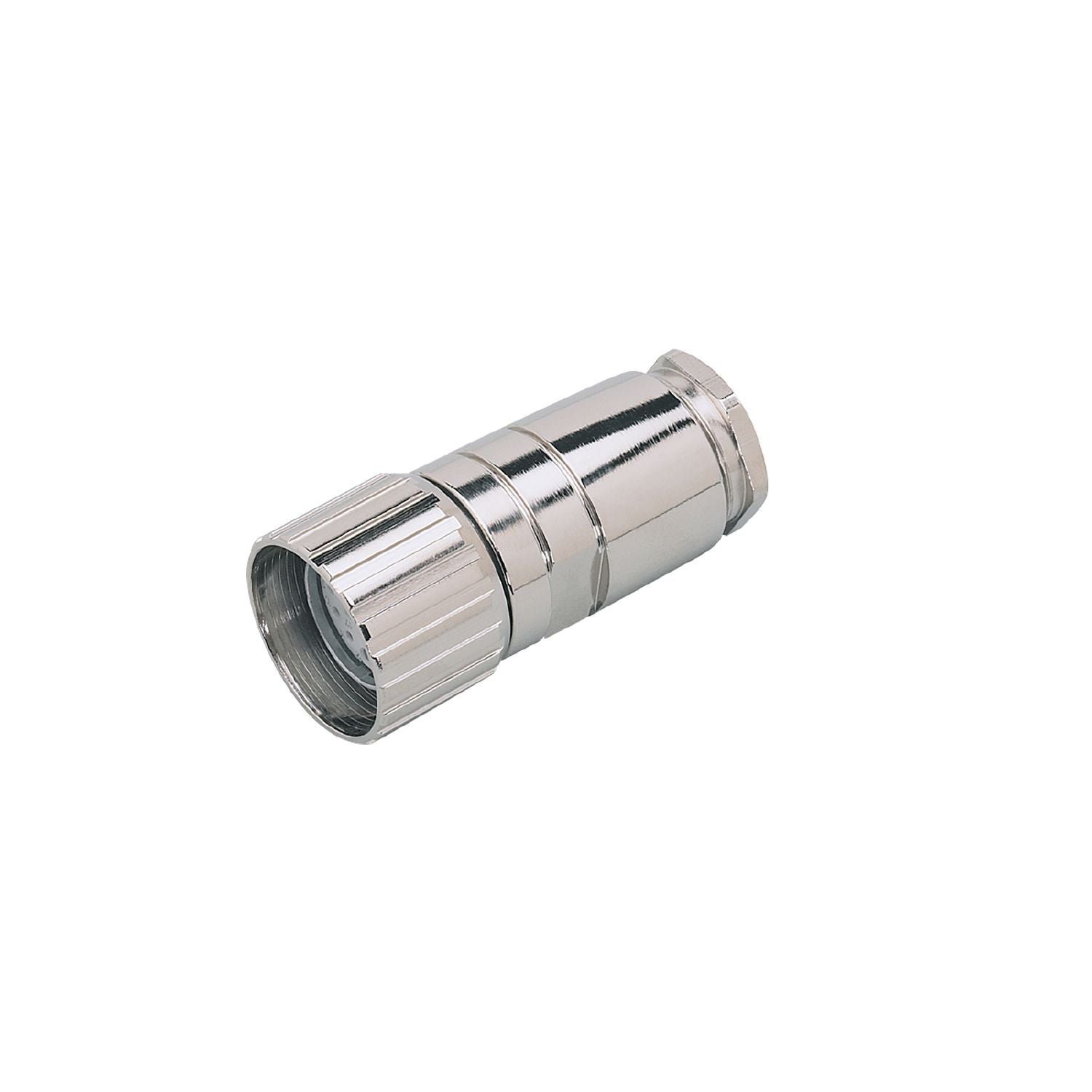

IFM E10887 - Wirable socket SDOGK190MSSFKPG

For splitter boxes with M23 connector.
Gold-plated contacts for reliable electrical connections.
Robust design for use in harsh industrial environments.
Wide operating temperature range.
Safe cable connection due to soldering

Operating voltage [V]	10...30 DC
Max. current load total [A]	7.5

Operating conditions

Ambient temperature [°C]	-25...90
Protection	IP 65

Weight [g]	82.4
Dimensions [mm]	26 x 26 x 49
Materials	brass nickel-plated
Moulded-body material	brass, nickel-plated
Material nut	brass, nickel-plated

Pack quantity	1 pcs.

Electrical connection

	soldering: ...1 mm²; Cable sheath: Ø 10...14 mm

Electrical connection - socket

Connection	Connector: 1 x M23, straight; Moulded body: brass, nickel-plated; Locking: brass, nickel-plated

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E10887-00 — 06.06.2011 —
