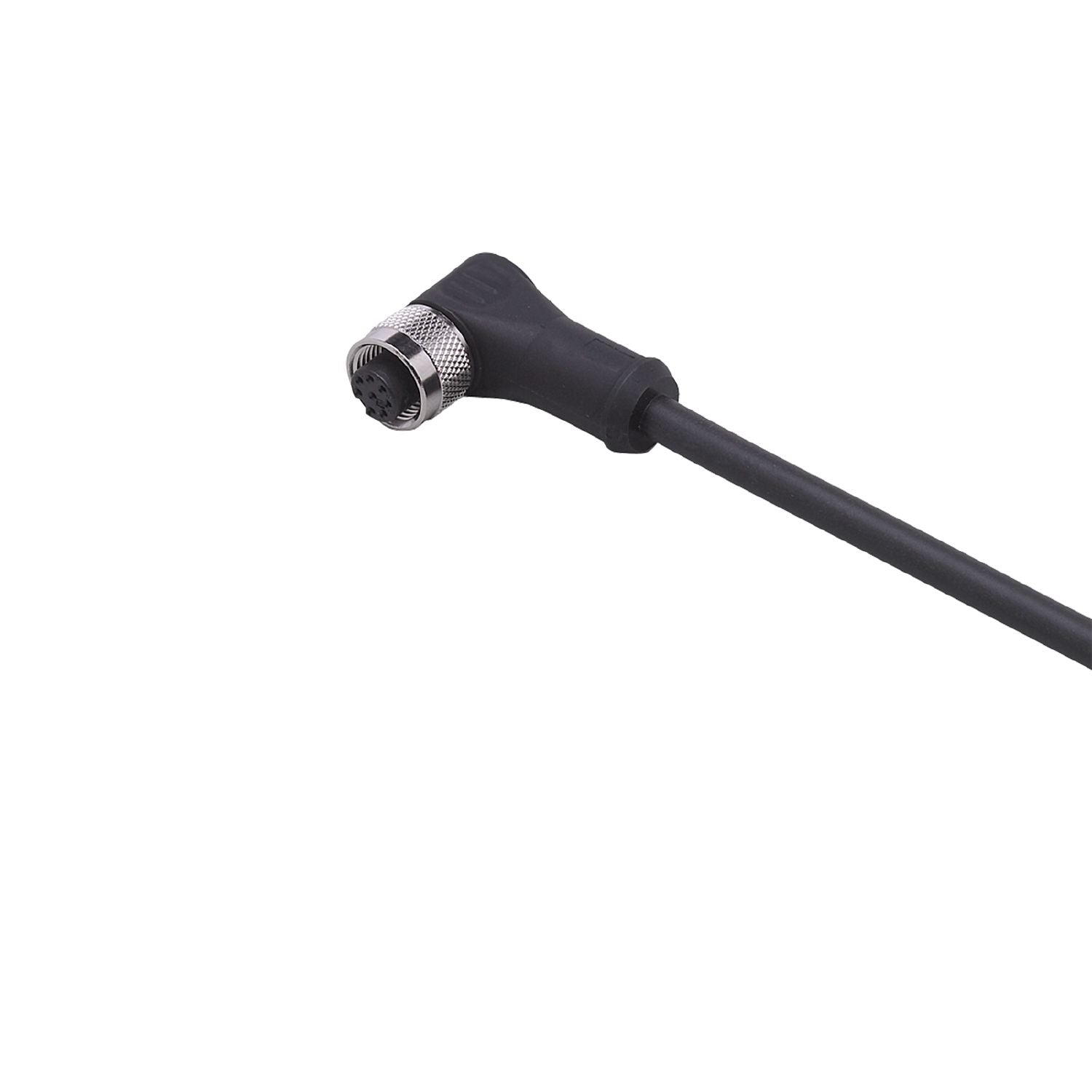

IFM E10980 - Connecting cable with socket ADOAH080MSS0010A06

8-pole connection.
High protection rating for the requirements of harsh industrial environments.
Reliable transmission of the sensor signals.
Wide operating temperature range.
Angled type for use where space is restricted

Operating voltage [V]	< 60 AC/DC

Operating conditions

Ambient temperature [°C]	-25...85
Protection	IP 68

Weight [g]	479
Dimensions [mm]	38.5 x 14.5 x 27.5
Materials	TPU
Moulded-body material	TPU
Material nut	diecast zinc, nickel-plated

Pack quantity	1 pcs.

Electrical connection

	Cable: 10 m, PUR, black; 6 x 0.34 mm² (42 x Ø 0.1 mm )

Electrical connection - socket

Connection	Connector: 1 x M12, angled; coding: A; Moulded body: TPU; Locking: diecast zinc, nickel-plated

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E10980-01 — 17.06.2010 —
