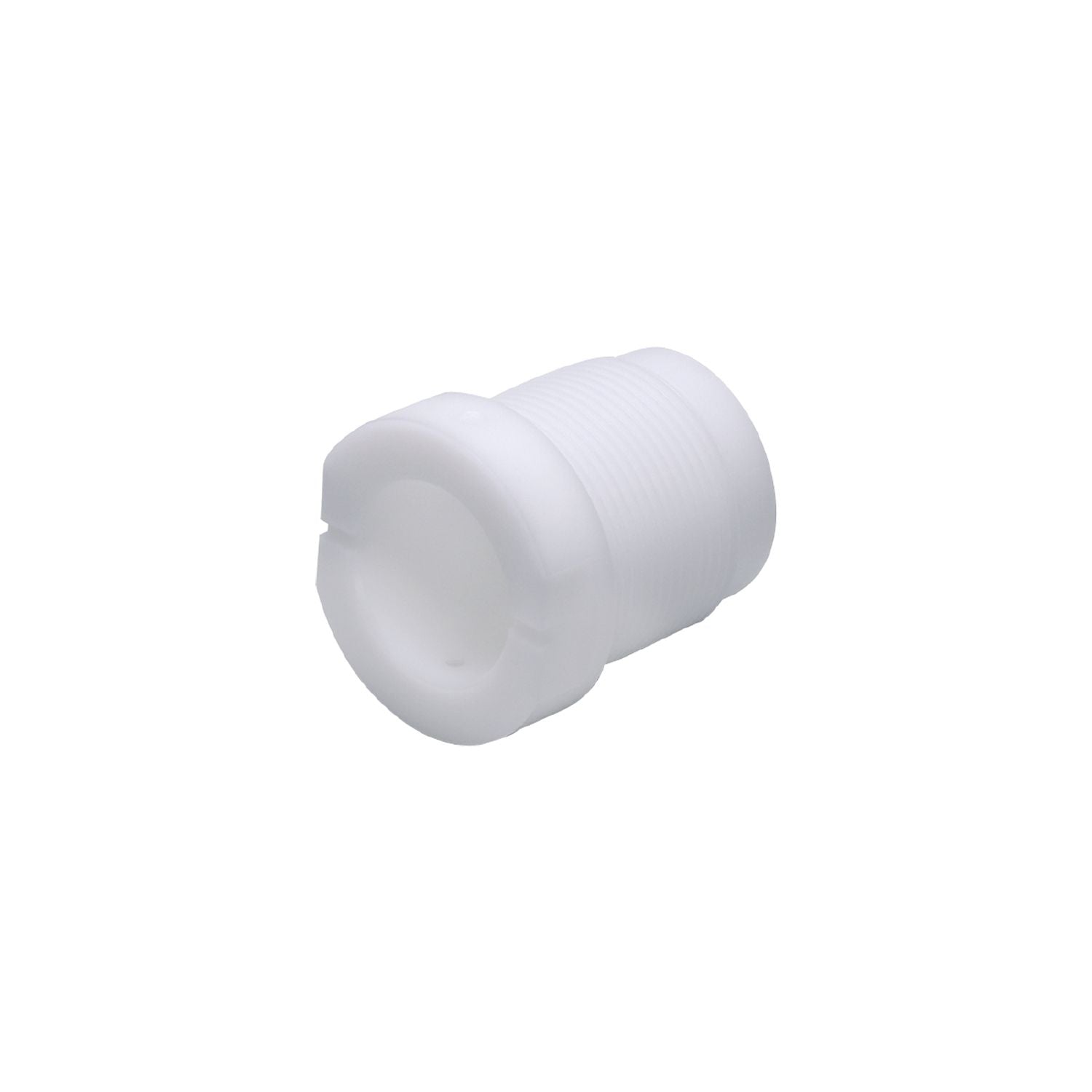

IFM E11027 - Mounting adapter for capacitive sensors MOUNTING ADAPTER D34MM POM

For level detection with capacitive sensors in containers and tanks.
Efficient protection of the sensor against damage.
High pressure rating

Pressure rating [bar]	8

Operating conditions

Ambient temperature [°C]	-25...80

Weight [g]	83.7
Dimensions [mm]	G 1 1/2 / L = 60
Thread designation	G 1 1/2
Materials	Adapter: POM
Sensor connection	clamp adapter Ø 34 mm
Process connection	threaded connection G 1 1/2 external thread

Pack quantity	1 pcs.
