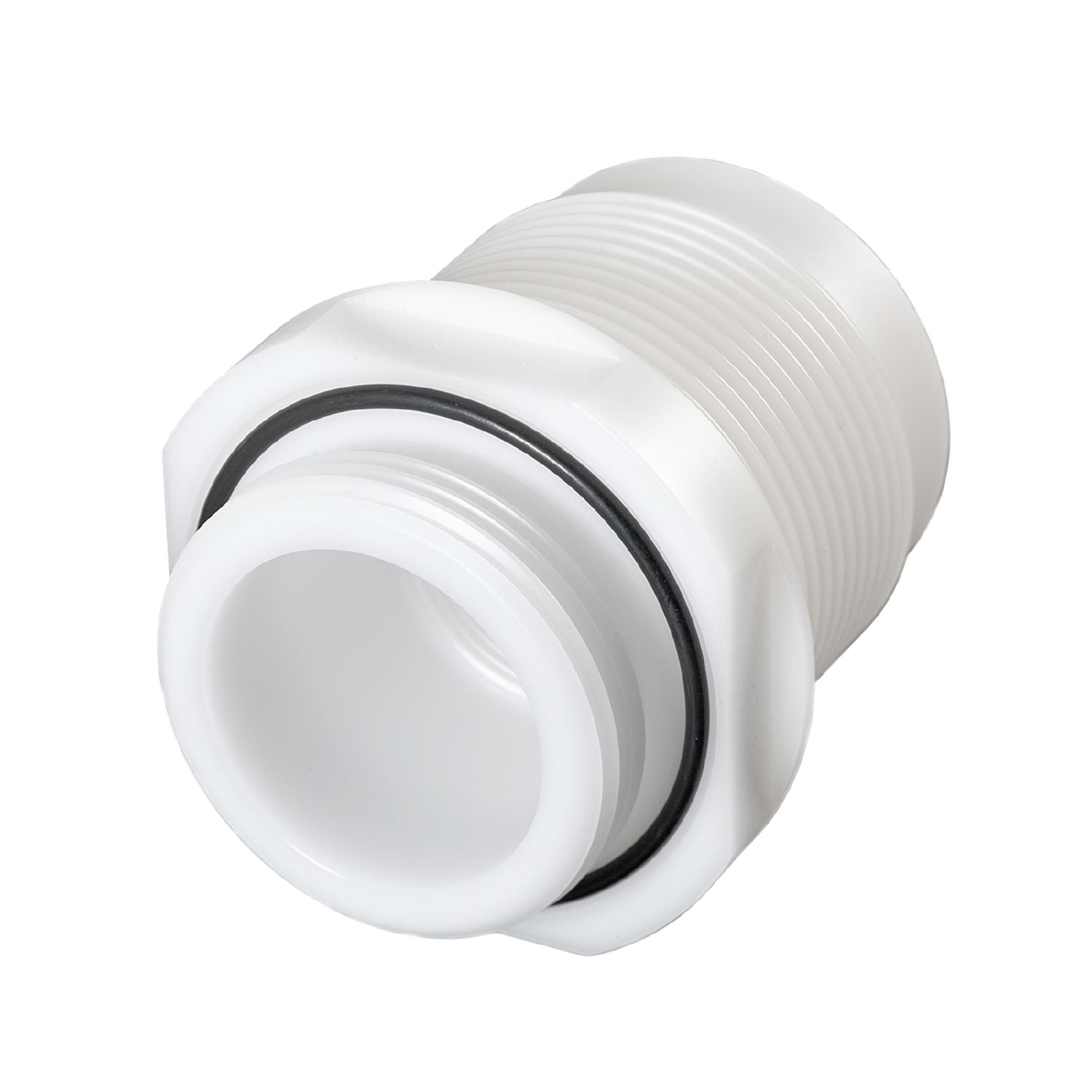

IFM E11033 - Mounting adapter for capacitive sensors MOUNTING ADAPTER M30 POM

Reliable installation in a vessel wall.
Efficient protection against soiling, impact and shock.
For level detection with capacitive sensors in containers and tanks.
High pressure rating

Medium temperature [°C]	-25...100
Medium temperature short time [°C]	-25...110
Pressure rating [bar]	8

Weight [g]	90.5
Dimensions [mm]	G 1 1/2 / L = 65
Thread designation	G 1 1/2
Materials	Adapter: POM; Gasket: EPDM
Sensor connection	threaded connection M30 x 1,5 internal thread
Process connection	threaded connection G 1 1/2 external thread

Pack quantity	1 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E11033-00 — 07.01.2008 —
