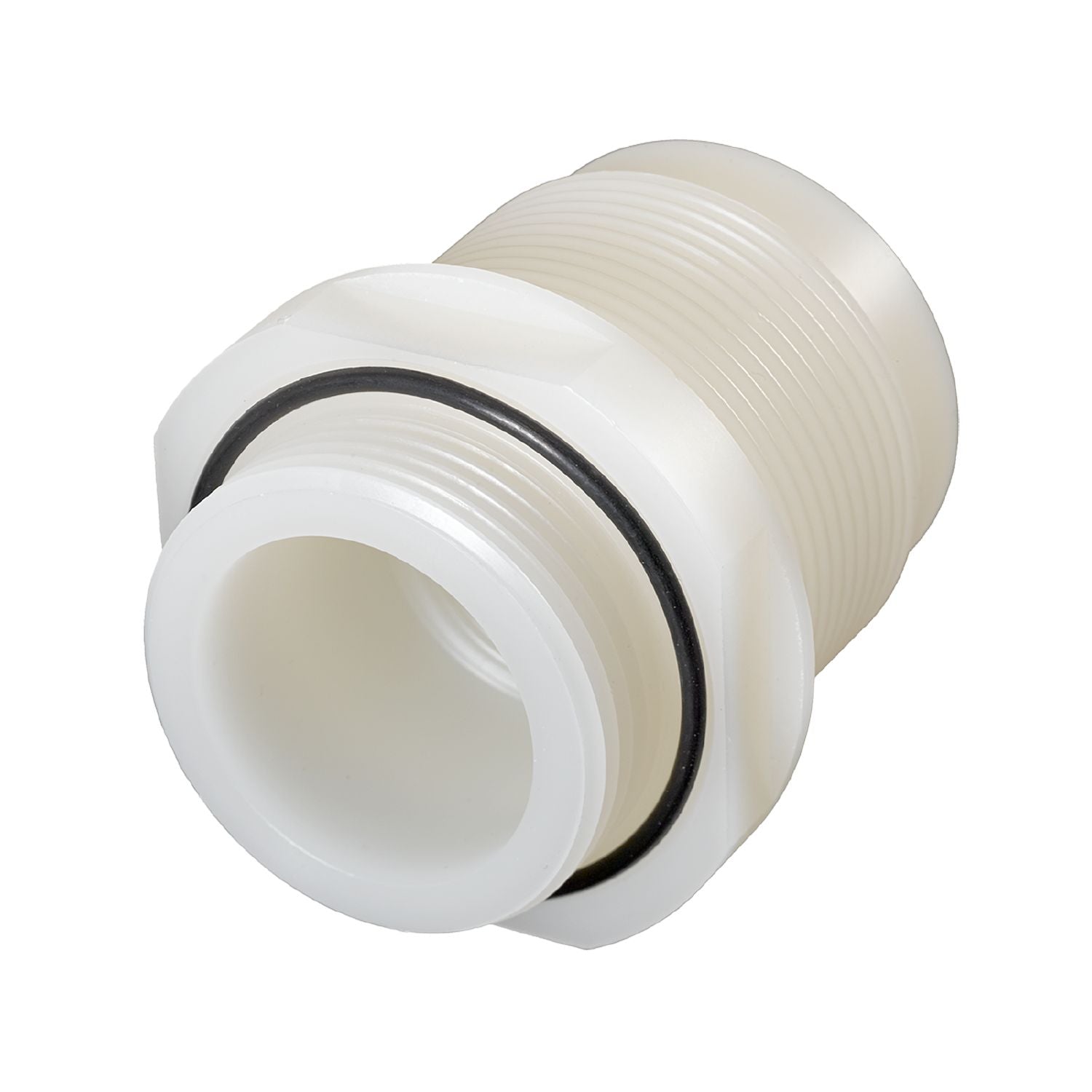

IFM E11034 - Mounting adapter for capacitive sensors MOUNTING ADAPTER M30 PVDF

Reliable installation in a vessel wall.
Efficient protection against soiling, impact and shock.
For level detection with capacitive sensors in containers and tanks.
High pressure rating.
Use in high medium temperatures

Pressure rating [bar]	8

Operating conditions

Ambient temperature [°C]	-25...110

Weight [g]	114.6
Dimensions [mm]	G 1 1/2 / L = 65
Thread designation	G 1 1/2
Materials	Adapter: PVDF; Gasket: EPDM
Sensor connection	threaded connection M30 x 1,5 internal thread
Process connection	threaded connection G 1 1/2 external thread

Pack quantity	1 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E11034-00 — 06.03.2003 —
