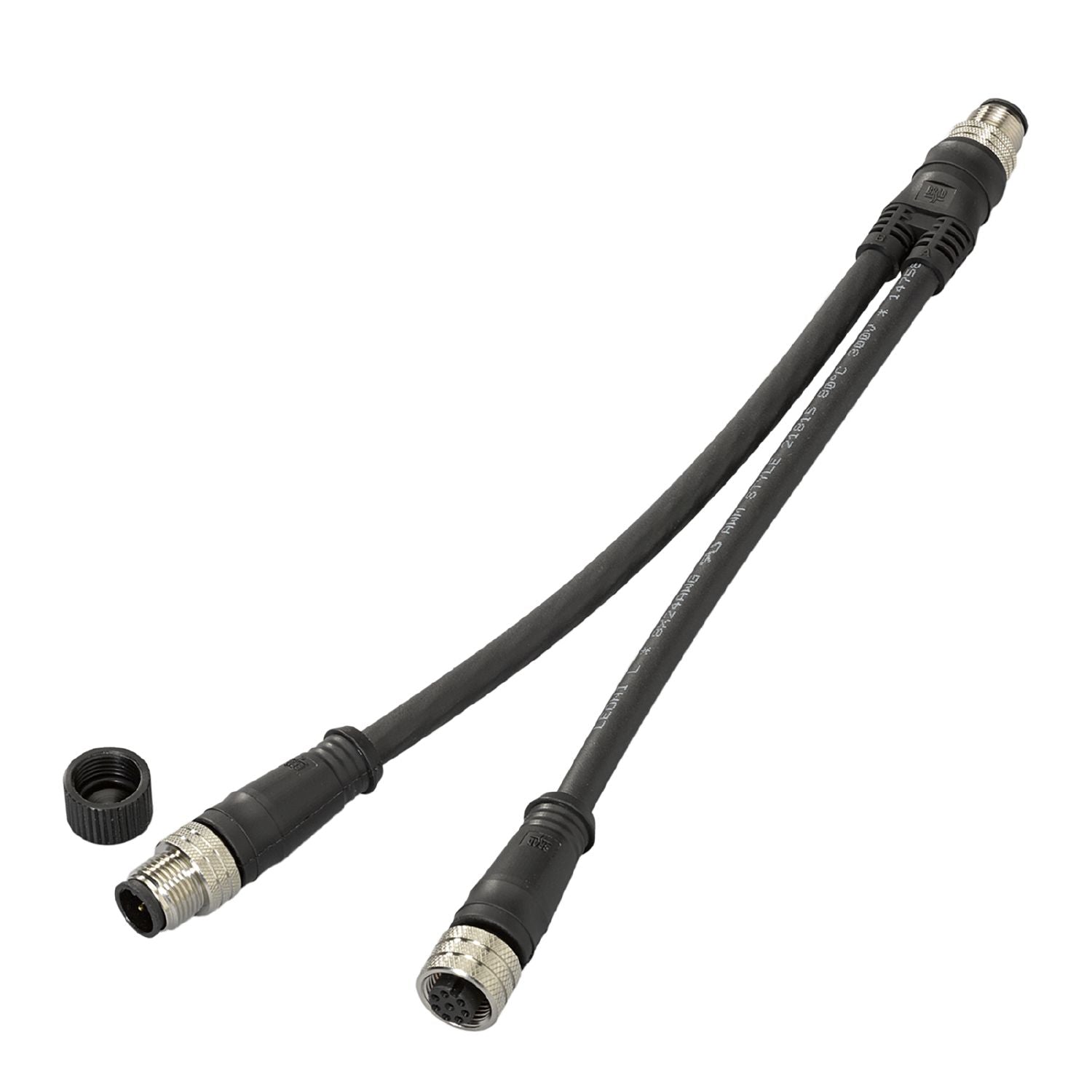

IFM E11228 - Y connection cable YDOGH080MSS0,15H08STGH040MSS

For safe electrical connections.
Permanent, reliable sealing even when mounted without tools.
High protection rating for the requirements of harsh industrial environments.
Wide operating temperature range

Special feature	Halogen-free

Operating voltage [V]	< 30 AC / < 36 DC

Operating conditions

Ambient temperature [°C]	-25...80
Protection	IP 68

Weight [g]	63
Materials	PUR
Moulded-body material	PUR
Material nut	brass, nickel-plated

Pack quantity	1 pcs.

Electrical connection - socket A

Connection	Connector: 1 x M12, straight; coding: A; Moulded body: PUR; Locking: brass, nickel-plated

Electrical connection - plug B

	Cable: 0.15 m, PUR, Halogen-free, black, Ø 6.2 mm; 2 x 0.25 mm²
	Connector: 1 x M12, straight; coding: A; Moulded body: PUR; Locking: brass, nickel-plated

Electrical connection - plug C

	Cable: 0.15 m, PUR, Halogen-free, black, Ø 6.2 mm; 4 x 0.25 mm²
	Connector: 1 x M12, straight; coding: A; Moulded body: PUR; Locking: brass, nickel-plated
