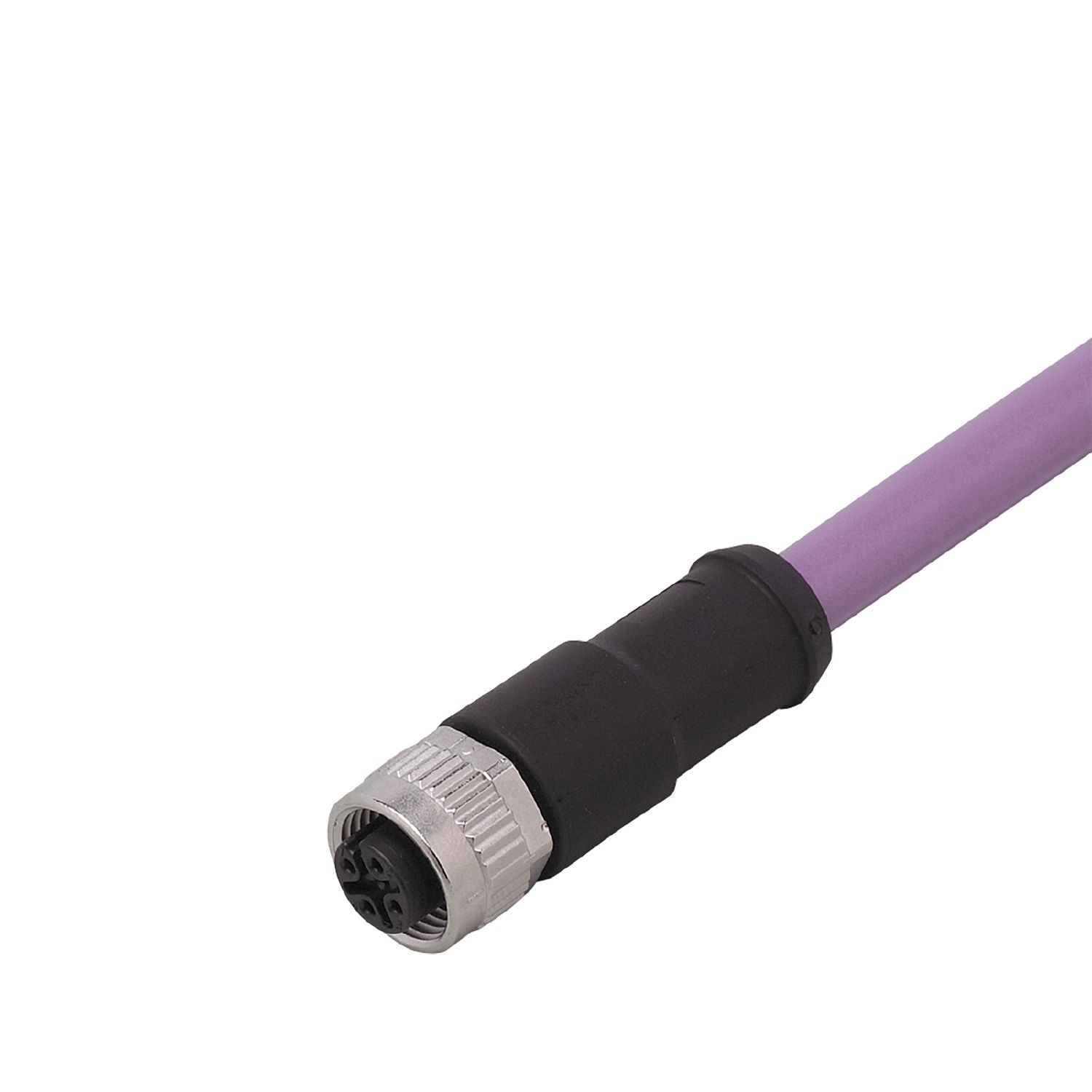

IFM E11596 - Connecting cable with socket ADOGH050MSA0002C02

Reliable connection technology for CAN bus participants.
High protection rating for the requirements of harsh industrial environments.
Wide operating temperature range.
Good electromagnetic compatibility thanks to shielded cable.
Gold-plated contacts for reliable electrical connections

Special feature	Halogen-free; Gold-plated contacts; Screened cable; Drag chain suitability
Application	CAN bus

Operating voltage [V]	< 30 AC / < 36 DC
Max. current load total [A]	4

Operating conditions

Ambient temperature [°C]	-20...80
Storage temperature [°C]	-40...80
Protection	IP 68

Weight [g]	163
Dimensions [mm]	14.5 x 14.5 x 43.9
Materials	PUR
Moulded-body material	PUR
Material nut	brass, nickel-plated
Drag chain suitability	yes
Drag chain suitability	bending radius for flexible use min. 10 x cable diameter bending radius for fixed installation min. 5 x cable diameter travel speed max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s² bending cycles > 1 Mio.

Pack quantity	1 pcs.

Electrical connection

	Cable: 2 m, PUR, Halogen-free, lilac, Ø 6.8 mm, shielded; RD / BK: 2 x 0.25 mm² (19 x Ø 0.13 mm ) + WH / BU: 2 x 0.34 mm² (19 x Ø 0.16 mm ) + screen: 1 x 0.34 mm² (19 x Ø 0.16 mm )

Electrical connection - socket

Connection	Connector: 1 x M12, straight; coding: A; Moulded body: PUR; Locking: brass, nickel-plated; Contacts: gold-plated

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E11596-01 — 18.01.2011 —
